Varenr.: 42arc001
På lager hos os
Download manual

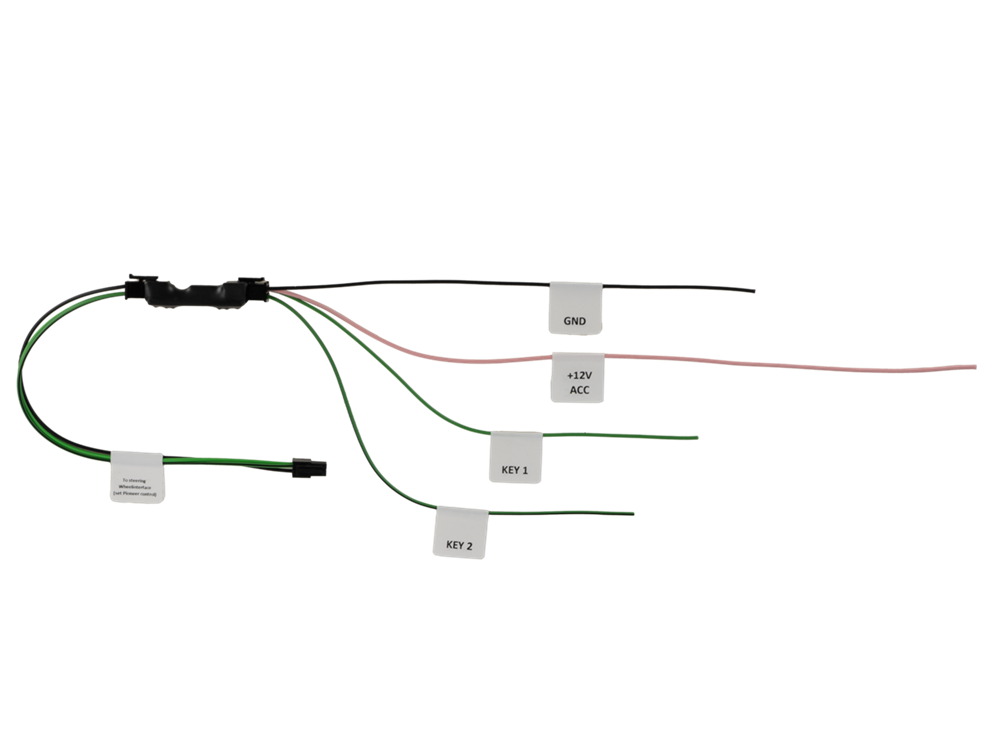

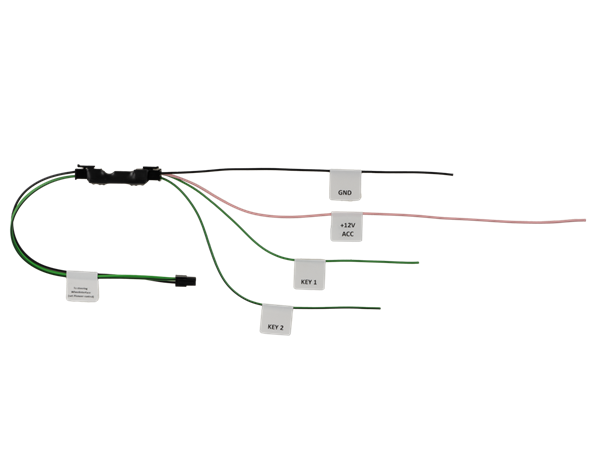

connector: 4 Pin Molex > Key1 / Key2 / GND
connection:
pink: +12V ignition clamp 15
This lead provides all available steering wheel remote control signals including scroll wheel functions for analog learning HU with two- or three-wire control.
The connection variant can be found in the manual of the HU manufacturer.
All connections tu the HU must be done before connecting the SWC interface to the vehicle.
The SWC function must also be programmed in a HU menu according to the HU manufacturer manual.
Check for function before final assembly.
HU with LFB Self-Learning function in the HU menu
Self-Learning function steps according to the operating instructions for the retrofit HU
Use case:
Blaupunkt 2010> Key1 / Key2 / (GND)
China HU Key1 / Key2 / (GND)
ESX Key1 / Key2
Garmin Key1 / Key2 / GND
Kenwood 2020> Key1 / Key2 / GND
Snooper Key1 / Key2
XZent Key1 / Key2 / GND
DIP switches 42cx401:
OFF/ON/OFF
