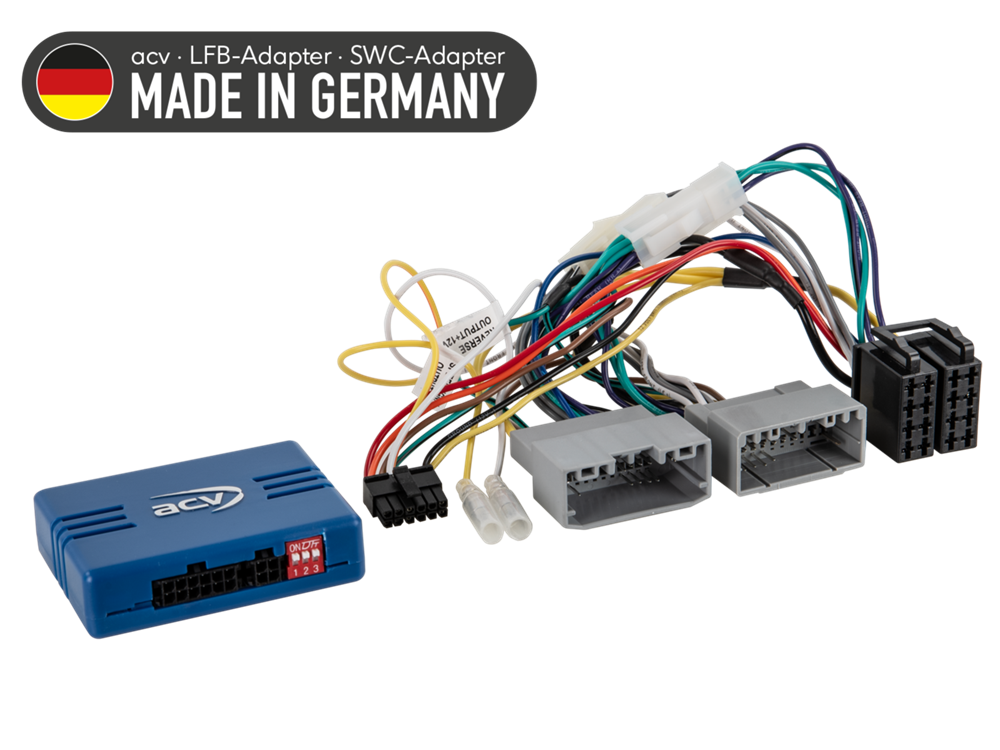

RAT INTERFACE TIL DIV. CHRYSLER / DODGE / JEEP Forside » MÆRKER » ACV Varenr.: 42a-1032-00c DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,1.249,00 DKK 13 Stk På lager hos vores leverandør Download manual Stalk adapter Chrysler / Dodge / Jeep / Lancia / Mitsubishi / VW Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU. Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions. Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically. Check if one of the listed OEM head units were installed originally. Also check vehicle functionality, vehicle settings and SWC functionality before final assembly. Note: CAN Bus connector: 22 Pin Chrysler // 24 Pin Chrysler blue/white: +12V switched amp remote vehicles with CAN Bus without +12V switched ignition clamp15 vehicles with/without OEM amplified system vehicles without Infinity OEM amplified system*/** vehicles without CAN Bus with +12V ignition** vehicles without blind spot blind spot not supported PDC not supported speed pulse not supported OEM amplified system fader not supported check telephone audio/Sat Nav Audio > change front/rear audio output connection if necessary Vehicle application: Chrysler Chrysler 200 2011 - 2014 Chrysler 300 06/2004 - 12/2010 Chrysler 300C (LX) 06/2004 - 11/2007 Chrysler 300C (LX) 11/2007 - 12/2010 Chrysler 300M 2002 - 06/2004 Chrysler Aspen 2007 - 2009 Chrysler Concorde 2002 - 2004 Chrysler Pacifica 2004 - 2008 Chrysler PT Cruiser (PT) 10/2001 - 04/2006 Chrysler PT Cruiser (PT) 01/2006 - 06/2009 Chrysler Sebring (RJ) 03/2001 - 04/2003 Chrysler Sebring (RJ) 04/2003 - 07/2007 Chrysler Sebring (RJ) 05/2007 - 08/2010 Chrysler Town&Country 2008 - 2016 Chrysler Voyager (GK/GY/RG) 03/2001 - 05/2004 Chrysler Voyager (GK/GY/RG) 05/2004 - 03/2008 Chrysler Voyager (RT) 03/2008 - 12/2010 Doge Dodge Avenger (JS) 06/2007 - 06/2009 Dodge Caliber (PK) 06/2006 - 12/2010 Dodge Caravan 2002 - 2015 Dodge Charger 2009 - 2012 Dodge Challenger 2008 - 2014 Dodge Dakota 2002 - 2011 Dodge Durango 2003 - 2009 Dodge Journey (JC) 06/2008 - 12/2010 Dodge Magnum 2008 - 2009 Dodge Nitro 2007 - 2011 Dodge RAM 2002 - 2008 Dodge RAM Dodge RAM 1500 2009 - 2011 Dodge RAM 2500 2010 - 2012 Dodge RAM 3500 2010 - 2012 Dodge RAM chassis cab 2011 Dodge RAM C/V Tradesman 2012 - 2015 Dodge Stratus 2002 - 2006 Dodge Viper (SR) 11/2003 - 04/2010 Jeep Jeep Commander (WH) 05/2008 - 11/2010 Jeep Compass (PK) 11/2006 - 06/2010 Jeep Compass (PK) 05/2011 - 12/2016 Jeep Grand Cherokee (WJ) 10/2001 - 06/2005 Jeep Grand Cherokee (WH) 06/2005 - 10/2007 Jeep Grand Cherokee (WH) 10/2007 - 12/2010 Jeep Grand Cherokee (WK) 12/2010 - 06/2013 Jeep Liberty 2002 - 2012 Jeep Patriot (PK) 2007 - 2017 Jeep Wrangler (TJ) 01/2003 - 03/2007 Jeep Wrangler (JK) 04/2007 - 02/2011 Jeep Wrangler (JK) 02/2011 - 07/2018 Lancia Lancia Voyager (RT) 11/2011 - 08/2015 Mitsubishi Mitsubishi Raider 2008 - 2009 VW VW Routan 2009 - 2015 Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. pink: +12V ignition clamp 15 1,5A max. orange: +12V illumination clamp 58 0,1A max. white: +12V reverse gear signal 1,5A max. yellow/green yellow/red: speed pulse signal SWC OEM amplified system fader not supported *vehicles 2002 - 2009 analog with Infinity OEM amplified system not supported *Infinity OEM amplifier bypass > speaker direct connection **SWC different US vehicles/Opel GT analog/CAN Bus > item: 42-uni-usa **connector ISO Harness Adapter Chrysler/Dodge/Jeep 22Pin > item: 1031-02 Optional: Rear View Camera Adapter Chrysler/Dodge/Jeep/Mitsubishi/VW > item: 771031-1030 Rear View Camera Adapter / RSE Adapter Chrysler/Dodge/Jeep > item: 771030-1030 HU application: Multilead different HU: 42arc100 Alpine 3,5mm jack connector: 42arc101 Blaupunkt 2010> 3,5mm jack connector: 42arc107 Blaupunkt 2010> Key1 / Key2 / (GND) connector: 42arc000 China Hu Key1 / Key2 / (GND): 42arc000 Clarion 3,5mm jack connector: 42arc104 Digital Dynamics single lead connector: 42arc108 ESX Key1 / Key2 connector: 42arc000 JVC 3,5mm jack connector42arc104 JVC single lead connector: 42arc105 Kenwood single lead connector: 42arc105 Kenwood 2017> 3,5mm jack connector: 42arc107 Kenwood 2020> Key1 / Key2 / GND connector: 42arc000 Pioneer 3,5mm jack connector: 42arc107 Snooper Key1 / Key2 connector: 42arc000 Sony 3,5mm jack connector: 42arc107 XZent single lead connector: 42arc108 Zenec single lead connector: 42arc108 General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness in a voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the radio connection cable voltage-free. 3: Connect the radio connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the radio connection cable: 1: Change configuration voltage-free 2: Reonnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Måske er du også interesseret i følgende produkter RADIOKABEL BLAUPUNKT/KINA/ESX TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER AVH/DMH/SPH 2022> TIL ACV CX401 OG 42a RATBETJENINGER DKK 79,00 RADIOKABEL UNIVERSALT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ALPINE TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL CLARION/JVC TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL JVC/KENWOOD >2021 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER/SONY TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ZENEC/XZENT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL BOSCH/BLAUPUNKT >2010 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95
