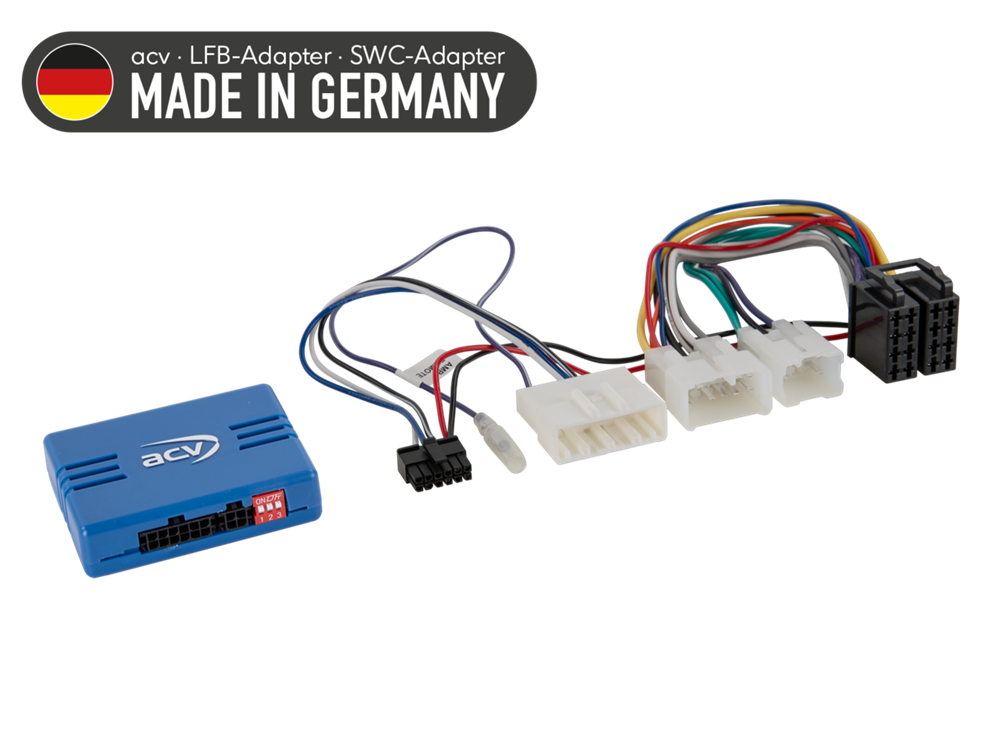

RAT INTERFACE TIL DIV TOYOTA Forside » MÆRKER » ACV Varenr.: 42a-1300-002 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,539,00 DKK På lager hos vores leverandør Download manual Er man i tvivl om hvilke stik der er i bilen så brug istedet 42a-1300-00c da den er med begge typer stik. Stalk Adapter Toyota Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU. Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions. Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically. Check if one of the listed OEM head units were installed originally. Also check vehicle functionality, vehicle settings and SWC functionality before final assembly. Note: analog connector: 10Pin / 6Pin / 28Pin Toyota for vehicles on year of construction limit > item: 42a-1300-00c with 20 Pin and 28 Pin wiring harness vehicles with Matsushita / Fujitsu Ten OEM HU vehicles without 360° OEM camera system Vehicle application: Toyota Auris (E150) 03/2010 - 01/2013 Toyota Avensis (T27) 01/2012 - 06/2015 Toyota Corolla (E170) 04/2014 - 12/2016 Toyota Corolla (E170) 12/2014 - 12/2018 Toyota Fortuner 2011 - 2015 Toyota Hilux (N25) 12/2011 - 08/2016 Toyota Hilux (AN1P) 11/2016 - 09/2020 Toyota Innova 2011 - 2015 Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016 Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015 Toyota RAV4 (XA3) 04/2009 - 05/2010 Toyota RAV4 (XA3) 05/2010 - 02/2013 Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016 Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018* Toyota Verso (AR2) 04/2009 - 01/2013 Toyota Verso (AR2) 04/2013 - 06/2018 Toyota Verso-S (XP12) 03/2011 - 07/2014 Toyota Verso-S (XP12) 07/2014 - 12/2015 Toyota Yaris (XP13) 11/2011 - 08/2014 Toyota Yaris (XP13) 09/2014 - 03/2017 Toyota Yaris (XP13) 04/2017 - 08/2020 The following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC *vehicles with 360° OEM camera system SWC Toyota different vehicles 10Pin/6Pin/28Pin/24Pin > item 42sty019 HU application: Multilead different HU: 42arc100 Alpine 3,5mm jack connector: 42arc101 Blaupunkt 2010> 3,5mm jack connector: 42arc107 Blaupunkt 2010> Key1 / Key2 / (GND) connector: 42arc000 China Hu Key1 / Key2 / (GND): 42arc000 Clarion 3,5mm jack connector: 42arc104 Digital Dynamics single lead connector: 42arc108 ESX Key1 / Key2 connector: 42arc000 JVC 3,5mm jack connector42arc104 JVC single lead connector: 42arc105 Kenwood single lead connector: 42arc105 Kenwood 2017> 3,5mm jack connector: 42arc107 Kenwood 2020> Key1 / Key2 / GND connector: 42arc000 Pioneer 3,5mm jack connector: 42arc107 Pioneer 3,5mm jack connector AVH / DMH / SPH 2021/2022>: 42arc1072 Snooper Key1 / Key2 connector: 42arc000 Sony 3,5mm jack connector: 42arc107 XZent single lead connector: 42arc108 Zenec single lead connector: 42arc108 General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness in a voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the radio connection cable voltage-free. 3: Connect the radio connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the radio connection cable: 1: Change configuration voltage-free 2: Reonnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Der skal bruges et af nedennævnte kabler Måske er du også interesseret i følgende produkter RADIOKABEL BLAUPUNKT/KINA/ESX TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER AVH/DMH/SPH 2022> TIL ACV CX401 OG 42a RATBETJENINGER DKK 79,00 RADIOKABEL UNIVERSALT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ALPINE TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL CLARION/JVC TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL JVC/KENWOOD >2021 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER/SONY TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ZENEC/XZENT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RAT INTERFACE TIL LEXUS/TOYOTA MULTI SÆT DKK 629,00 RADIOKABEL BOSCH/BLAUPUNKT >2010 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95
