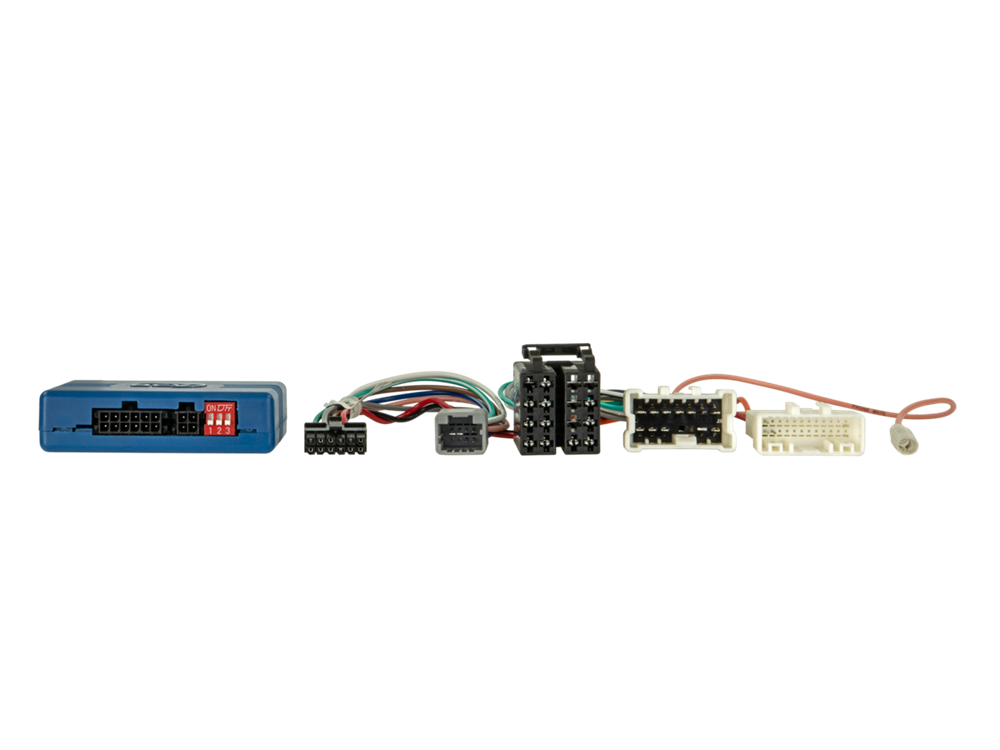

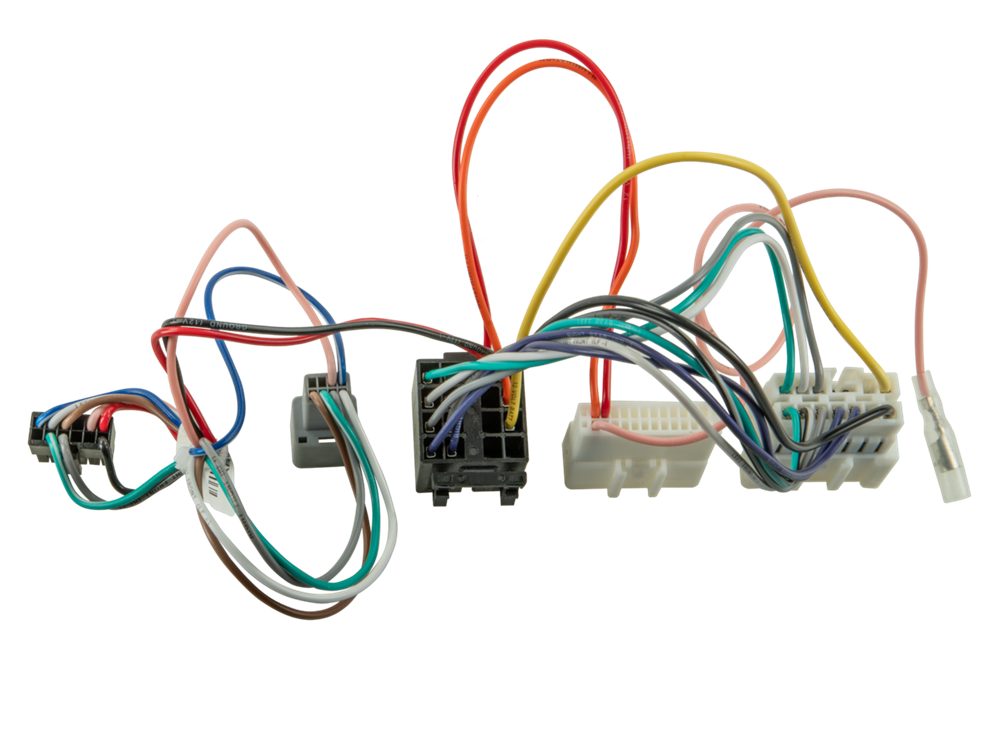

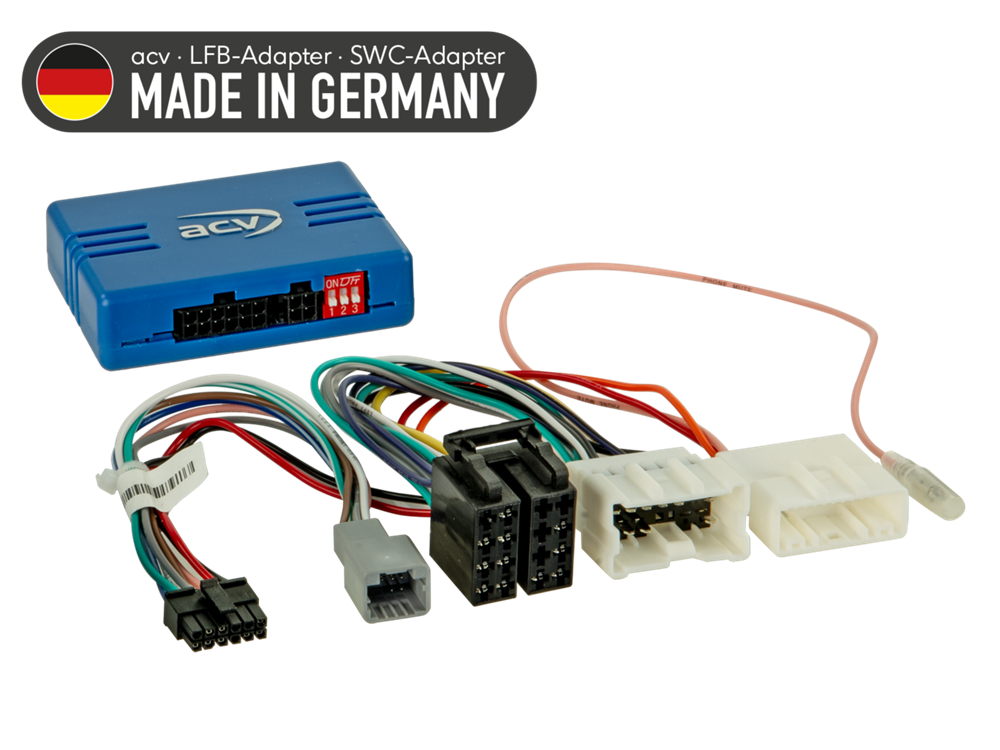

RAT INTERFACE TIL DACIA/FIAT/MERCEDES/NISSAN/OPEL/RENAULT MED 12PIN-24PIN-6PIN

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
analog

connector: 12 Pin / 24 Pin / 6 Pin Dacia

customize the coding of the grey OEM connector with workshop tools > if necessary

vehicles 2018> red +12V ignition supply clamp 15 fusebox fused > if necessary
vehicles 2018> interface red +12V ignition supply clamp 15 fusebox fused > if necessary

vehicles Opel Vivaro with Navi 50 Intellilink OEM Sat Nav / OEM rear view camera:
vehicles Fiat / Nissan / Renault with ANATEL / LG Media Nav / Media Nav Evo OEM Sat Nav / OEM rear view camera:

check 24 pin connector assignment by measuring with OEM HU before installation:
Voltage dropper12 Volt > 6 Volt 1.5 A max. > item: 30.3520-04

Pin 9: +6V power supply OEM camera
Pin 21: GND OEM camera
Pin 10: Video +
Pin 22: Video -

vehicles Vivaro with Navi 80 Intellilink OEM Sat Nav:
vehicles Renault with R-Link Sat Nav:

Vehicle application:

Dacia
Dacia Dokker (SD) 12/2012 - 03/2017
Dacia Dokker (SD) 03/2017 - 11/2021****
Dacia Dokker Stepway (SD) 11/2014 - 03/2017****
Dacia Dokker Stepway (SD) 03/2017 - 11/2020
Dacia Duster (SD) 11/2013 - 12/2017
Dacia Duster (SR) 01/2018 - 07/2021****
Dacia Duster (SR) 09/2021 - 2024*****
Dacia Lodgy (SD) 06/2012 - 06/2021****
Dacia Lodgy Stepway (SD) 11/2014 - 06/2021****
Dacia Logan MCV (SD) 07/2013 - 09/2020****
Dacia Sandero (SD) 01/2013 - 09/2020****
Dacia Sandero Stepway (SD) 01/2013 - 09/2020****

Fiat
Fiat Talento (ZAF 296) 07/2016 - 10/2021*

Mercedes
Mercedes Citan (W415) 10/2012 - 12/2020

Nissan
Nissan NV300 (4/J4) 11/2016 - 06/2019*
Nissan NV300 (4/J4) 06/2019 - 09/2021*
Nissan NV300 (4/J4) 05/2021 - 09-2021*
Nissan NV400 (M) 07/2014- 07/2020
Nissan NV400 (M) 07/2020 - 12/2021
Nissan Primastar (4/F4/J4) 01/2011 - 05/2015*

Opel
Opel Movano B (X62) 10/2013 - 09/2019**
Opel Movano B (X62) 10/2019 - 08/2021**
Opel Vivaro B (X82) 06/2014 - 01/2019**

Renault
Renault Captur (R) 06/2013 - 03/2017*
Renault Captur (R) 03/2017 - 12/2019
Renault Clio IV (X98) 11/2012 - 06/2016**
Renault Clio IV (X98) 06/2016 - 12/2020**
Renault Kangoo (W) 03/2013 - 12/2020
Renault Master III (M) 09/2014 - 08/2018*
Renault Master III Z.E. (M) 06/2018 - 06/2020*
Renault Master III (M) 10/2019 - 2024*
Renault Trafic III (J/JL) 09/2014 - 07/2019*
Renault Trafic III (J/JL) 09/2019 - 03/2022*
Renault Twingo (N) 01/2012 - 07/2014***

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Media Nav / Media Nav Evo OEM Sat Nav
*vehicles with 1-DIN OEM HU black front with AUX/USB 2 x chrome rotary knob
**vehicles with Navi 50 Intellilink OEM Navigation with front AUX/USB / Media Nav OEM Sat Nav
**vehicles with 1-DIN OEM HU black with front AUX/USB 2 x chrome rotary knob
***vehicles with 1-DIN OEM HU black with front USB
Der skal bruges et af nedennævnte kabler
