Varenr.: 42a-1300-001
På lager hos vores leverandør ![](/images/katlogo/pdf6.bmp)
Download manual
Er man i tvivl om hvilke stik der er i bilen så brug istedet 42a-1300-00c da den er med begge typer stik.

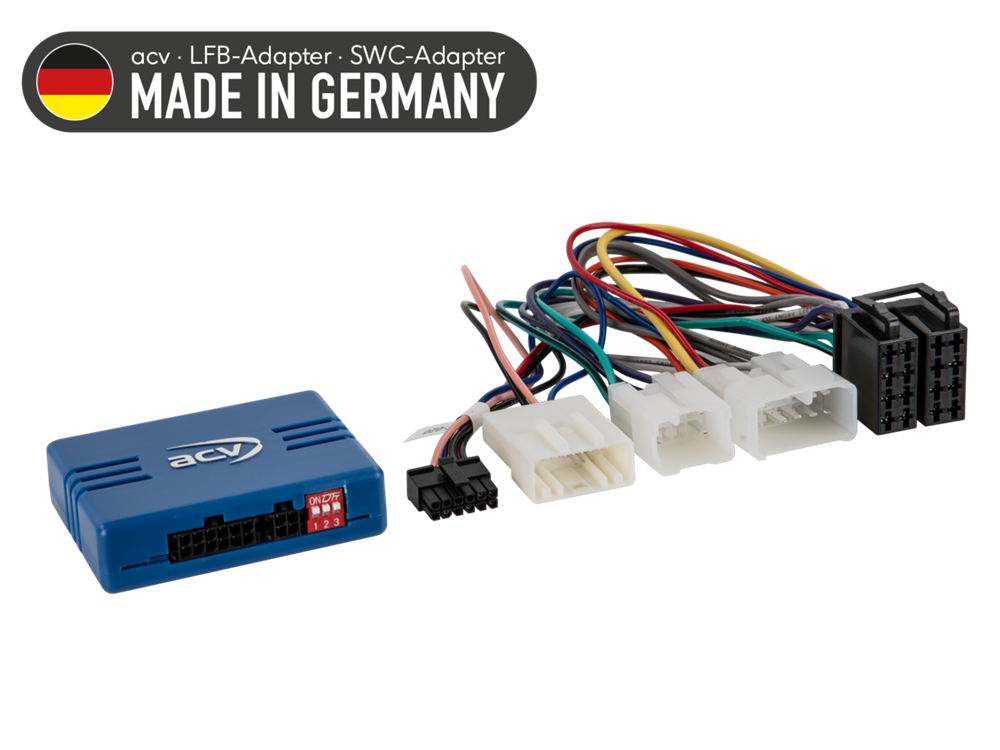

Stalk Adapter Lexus / Toyota
Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.
Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Check if one of the listed OEM head units were installed originally.
Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:
analog
connector: 10 Pin / 6 Pin / 20 Pin Toyota
for vehicles on year of construction limit > item: 42a-1300-00c with 20 Pin and 28 Pin wiring harness
vehicles with Matsushita / Fujitsu Ten OEM HU
vehicles without JBL / JBL Synthesis / Mark Levinson OEM amplified system
Vehicle application:
Lexus
Lexus IS (XE1) 10/2001 - 11/2005
Lexus IS (XE2) 12/2005 - 11/2008
Lexus IS Cabriolet (XE2) 07/2009 - 11/2010
Lexus IS (XE2) 11/2008 - 11/2010
Lexus IS Cabriolet (XE2) 11/2010 - 10/2013
Toyota
Toyota 4Runner 2002 - 2009
Toyota Auris (E150) 07/2007 - 03/2010
Toyota Avanza 2003 - 2011
Toyota Avensis (T25) 01/2003 - 06/2006
Toyota Avensis (T25) 06/ 2006 - 01/2009
Toyota Avensis (T27) 01/2009 - 12/2011
Toyota Camry 2007 - 2011
Toyota Celica (T23) 10/1999 - 01/2006
Toyota Corolla (E120) 01/2002 - 07/2004
Toyota Corolla (E120) 07/2004 - 02/2007
Toyota Corolla Verso (R1) 05/2004 - 06/2007
Toyota Corolla Verso (R1) 07/2007 - 04/2009
Toyota Estima 2006 - 2016
Toyota FJ Cruiser 2001 - 2007
Toyota Hiace (H1) 11/2006 - 10/2010
Toyota Hilux (N25) 10/2005 - 11/2008
Toyota Hilux (N25) 11/2008 - 12/2011
Toyota Innova 2006 - 2015
Toyota Landcruiser (J12) 01/2003 - 01/2009
Toyota Matrix 2003 - 2014
Toyota MR2 (W3) 04/2000 - 03/2003
Toyota Prado 2003 - 2009
Toyota Previa 2006 - 2019
Toyota Prius ZVW30/ZVW35 (XW3) 06/2009 - 04/2012
Toyota RAV4 (XA2) 10/2000 - 12/2003
Toyota RAV4 (XA2) 12/2003 - 01/2006
Toyota RAV4 (XA3) 03/2006 - 04/2009
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota Yaris (XP9) 01/2006 - 01/2009
Toyota Yaris (XP9) 01/2009 - 10/2011
Toyota Vios 2003 - 2007
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
SWC
HU application:
Multilead different HU: 42arc100
Alpine 3,5mm jack connector: 42arc101
Blaupunkt 2010> 3,5mm jack connector: 42arc107
Blaupunkt 2010> Key1 / Key2 / (GND) connector: 42arc000
China Hu Key1 / Key2 / (GND): 42arc000
Clarion 3,5mm jack connector: 42arc104
Digital Dynamics single lead connector: 42arc108
ESX Key1 / Key2 connector: 42arc000
JVC 3,5mm jack connector42arc104
JVC single lead connector: 42arc105
Kenwood single lead connector: 42arc105
Kenwood 2017> 3,5mm jack connector: 42arc107
Kenwood 2020> Key1 / Key2 / GND connector: 42arc000
Pioneer 3,5mm jack connector: 42arc107
Pioneer 3,5mm jack connector AVH / DMH / SPH 2021/2022>: 42arc1072
Snooper Key1 / Key2 connector: 42arc000
Sony 3,5mm jack connector: 42arc107
XZent single lead connector: 42arc108
Zenec single lead connector: 42arc108
General installation instructions:
Connection and connection sequence:
1: Check settings and configuration of the interface voltage-free.
2: Check configuration of the radio connection cable voltage-free.
3: Connect the radio connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connection of the entire installation on the vehicle power supply connection at the end
6: Configuration of the retrofit HU according to the operating instructions of the retrofit HU Steering wheel remote control/camera/FSE/antenna phantom power and others
Changes to the configuration of the interface and the radio connection cable:
1: Change configuration voltage-free
2: Reonnection see above 5 and 6
In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6
Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler.
Connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty
Reimported vehicles or vehicles with different software may be incompatible in functions.
Der skal bruges et af nedennævnte kabler
