Varenr.: 42a-1190-001
Bygges først ved bestilling. Op til 1 måneds levering.
Beløbet hæves som forudbetaling og kan ikke returneres.
14 dages retur ret frasiges derfor også.

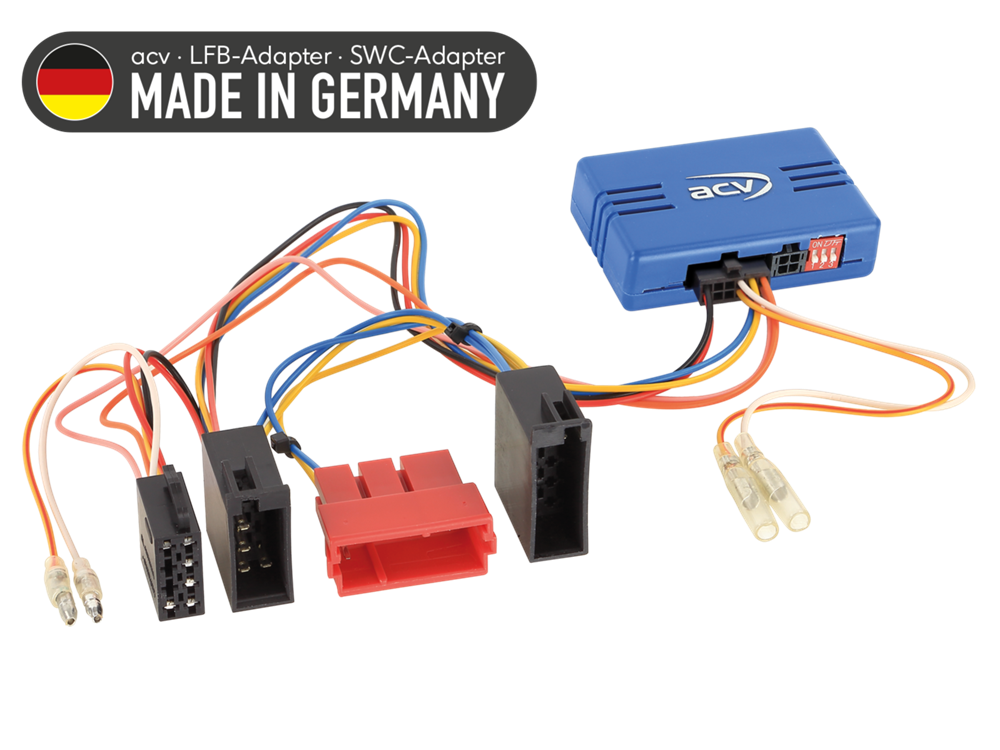

Download manual
Note:
CAN Bus
connector: ISO / 10 Pin ISO / Mini ISO Mercedes
check dip switches for retrofit HU
vehicles Mercedes with Audio 5 / Audio 10 1-DIN OEM HU
vehicles Mercedes with Audio 30 APS 1-DIN OEM Sat Nav
vehicles Mercedes with Comand 2.0 OEM Sat Nav
vehicles VW Crafter with RCD 2001 1-DIN OEM HU
vehicles Mercedes / VW with open dash > code vehicle to OEM HU if necessary
vehicles Mercedes / VW with open dash > check connection and assignment by measuring before installation with OEM HU:
incorrect connection damages the interface
vehicles with different comfort interior CAN bus connection:
brown-red twisted: CAN high
brown twisted: CAN low
CAN Bus in CAN Bus distributor under sill cover
CAN Bus at climatronic
CAN Bus in Mini ISO connector: Pin 2 CAN high / Pin 1 CAN low
CAN Bus in 8 Pin power connector: Pin 7 CAN high / Pin 6 CAN low
vehicles with Comand 2.0 OEM Sat Nav:
CAN Bus in 18 Pin AMP connector: Pin 9 CAN high / Pin 8 CAN low / not Robert Bosch CAN
OEM HU with ISO block connector:
ISO extension harness speaker 10cm> item: 1322-02
vehicles with 10 Pin ISO / ISO speaker connector OEM amplified system without B2B optical system OEM amplified system:
Active system adapter different vehicles ISO>ISO > item: 13-1190-50
Vehicle application:
Mercedes A-class (W169) 10/2004 - 04/2012
Mercedes A-class (C169) 11/2004 - 07/2011
Mercedes B-class (T245) 06/2005 - 06/2011
Mercedes C-class (W203) 03/2000 - 01/2005
Mercedes CLK-class (C208) 07/1999 - 03/2003
Mercedes CLK-class (C209) 03/2002 - 05/2005
Mercedes E-class (W210) 06/1999 - 12/2002
Mercedes SL-class (R230) 08/2001 - 02/2006
Mercedes SLR (C199) 12/2003 - 12/2009
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
Mercedes Vito (W447) 10/2014 - 02/2019*
Mercedes Vito (W447) 05/2019 - 01/2024*
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal
SWC
*vehicles with +12V continuous current cut-off clamp 30 connect fuse box fused
Der skal bruges 1 af nedenstående kable.
