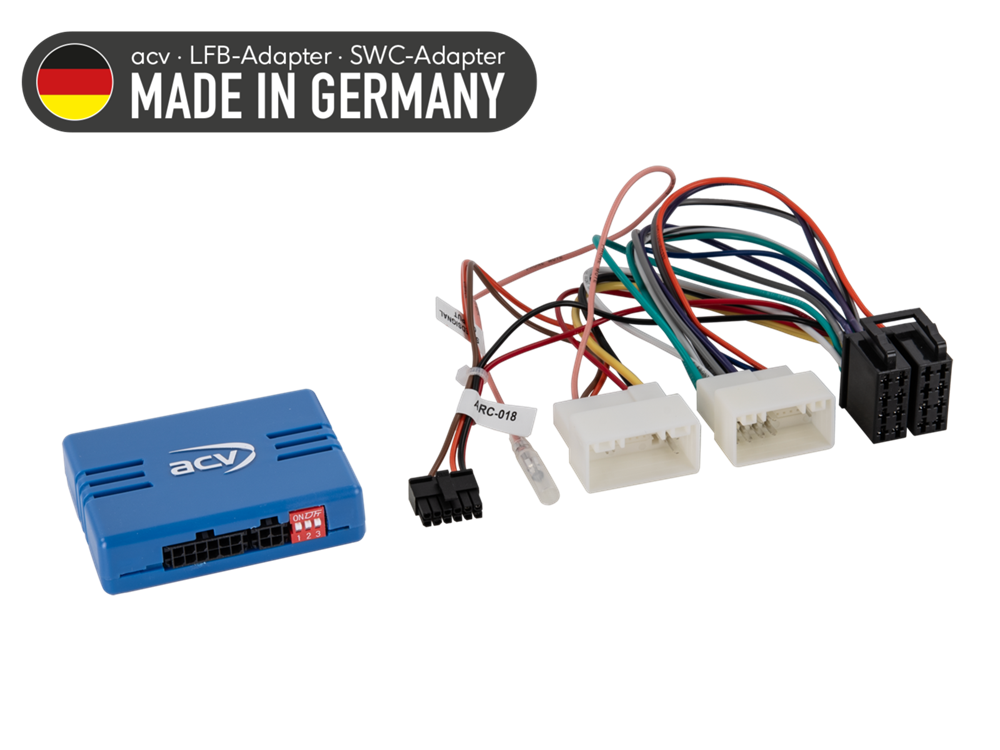

RAT INTERFACE TIL HYUNDAI/KIA M/24 OG 18 PIN STIK Forside » MÆRKER » ACV Varenr.: 42a-1180-004 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,549,00 DKK 3 Stk På lager hos vores leverandør Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Stalk Adapter Hyundai / Kia Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU. Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions. Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically. Check if one of the listed OEM head units were installed originally. Also check vehicle functionality, vehicle settings and SWC functionality before final assembly. Note: analog connector: 24 Pin / 18 Pin Hyundai for vehicles on year of construction limit > item: 42a-1180-00c with ISO/Mini ISO and 24Pin/18Pin wiring harness vehicles without OEM amplified system vehicles without OEM Sat Nav vehicles with different pin assignments and vehicles with OEM Sat Nav: check the pin assignment before connecting to avoid faults or defects on the vehicle or the retrofit device diagnostic LED: blue constant > Interface active +12V ignition power supply present red > steering wheel remote control button function recognised Vehicle application: Hyundai Hyundai Azera 2011 - 2017 Hyundai Elantra 2011 - 2015 Hyundai H350 06/2015 -12/2019 Hyundai i10 (IA) 11/2013 - 12/2016 Hyundai i10 (IA) 01/2017 - 12/2019* Hyundai i20 (GB) 12/2014 - 06/2018* Hyundai i20 (GB) 07/2018 -09/2020* Hyundai i30 (GD/GDH) 03/2012 - 05/2015 Hyundai i30 (GD/GDH) 05/2015 - 05/2017 Hyundai i40 (VF) 09/2011 - 05/2015 Hyundai i40 (VF) 05/2015 - 08/2018* Hyundai i40 (VF) 10/2018 - 07/2019* Hyundai i45 2009 - 2014 Hyundai i800 2007 - 2021* Hyundai ix35 (EL) 03/2010 - 09/2013 Hyundai ix35 (EL) 09/2013 - 07/2015 Hyundai ix45 2013 - 2018* Hyundai Santa-Fe (DM) 10/2012 - 11/2015 Hyundai Santa-Fe (DM) 12/2015 - 08/2018* Hyundai Sonata (YF) 2009 - 2014 Hyundai Tucson (TL) 04/2010 - 06/2015 Hyundai Tucson (TL) 07/2015 - 07/2018** Hyundai Tucson (TL) 07/2018 - 12/2020** Kia Kia Cee'd (JD) 06/2012 - 09/2015 Kia Forte 2012 - 2016 Kia Optima (TF) 06/2012 - 10/2013 Kia Optima (TF) 10/2013 - 10/2015 Kia Picanto (TA) 09/2011 - 04/2015 Kia Picanto (TA) 04/2015 - 03/2017 Kia Pro-Cee'd (JD) 07/2013 - 09/2015 Kia Rio (UB) 09/2011 - 01/2015 Kia Soul (AM) 09/2011 - 03/2014 Kia Soul (PS) 03/2014 - 11/2016 Kia Sorento (XM) 10/2012 - 03/2015 Kia Sportage (SL) 08/2010 - 03/2014 Kia Sportage (SL) 03/2014 - 01/2016 Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC *vehicles 2016> without OEM Sat Nav **vehicles with Continental OEM Sat Nav General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness in a voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the radio connection cable voltage-free. 3: Connect the radio connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the radio connection cable: 1: Change configuration voltage-free 2: Reonnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Der skal bruges et af nedennævnte kabler Måske er du også interesseret i følgende produkter RADIOKABEL BLAUPUNKT/KINA/ESX TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER AVH/DMH/SPH 2022> TIL ACV CX401 OG 42a RATBETJENINGER DKK 79,00 RADIOKABEL UNIVERSALT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ALPINE TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL CLARION/JVC TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL JVC/KENWOOD >2021 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL PIONEER/SONY TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL ZENEC/XZENT TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95 RADIOKABEL BOSCH/BLAUPUNKT >2010 TIL ACV CX401 OG 42a RATBETJENINGER DKK 39,95
