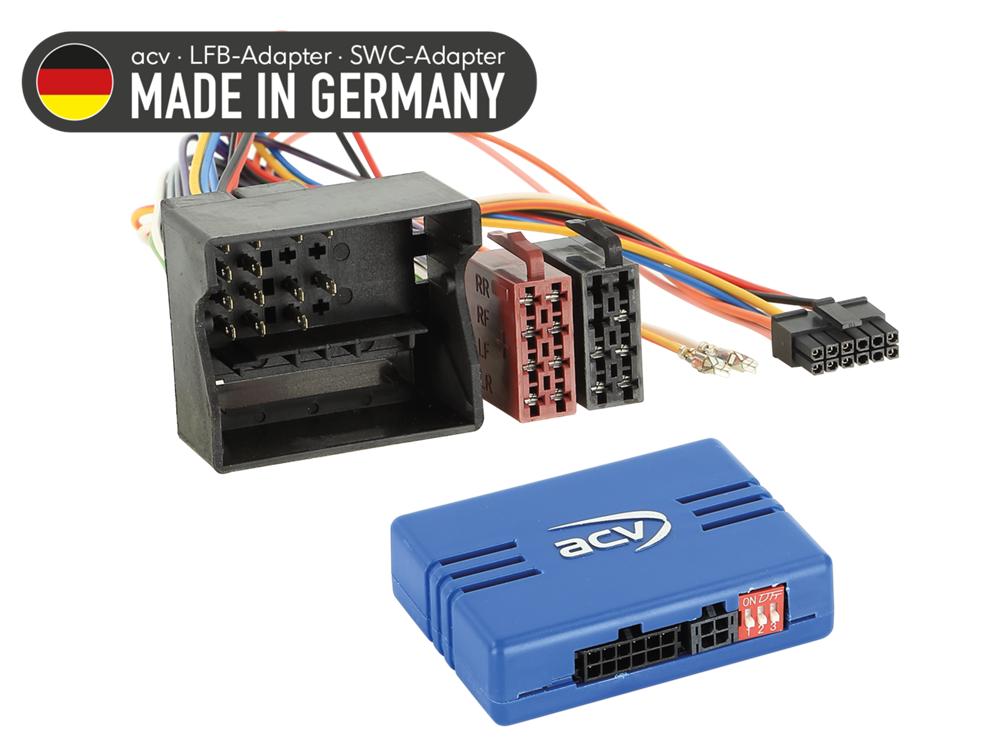

RAT INTERFACE MERCEDES/SMART/VW MED QUADLOCK

Note:

CAN Bus

connector: 40 Pin Quadlock Mercedes > item: 42cx28

check dip switches for retrofit HU

vehicles Mercedes with Audio 20 2-DIN OEM HU
vehicles Mercedes with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav******
vehicles Mercedes Citan 420 (W420) with Browse 1-DIN OEM HU
vehicles Mercedes Sprinter (W907/W910) with Browse 1-DIN OEM HU
vehicles Mercedes Sprinter (W907/W910) with open dash
vehicles Mercedes Vito (W447) with Audio 10 / Audio 15 OEM HU
vehicles Mercedes Vito (W447) with Audio 30 / Audio 40 OEM Sat Nav

vehicles VW Crafter with RCD 3002 OEM HU
vehicles VW Crafter with RNS 4001 / RNS 5001 OEM Sat Nav

vehicles Mercedes with Harman Kardon OEM amplified system:
Active system adapter Mercedes/Porsche MOST>RCA ISO > item: 13-1190-52
Active system adapter Mercedes different vehicles MOST>RCA > item: 13-1190-53

vehicles Mercedes/VW without open dash
vehicles Mercedes/VW without 1-DIN OEM HU

vehicles Mercedes/VW with open dash / 1-DIN OEM HU:
SWC Mercedes different vehicles ISO/10 Pin ISO/Mini ISO > item: 42a-1190-001

diagnostic LED:
blue flashing > CAN Bus search
blue constant > CAN Bus active
red > +12V ignition current active

Vehicle application:

BMW
BMW 1er (E81/E82/E87/E88) 03/2004 - 10/2013**/****
BMW 3er (E90/E91/E92/E93) 03/2005 - 10/2013**/****

Mercedes
Mercedes A-class (C169/W169) 10/2004 - 04/2008
Mercedes A-class (C169/W169) 06/2008 - 06/2012
Mercedes B-class (T245) 07/2005 - 04/2008
Mercedes B-class (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes C-class (C204/S204/W204) 08/2007 - 01/2011**
Mercedes C-class (C204/S204/W204) 03/2011 - 10/2015**
Mercedes Citan 420 (W420) 10/2021 - 2024
Mercedes CLC-class (CL203) 06/2008 - 02/2011
Mercedes CLK-class (W209) 04/2005 - 01/2010
Mercedes CLS-class (C219) 04/2008 - 09//2010
Mercedes E-class (S211/W211) 03/2008 - 01/2009
Mercedes E-class (A212/C212/S212/W204) 02/2009 - 03/2013**
Mercedes G-class (W463) 04/2007 - 06/2008
Mercedes G-class (W164) 09/2008 - 06/2012
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (W164) 07/2005 - 04/2008
Mercedes M-class (W164) 10/2008 - 07/2011
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-class (W251) 09/2005 - 05/2007
Mercedes R-class (W251) 05/2007 - 05/2010
Mercedes SL-class (R230) 03/2006 - 02/2008
Mercedes SL-class (R230) 04/2008 - 12/2011
Mercedes SLK-class (R171) 04/2008 -03/2011Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Sprinter (W907/W910) 06/2018 - 12/2020*/**
Mercedes Sprinter (W907/W910) 11/2019 - 2024*/**
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
Mercedes Vito (W447) 10/2014 - 02/2019*/**/***
Mercedes Vito (W447) 05/2019 - 2024*/**/***

Smart
Smart For Four (W454) 01/2004 - 04/2007*****

VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016**

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

*vehicles with E-call > item: 1424-27-0
**vehicles with +12V power down funktion > +12V continuous current clamp 30 batterie fused
***vehicles with Audio 10 OEM HU only volume funktion supported
***vehicles encode to Audio 15 OEM HU if possible
****vehicles with PDC rear > item: 42cxpdc
*****vehicles with Comand OEM Sat Nav 40 Pin Quadlock
******time setting not supported > code vehicle to Audio 20 OEM HU if possible
