RADIOKABEL PIONEER AVH/DMH/SPH 2022> TIL ACV CX401 OG 42a RATBETJENINGER

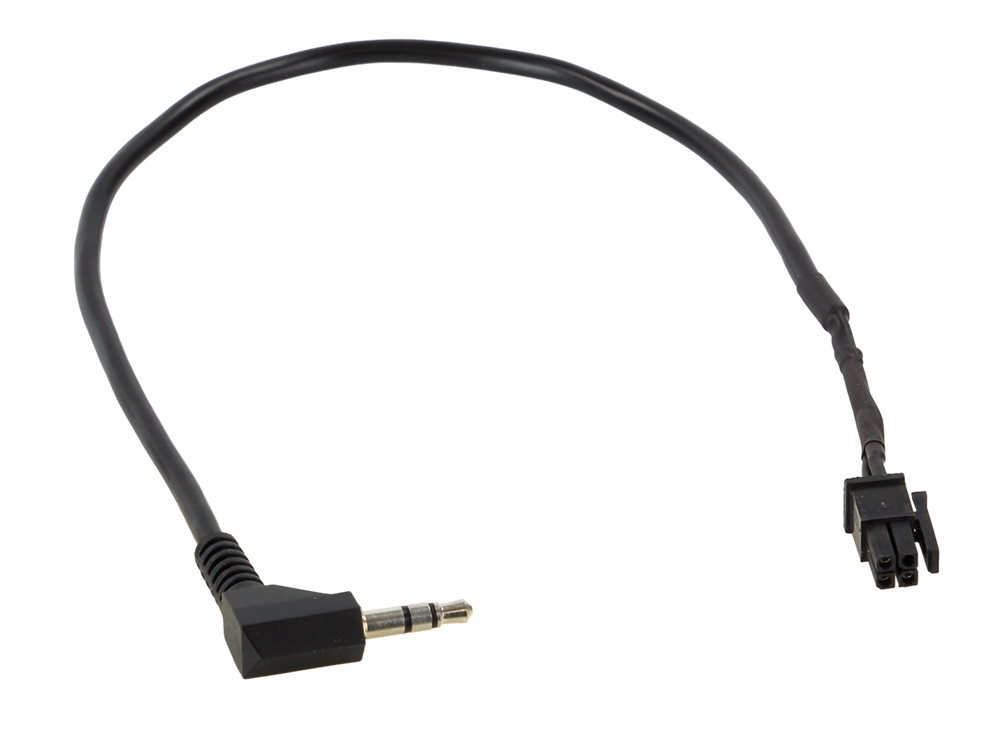

Radiokabel til PIONEER AVH/DMH/SPH med blank bagside kun 2022> Med 3,5mm jack, med 4 pin micro molex. passer til cx401 og 42a ratbetjeninger. Husk at indstille dipswitch på ratbetjeningen

Note:

connector: Molex Micro Fit plug 4Pin(f) > 3,5mm Jack

SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip swiches (OFF/ON/ON)

Note:

Jack ring red wire > BAT43 Schottky diode/blocking diode 0.2A with cathode/ring side to Micro Fit plug

Use case:

Pioneer 3,5mm Jack connector

HU application:

Pioneer units 2021/2022> with flat glossy metallic back panel

Pioneer AVH
Pioneer AVH-A240BT
Pioneer AVH-A240DAB

Pioneer DMH
Pioneer DMH-A240BT
Pioneer DMH-A241BT
Pioneer DMH-A340DAB
Pioneer DMH-A245BT

Pioneer SPH
Pioneer SPH-DA160DAB
Pioneer SPH-DA360DAB

DIP switches 42cx401:

Pioneer > OFF/ON/ON
