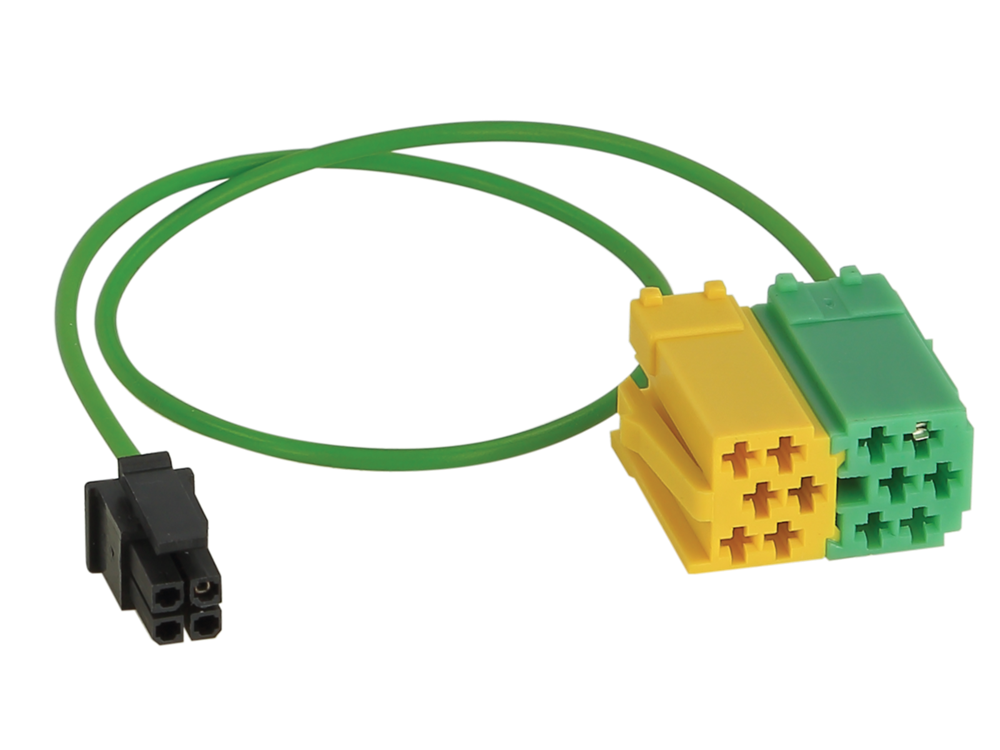

RADIOKABEL BOSCH/BLAUPUNKT >2010 TIL ACV CX401 OG 42a RATBETJENINGER

Radiokabel til Bosch-Blaupunkt >2010 med mini iso, med 4 pin micro molex. passer til cx401 og 42a ratbetjeninger. Husk at indstille dipswitch på ratbetjeningen

Radio specific lead 42a / 42cx401 > Clarion / JVC

HU manufacturers use different variants for connecting a steering wheel remote control interface.

Depending on the manufacturer and device, single-cable controls, two-cable and multi-cable controls as well as jack controls can be used.

The connection variant can be found in the manual of the HU manufacturer.

All connections must be done before connecting the interface to the vehicle.

If necessary, the SWC function must also be programmed in a HU menu according to the HU manufacturer manual.

Check for function before final assembly.

Note:

connector: 4 Pin Molex > Mini ISO

SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip switches (ON/OFF)

Use case:

Blaupunkt 2010>Mini ISO connector

DIP switches 42cx401:

Blaupunkt > ON/OFF/OFF
