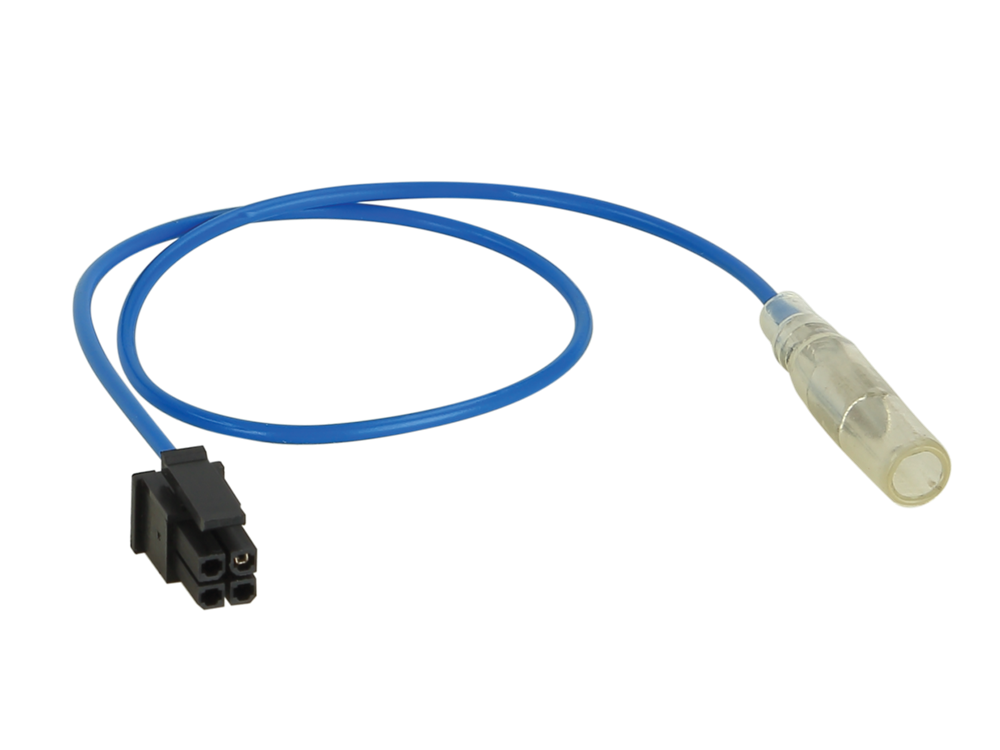

RADIOKABEL ZENEC/XZENT TIL ACV CX401 OG 42a RATBETJENINGER

Radiokabel til ZEBEC, XZENT og DIGITAL DYBAMICS med 1 løs ledning, med 4 pin micro molex. passer til cx401 og 42a ratbetjeninger. Husk at indstille dipswitch på ratbetjeningen

Radio specific lead 42a / 42cx401 > Digital Dynamic / XZent / Zenec

HU manufacturers use different variants for connecting a steering wheel remote control interface.

Depending on the manufacturer and device, single-cable controls, two-cable and multi-cable controls as well as jack controls can be used.

The connection variant can be found in the manual of the HU manufacturer.

All connections must be done before connecting the interface to the vehicle.

If necessary, the SWC function must also be programmed in a HU menu according to the HU manufacturer manual.

Check for function before final assembly.

Note:

connector: 4 Pin Molex > single lead

SWC radio specific lead 42cx401 SWC interface 42a-xxxx-xxx
dip switches (ON/OFF)

Use case:

Digital Dynamics single lead connector
XZent single lead connector
Zenec single lead connector

DIP switches 42cx401:

Digital > Dynamics OFF/OFF/ON
Xcent > OFF/OFF/ON
Zenec > OFF/OFF/ON
