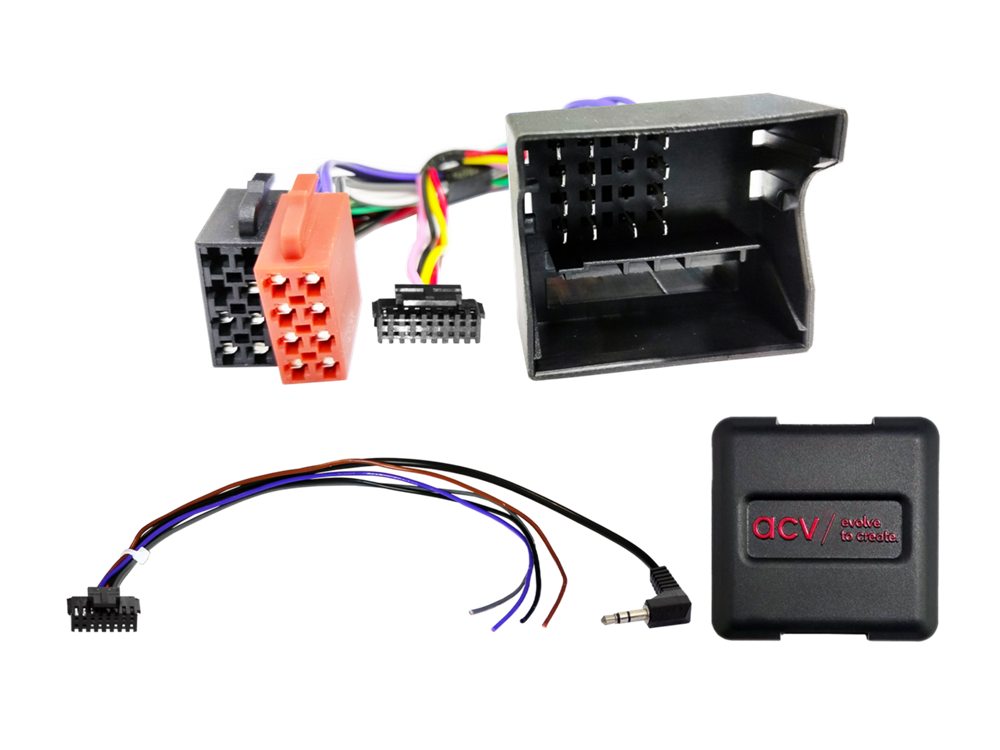

RATBETJENINGS INTERFACE BMW/MINI 1998> MED QUADLOCK (ALL INCL)

Note:

I Bus

connector: 40Pin Quadlock BMW

connector: OEM SWC > 3,5mm Jack / loose wire
for unknown BMW connector variant > item: 42xbm00c with 17 Pin and 40 Pin Quadlock wiring harness

vehicles with Business OEM HU
vehicles without Professional OEM Sat Nav*
vehicles without OEM amplified system**

OEM units must be disconnected > CD-Changer/TV-Tuner/Phone module

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

BMW 3er (E46) 07/1998 - 02/2007
BMW 5er (E39) 09/2000 - 05/2004
BMW X3 (E83) 02/2004 - 08/2010
BMW X5 (E53) 03/2000 - 11/2006
BMW Z4 (E85) 03/2002 - 08/2008***

BMW Mini (R50/R53) 06/2001 - 11/2006****
BMW Mini (R52) 07/2004 - 08/2008

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with Professional OEM Sat Nav BMW extension Quadlock(f) > Quadlock(m)/antenna 6.5m: CT20BM06
**vehicles with OEM amplified system (no DSP/Harman Kardon) SWC BMW 3er/5er/7er/X3/X5/Z4/ Mini Quadlock/Amp > item: 42xbm007
***vehicles with soft top
****vehicles (R53) with Harman Kardon OEM amplified system SWC BMW Mini (R50/R52/R53) 2001-2008 iBus Amp Harman Kardon > item: 29-628HKM
