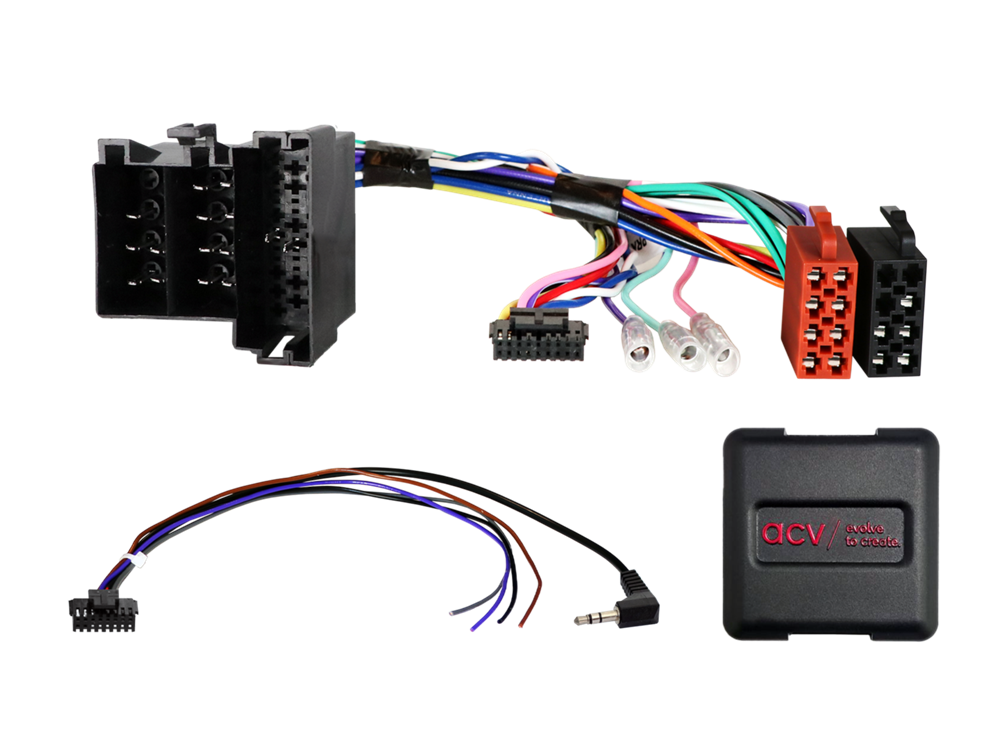

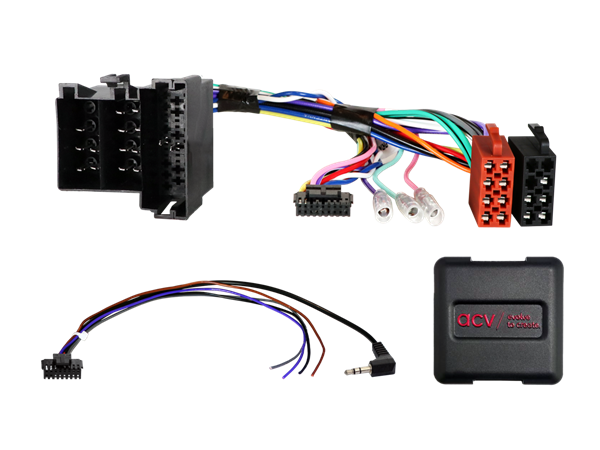

RATBETJENINGS INTERFACE ALFA ROMEO GT/147 2004 > 2010 (ALL INCL)

Note:

analog SWC
CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with CAN Bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO plug Pin 10/11/12
vehicles with Blue&Me > silverbox module must remain installed

vehicles with BOSE OEM amplified system*
+12V Amp amplified systen remote > connector C1 Pin 6

vehicles without +12V ignition clamp 15

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*Active system adapter Alfa Romeo/Lancia ISO>ISO > item: 13-1001-50
*Aktivsystemadapter verschiedene Fahrzeuge ISO>ISO > item: 13-1190-50
