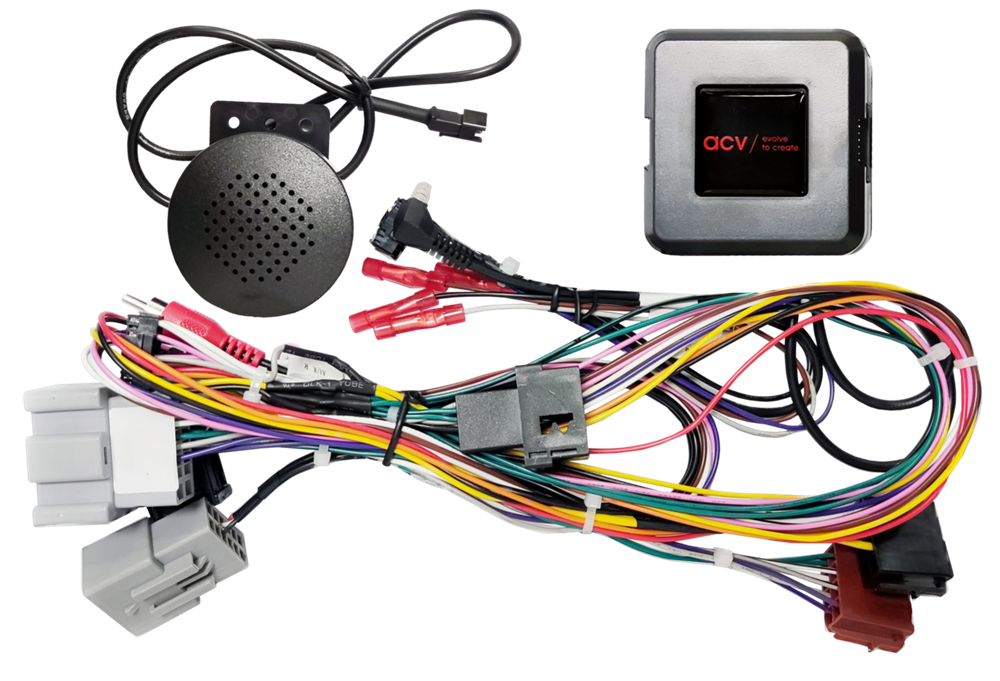

RATBETJENINGS INTERFACE FORD FIESTA 06/2010-09/2012 MED DISPLAY (ALT INCL)

Note:

CAN Bus

connector: 24 Pin Ford
connector: OEM SWC > 3,5mm Jack / loose wire
connector: AMP monitor connector > OEM monitor
connector: OEM monitor connector > interface

vehicles with Visteon OEM HU

vehicles with OK steering wheel button
vehicles with red OEM display

vehicles with only M steering wheel button without OK button not compatible

vehicles settings supported
vehicles with smal display and 2 setting buttons right > date settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Ford Fiesta (JA8) 06/2010 - 09/2012

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

vehicles settings supported
