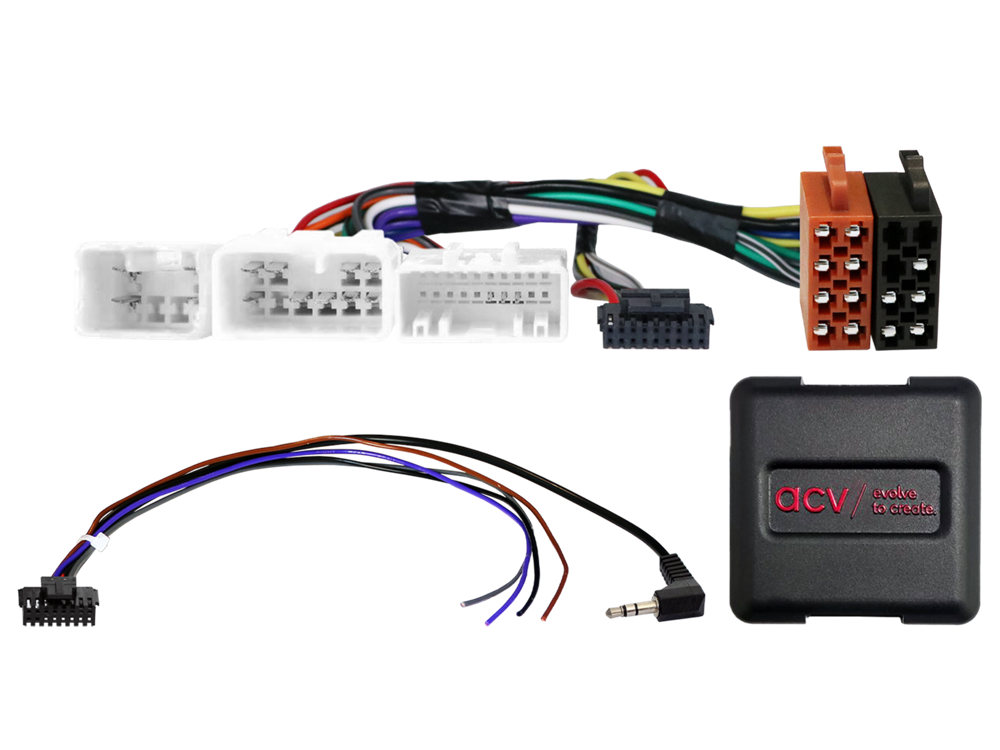

RATBETJENING TOYOTA/LEXUS 10/6/20 PIN (ALL INCL) Forside » BILSTEREO TILBEHØR » RATBETJENINGS INTERFACE » TOYOTA Varenr.: 42xty001 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,449,95 DKK På lager hos vores leverandør Download manual analog connector: 10 Pin / 6 Pin / 20 Pin Toyota connector: OEM SWC > 3,5mm Jack / loose wire vehicles on year of construction limit > item: 42xty00c with 20 Pin and 28 Pin wiring harness vehicles with Matsushita / Fujitsu Ten OEM HU vehicles without JBL / JBL Synthesis / Mark Levinson OEM amplified system dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Lexus Lexus IS (XE1) 10/2001 - 11/2005 Lexus IS (XE2) 12/2005 - 11/2008 Lexus IS Cabriolet (XE2) 07/2009 - 11/2010 Lexus IS (XE2) 11/2008 - 11/2010 Lexus IS Cabriolet (XE2) 11/2010 - 10/2013 Toyota Toyota 4Runner 2002 - 2009 Toyota Auris (E150) 07/2007 - 03/2010 Toyota Avanza 2003 - 2011 Toyota Avensis (T25) 01/2003 - 06/2006 Toyota Avensis (T25) 06/ 2006 - 01/2009 Toyota Avensis (T27) 01/2009 - 12/2011 Toyota Camry 2007 - 2011 Toyota Celica (T23) 10/1999 - 01/2006 Toyota Corolla (E120) 01/2002 - 07/2004 Toyota Corolla (E120) 07/2004 - 02/2007 Toyota Corolla Verso (R1) 05/2004 - 06/2007 Toyota Corolla Verso (R1) 07/2007 - 04/2009 Toyota Estima 2006 - 2016 Toyota FJ Cruiser 2001 - 2007 Toyota Hiace (H1) 11/2006 - 10/2010 Toyota Hilux (N25) 10/2005 - 11/2008 Toyota Hilux (N25) 11/2008 - 12/2011 Toyota Innova 2006 - 2015 Toyota Landcruiser (J12) 01/2003 - 01/2009 Toyota Matrix 2003 - 2014 Toyota MR2 (W3) 04/2000 - 03/2003 Toyota Prado 2003 - 2009 Toyota Previa 2006 - 2019 Toyota Prius ZVW30/ZVW35 (XW3) 06/2009 - 04/2012 Toyota RAV4 (XA2) 10/2000 - 12/2003 Toyota RAV4 (XA2) 12/2003 - 01/2006 Toyota RAV4 (XA3) 03/2006 - 04/2009 Toyota RAV4 (XA3) 04/2009 - 05/2010 Toyota Yaris (XP9) 01/2006 - 01/2009 Toyota Yaris (XP9) 01/2009 - 10/2011 Toyota Vios 2003 - 2007 Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Måske er du også interesseret i følgende produkter RAT INTERFACE TIL TOYOTA/LEXUS 1998 > (ALL INCL) DKK 489,95
