RATBETJENING PAC RP5-GM11 TIL DIV AMERIKANER (GM-LAN)

Stalk abapter Adapter Buik /Cadillac / Chevrolet /GMC / Hummer / Isuzu / Oldsmobil /Pointiac / Saab /Saturn

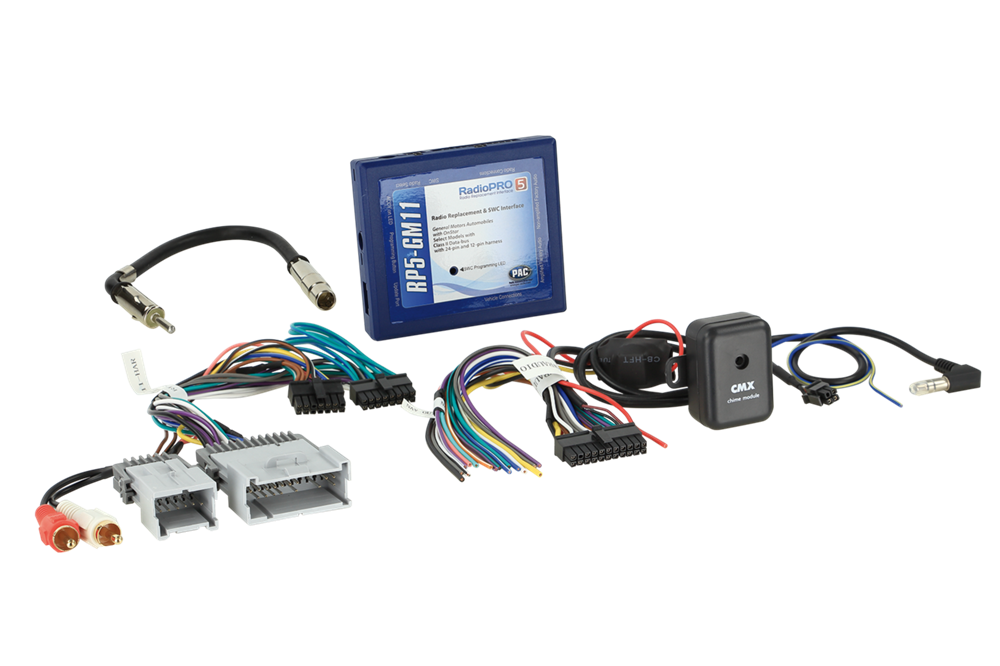

RP5-GM11

Retain your steering wheel control functions, when
exchanging your OEM head unit against an aftermarket Radio.
Please compare the pictured harness connectors with
the connectors in your car and make sure that they fit optically and technically.
Also check that the listed OEM Head units where originally fit in your vehicle.
Please contact our support team for help
02431-9645-96
support@acvgmbh.de

Note:

CAN Bus ClassII

connector: 24 Pin / 12 Pin grey GM
connector: OEM antenna > DIN(m)
connector: OEM Rear Seat Entertainment > RCA red/white

vehicles with ON-Star
vehicles with/without BOSE OEM amplified system
vehicles with/without OEM Rear Seat Entertainment

vehicles without front PDC

blue/white: +12V switched amp remote

XZent/Zenec HU not supported

Vehicle application:

Buick
Buick Century 2004 - 2005
Buick Lacrosse 2005 -2007
Buick Rainier 2004 - 2007
Buick Rendezvous 2003 - 2007
Buick Terraza 2005 - 2007

Cadillac
Cadillac Escalade 2003 - 2006
Cadillac Escalade ESV 2003 - 2006
Cadillac Escalade EXT 2003 - 2006

Chevrolet
Chevrolet Avalance 2003 - 2006
Chevrolet Cavalier 2000 - 2005
Chevrolet Colorado 2004 - 2011
Chevrolet Corvette 2005 - 2013
Chevrolet ExpressVan 2004 - 2007
Chevrolet Malibu 2001 - 2003
Chevrolet Monte Carlo 2000 - 2005
Chevrolet S-10 Pickup 2003 - 2004
Chevrolet Silverado 2003 - 2006
Chevrolet Silveradeo Classic 2007
Chevrolet SSR 2003 - 2006
Chevrolet Suburban 2003 - 2006
Chevrolet Tahoe 2003 - 2006
Chevrolet Trailblazer 2002 - 2009
Chevrolet Uplander 2005 - 2008
Chevrolet Venture 2003 - 2005

GMC
GMC Canyon 2004 - 2011
GMC Enoy 2002 - 2009
GMC Savana 2003 - 2007
GMC Sierra 2003 -2 006
GMC Sierra Classic 2007
GMC Yucon 2003 - 2006
GMC Yucon XL 2003 - 2006

Hummer
Hummer H2 2003 -2 007
Hummer H3 2005 - 2010
Hummer H3T 2009 - 2010

Isuzu
Isuzu Ascender 2003 - 2008

Oldsmobile
Oldsmobile Alero 2001 - 2004
Oldsmobile Bravada 2002 - 2004
Oldsmobile Silhouette 2000 - 2004

Pointiac
Pointiac Aztek 2001 - 2005
Pointiac Grand AM 2001 - 2005
Pointiac Grand Prix 2004-2008
Pointiac Montana 2000-2006
Pointiac Sunfire 2000-2005

Saab
Saab 9-7X 2005 - 2008

Saturn
Saturn Relay 2005 - 2007

Following signals are provided:

Park brake
Reverse
Speed sense
Ignition R.A.P

SWC

OEM Rear Seat Entertainment
BOSE OEM amplified system (BOSE Premium amplified system no fader)
chimes
PDC rear
On-Star
