Varenr.: 41-1121-001
På lager hos vores leverandør Download manual

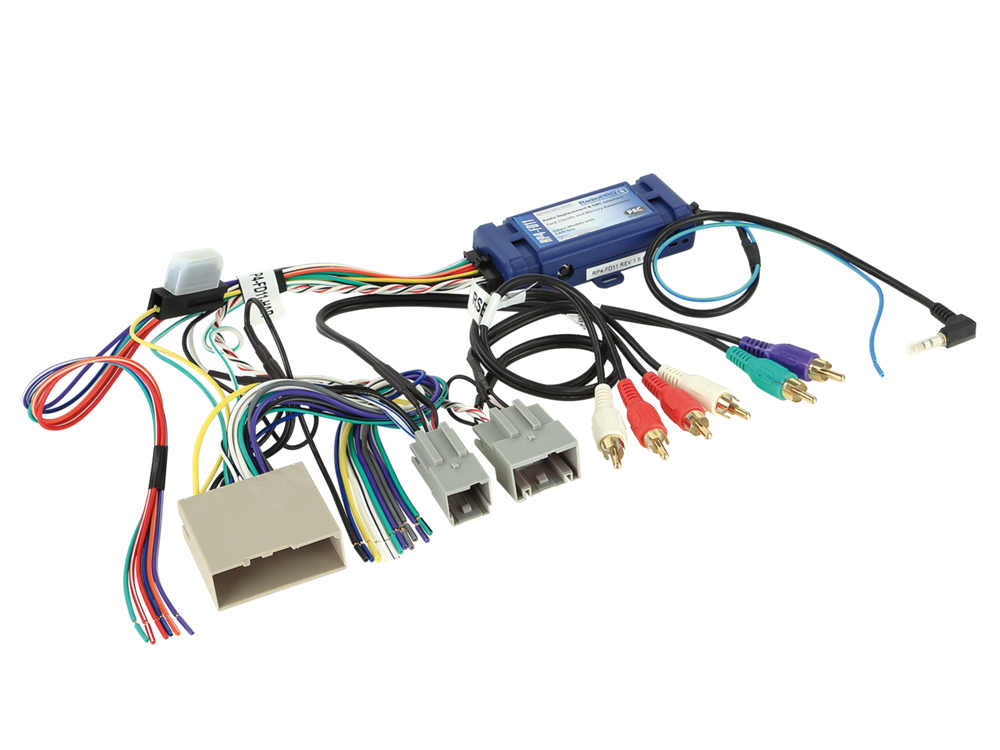

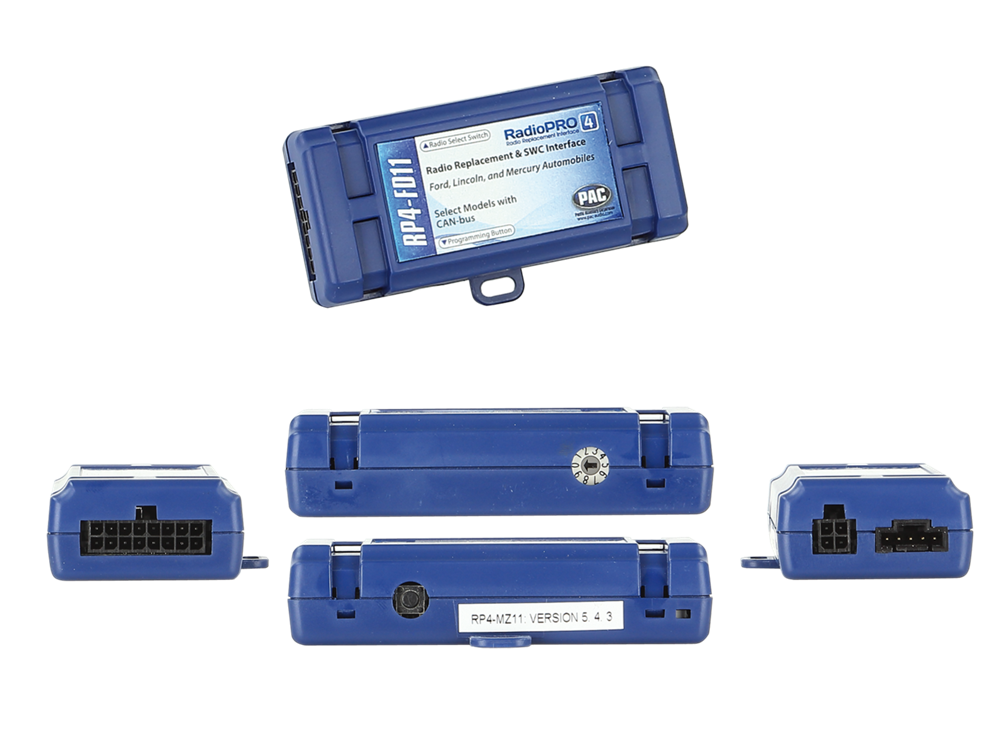

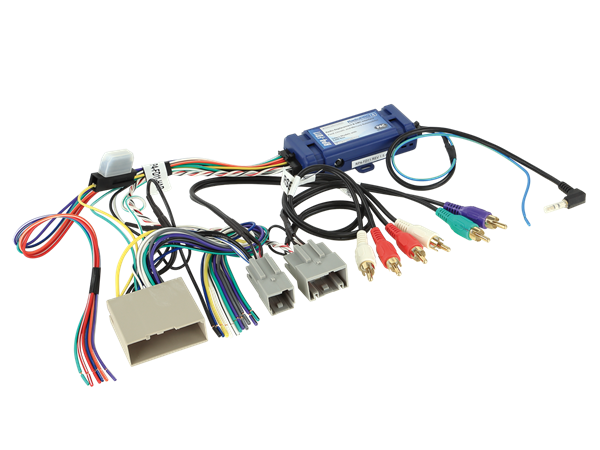

RP4-FD11
Retain your steering wheel control functions, when
exchanging your OEM head unit against an aftermarket Radio.

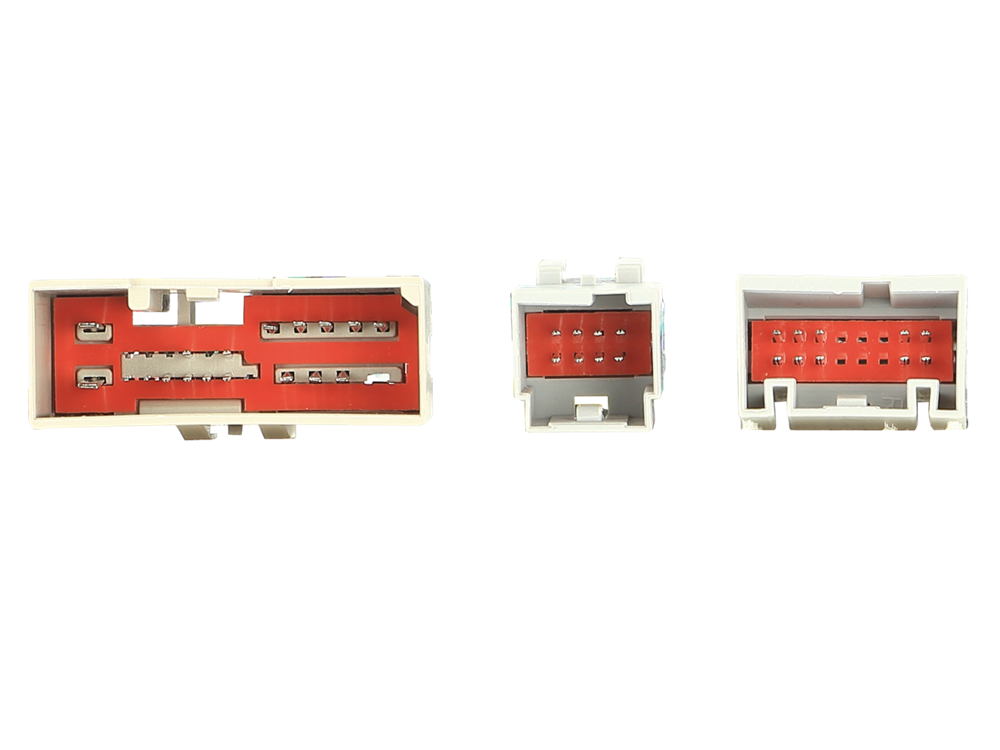

Please compare the pictured harness connectors with
the connectors in your car and make sure that they fit optically and technically.
Also check that the listed OEM Head units where originally fit in your vehicle.
Note:
CAN Bus
connector: 24Pin / 16Pin / 8Pin Ford US
connector: OEM amplified system > RCA
connector: OEM RSE > RCA
vehicles with/without OEM amplified system
vehicles with/without rear seat entertainment
blue/white: +12V switched amp remote
XZent/Zenec HU not supported
Vehicle application:
Ford
Ford Edge 2007 - 2010
Ford Escape 2008 - 2012
Ford Expedition 2007 - 2014
Ford Explorer 2006 - 2010
Ford Explorer Sport Trac 2007 - 2010
Ford F-150 2009 - 2014*
Ford F-250 2008 - 2016**
Ford F-350 2008 - 2016**
Ford F-450 2008 - 2016**
Ford F-550 2013 - 2016
Ford Super Duty 2013 - 2016***
Ford Five Hundred 2005 - 2007
Ford Flex 2009 - 2012
Ford Focus (US) 2008 - 2011
Ford Freestyle 2005 - 2007
Ford Fusion (US) 2006 - 2012
Ford Mustang 2005 - 2013
Ford Taurus 2010 - 2012
Lincoln
Lincoln MKS 2009 - 2012
Lincoln MKT 2010 - 2012
Lincoln MKX 2007 - 2010
Lincoln MKZ 2007 - 2012
Lincoln Navigator 2007 - 2014
Lincoln Zephir 2006
Mazda
Mazda Tribute (US) 2009 - 2011
Mercury
Mercury Mariner 2008 - 2011
Mercury Milan 2006 - 2011
Mercury Montego 2005 -2 007
Mercury Mountaineer 2006 - 2010
Mercury Sable 2008 - 2009
Following signals are provided:
Park brake
Reverse
Speed sense
Ignition R.A.P
SWC
OEM amplified system (no fader)
RSE
*base model vehicles with center stac OEM HU (look picture)
**fleet vehicles with XL trim not supported
***base model vehicles with 2 DIN OEM HU (look picture)
