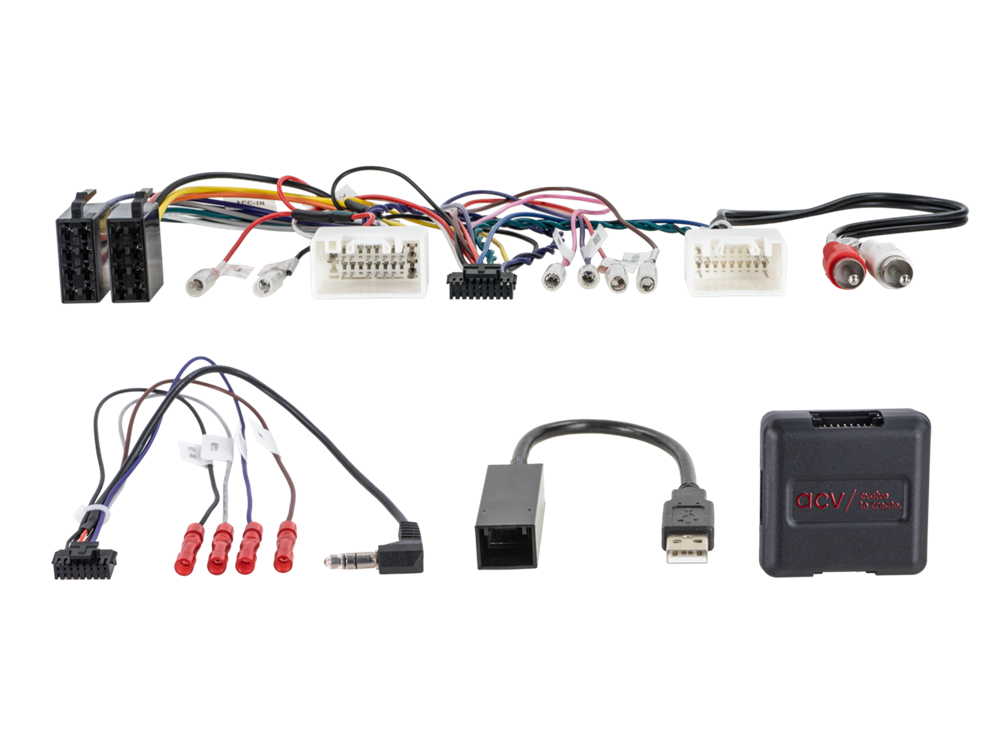

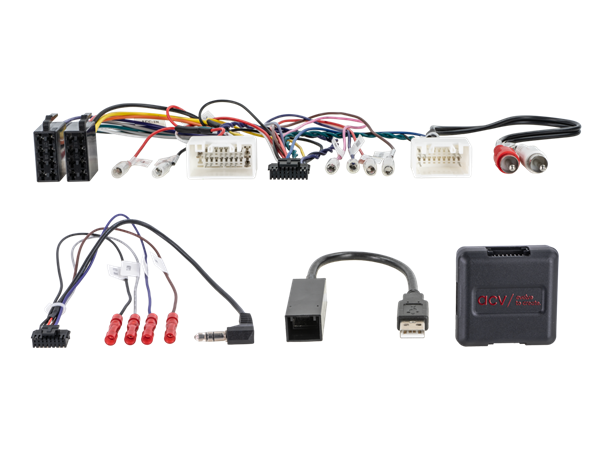

RATBETJENING MITSUBISHI 2012 > 2022 MED USB/ROCKFORD FOSGATE BIBEHOLDELSE (ALL INCL)

Ratbetjenings interface med Rockford fosgate og usb bibeholdelse
Note:
CAN Bus
connector: 18 Pin / 20 Pin Mitsubishi
connector: OEM SWC > 3,5mm Jack / loose wire
vehicles with Rockford Fosgate OEM amplified system:
fader not supported
Mitsubishi Pajero (V80) with deviating software not supported:
vehicle bus system is disturbed
vehicle function impaired
vehicle functionality > check bevore final assembly

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle aplication:

Mitsubishi ASX (GAO) 11/2016 - 08/2019
Mitsubishi ASX (GAO) 09/2019 - 10/2021
Mitsubishi L200 (KJOT) 10/2015 - 08/2019
Mitsubishi L200 (KJOT) 09/2019 - 10/2022
Mitsubishi Outlander (CWO) 10/2012 - 10/2015
Mitsubishi Outlander (CWO) 10/2015 - 08/2018
Mitsubishi Outlander (CWO) 09/2018 - 03/2022
Mitsubishi Pajero (V80) 10/2014 - 08/2018
Mitsubishi Shogun (V80) 2014 - 2018

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
Rockford Fosgate OEM amplified system supported

*fader not supported
