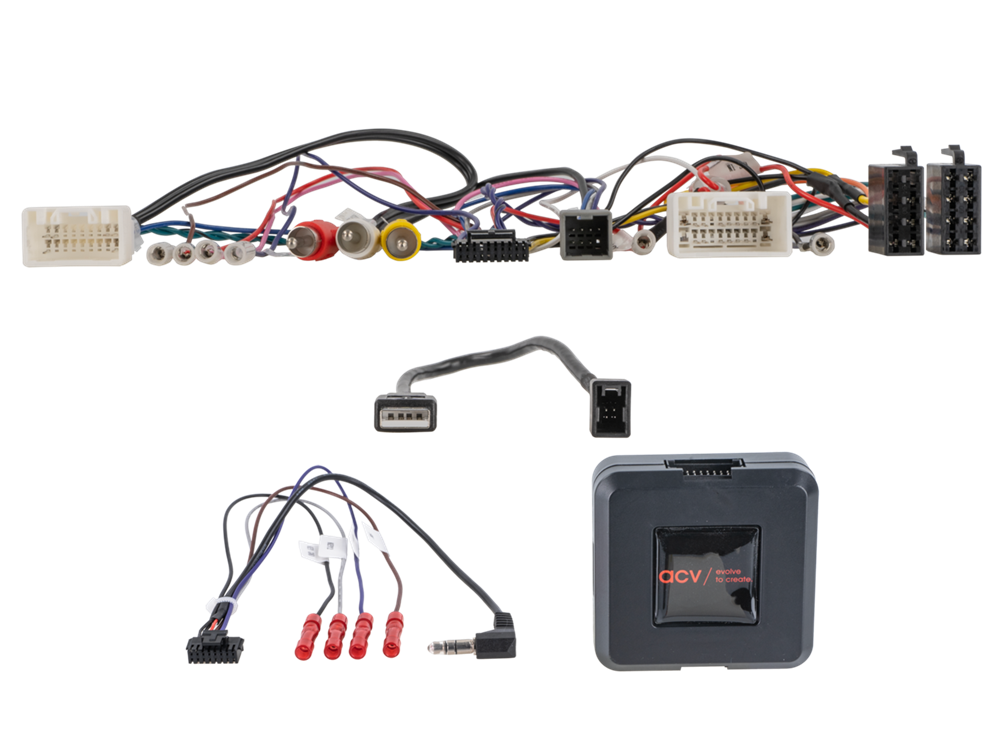

RATBETJENING MITSUBISHI 2018 > MED AMP/AUX/USB/360° KAMERA BIBEHOLDELSE (ALL INCL)

Ratbetjenings interface med kamera og usb bibeholdelse, (også 360° kamera systemer)
Note:

CAN Bus

connector: 18 Pin / 20 Pin / 8 Pin Mitsubishi
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow

vehicles with OEM amplified system

fader not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mitsubishi L200 (KJ/KK/KL) 09/2019 - 2022
Mitsubishi Montero Sport (QE) 09/2019 - 2022
Mitsubishi Outlander (GFO) 09/2018 - 03/2022
Mitsubishi Pajero Sport (QE) 07/2019 - 2022
Mitsubishi Shogun Sport (QE) 07/2019 - 2022
Mitsubishi Triton (L200) 09/2020 - 2022

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
OEM amplified system
360° OEM camera system
