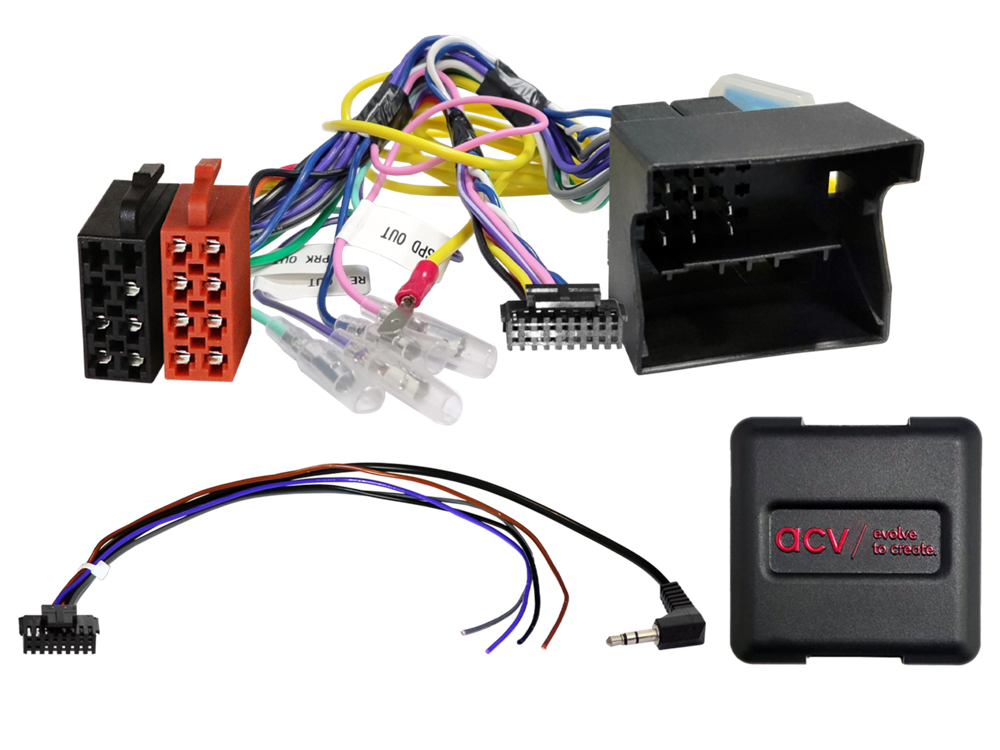

RATBETJENING MERCEDES VITO W447 2014> (ALL INCL)

CAN Bus

connector: 40 Pin Quadlock Mercedes
connector: OEM SWC > 3,5mm Jack / loose wire
connector: +12V continuous current yellow clamp 30 Battery fused

vehicles with Audio 10 / Audio 15 / Audio 30 / Audio 40 OEM HU
vehicles with Audio 10 OEM HU > only volume function supported*
vehicles with Audio 40 Pioneer OEM HU > remove Pioneer harness adapter
vehicles with Audio 40 Garmin OEM HU > OEM camera not supported

vehicles with OEM camera:
Rear view camera adapter Fakra(m)>RCA(m) OEM camera > item: 771000-2011

vehicles with E-Call:
E-Call function retention Mercedes Sprinter/V-class > item: 1424-27-0

reverse gear signal not supported in all vehicles:
reverse gear signal > +12V driverside cable 1,5mm² white/blue

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes Vito (W447) 10/2014 - 02/2019
Mercedes Vito (W447) 05/2019 - 01/2024

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*for more SWC functions > code vehicle to Audio 15 OEM HU if possible
