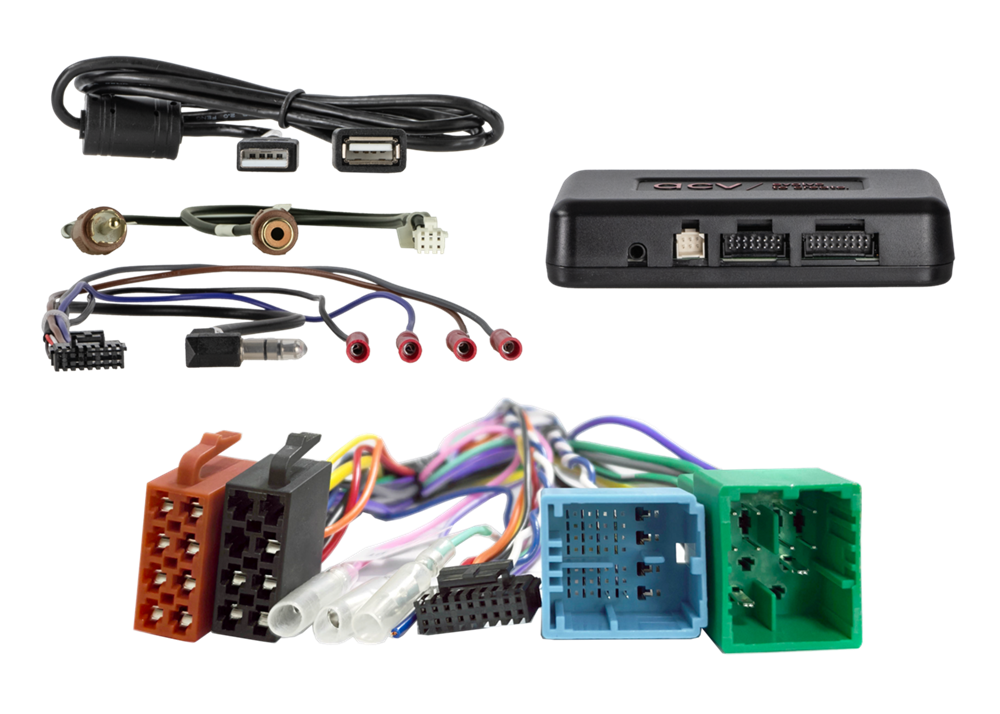

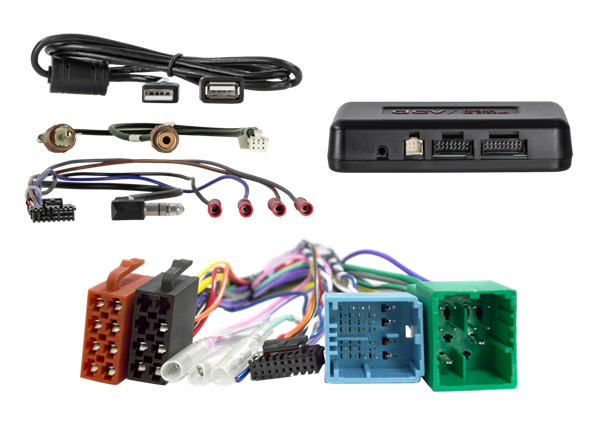

RATBETJENING/INFOADAPTER DUCATO BASE 2021 > (ALL INCL)

Note:

vehicles with SWC

CAN BUS

connector: 12 Pin green / 32 Pin blue Fiat
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with 5" OEM HU
vehicles with 7" OEM HU
vehicles with 10" OEM Sat Nav

activate and configure the rear view camera input in the retrofit HU

connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

visualisation i-adapter settings > retrofit HU rear view camera input

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

i-dapter settings:
press and hold track up or down SWC buttom

depending on the vehicle equipment and software:
not all vehicle settings are supported
not all vehicle functions are supported
not all vehicle information is visualised
+12V reverse gear signal not supported

following settings supported:

Language / Distance Units / Clock / Temperature Units / Consumption Units / Speed Units / Follow Me / Auto Door Unlock on Exit / Flash Lights with lock / Courtesy Lights / Auto Door Locks / Daytime Running Lights / Cornering Lights / Ambient Lighting / Greeting Lights / Park Sens / Volume Level / High Beam Control / Park Sense / Rain Sensor / Lane Sense Warning / Lane Sense Strength / Tyre Pressure Units / Traffic Sign Recognition / Traffic Sign Warning / Vehicle Off Options / Blindspot Assist / Headlight Sensor Sensitivity / Forward Collision Warning / Forward Collision Sensitivity

+12V reverse gear signal not supported

vehicles with OEM rear view camera:
Rear view camera interface Citroen/Fiat/ Opel/OEM camera > item: 771094-1031

dip switch settings for the OEM device (look into the manual)
dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroen
Citroen Jumper (250) 07/2024 -2026
Citroen e-Jumper (259 07/2024 -2026
Citroen Relay (250) 2024 - 2026

Fiat
Fiat Ducato (ZAF 250) 11/2021 - 11/2023
Fiat Ducato (ZAF 250) 11/2023 - 2026
Fiat e-Ducato (ZAF 250) 04/2021 - 03/2024
Fiat e-Ducato (ZAF 250) 03/2024 -2026

Opel
Opel Movano Cargo C (Y) 01/2024 - 2026
Opel Movano Electric Cargo C (Y) 01/2024 - 2026

Peugeot
Peugeot Boxer (Y) 07/2024 - 2026
Peugeot e-Boxer (Y) 07/2024 - 2026

Toyota
Toyota Proace Max (T) 08/2024 - 2026
Toyota Proace Max Electric (T) 01/2025 - 2026

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
