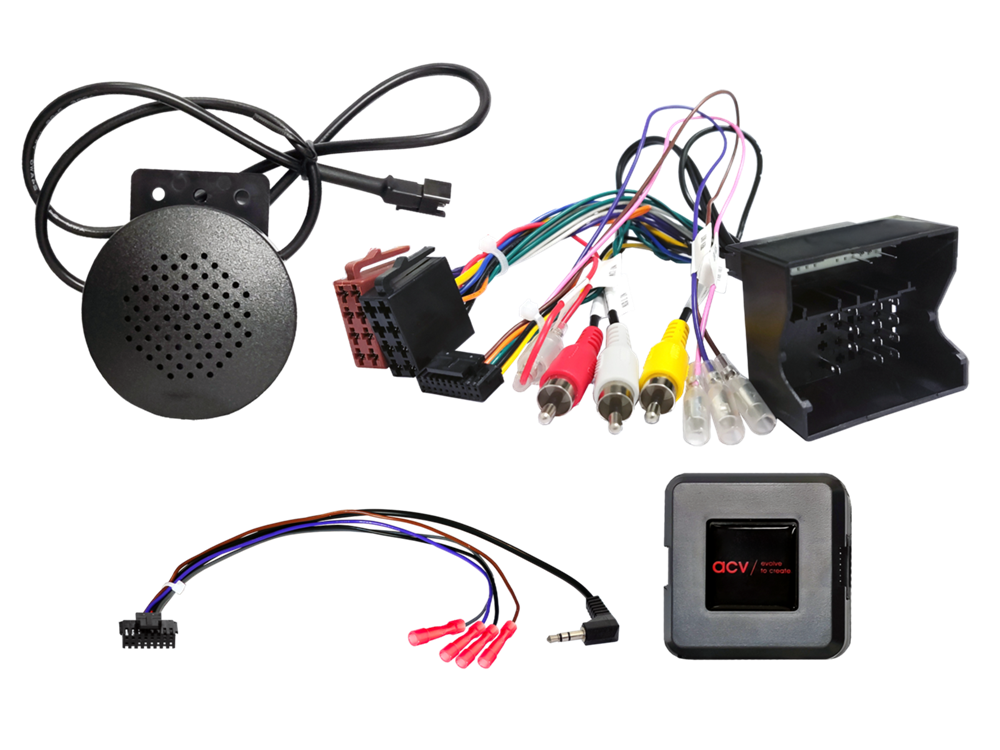

RATBETJENING CITROEN/PEUGEOT MED BAKALARM BIBEHOLDELSE (ALL INCL)

CAN Bus

connector: 40 Pin Quadlock Citroen / Peugeot
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red / white
connector: RCA(m) yellow not connected

vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM HU with volume control knob
vehicles with Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
vehicles with PDC rear

vehicles without Bosch OEM HU
vehicles without Continental RD45 OEM HU with volume control knob
vehicles without Magneti Marelli RT3 / RT6 / Harman Becker OEM Sat Nav
vehicles without JBL OEM amplified system

vehicles without OEM rear speakers:
PDC chimes to rear speaker output
change connection front/rear speaker of the ISO plug

vehicles Peugeot CC:
SWC Citroen/Fiat/Peugeot/Toyota vehicles Quadlock PDC > item: 42a-1041-008

vehicles with Continental RD45 OEM HU with volume control knob:
SWC Citroen/Fiat/Peugeot/Toyota vehicles Quadlock PDC > item: 42a-1041-008

vehicles with PDC switch:
PDC chimes funktion must be activated

vehicles with ECO-mode:
connect +12V continuous current clamp 30 to batterie fused

vehicle settings supported (look into the manual)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Citroën
Citroën Berlingo (7) 06/2008 - 03/2012
Citroën Berlingo (7) 04/2012 - 05/2015
Citroën Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroën C3 (S) 01/2010 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 01/2008 - 07/2012
Citroën C8 (E) 07/2012 - 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (V) 02/2007 - 05/2016
Citroen Jumpy (V) 09/2016 - 01/2024*
Citroen Spacetourer (V) 03/2016 - 03/2024*

Fiat
Fiat Scudo (ZAF 270) 02/2007 - 07/2016

Opel
Opel Vivaro C (V) 09/2019 - 01/2024*
Opel Zafira Life V (V) 02/2019 - 01/2024*

Peugeot
Peugeot 207 (WC) 06/2006 - 06/2009
Peugeot 207 (W) 06/2009 - 07/2015
Peugeot 208 (C) 04/2012 - 04/2015
Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008
Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011
Peugeot 607 (9) 10/2004 - 04/2009
Peugeot 807 (E) 07/2002 - 02/2008
Peugeot 807 (E) 02/2008 - 06/2014
Peugeot 3008 (OU) 06/2009 - 10/2013
Peugeot 5008 (O) 10/2009 - 10/2013
Peugeot Bipper (A) 12/2007 - 12/2015
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Expert (X) 03/2016 - 04/2024**
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015
Peugeot Traveller (V) 03/2016 -04/2024**

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

PDC rear supported
vehicle settings supported

*vehicles with PDC and Clarion MQ-RD6 OEM HU monochrome display and central rotary knob
**vehicle settings not supported
