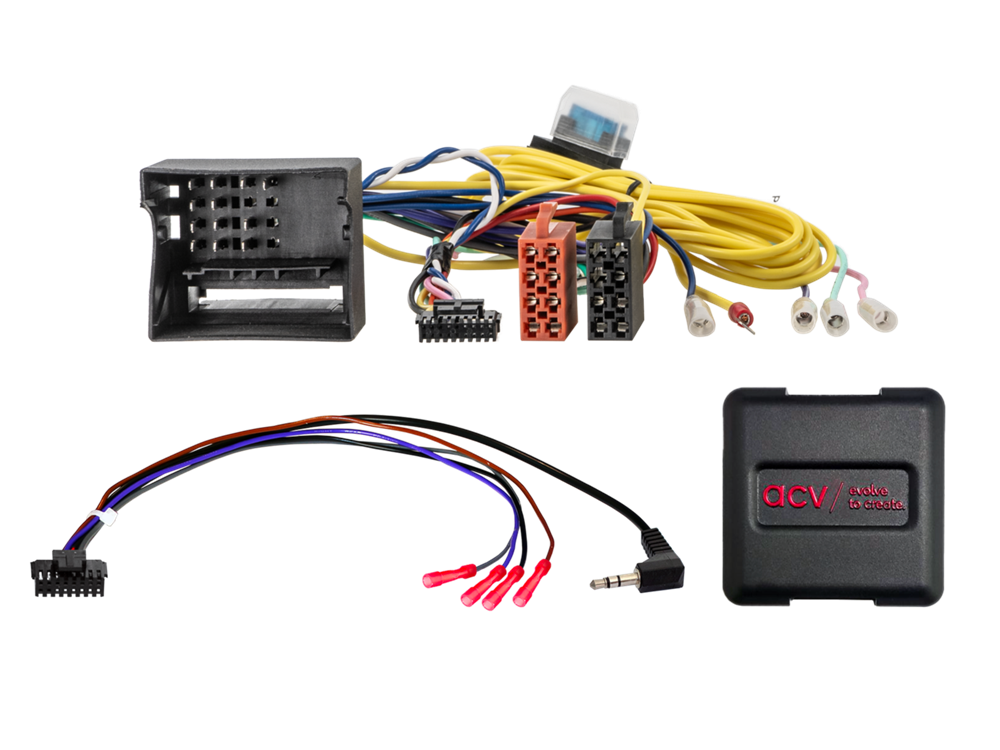

RAT INTERFACE VW CRAFTER 2014 - 2016 U/BATTERIPLUS I STIK (ALL INCL)

CAN Bus

connector: 40 Pin Quadlock Mercedes
connector: OEM SWC > 3,5mm Jack / loose wire
connector yellow +12V continuous current clamp 30 batterie fused

vehicles with RCD3002 OEM HU
vehicles with RNS 4001 / RNS 5001 OEM Sat Nav

vehicles with constant power switch off

vehicles without constant power switch off:
SWC BMW/Mercedes/Smart/VW different vehicles Quadlock > item: 42a-1190-003

vehicles with RCD 2001 1-DIN OEM HU:
SWC Mercedes different vehicles ISO/10 Pin ISO/Mini ISO > item: 42a-1190-001

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

VW Crafter (2EC/EK//2F) 07/2014 - 11/2016

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
