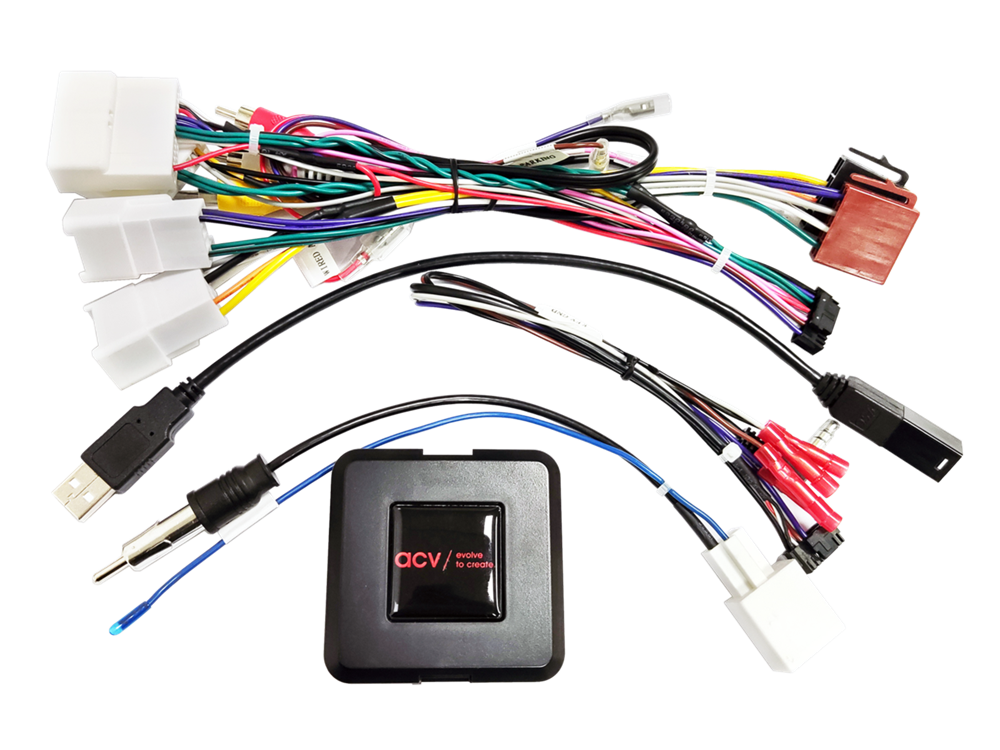

RAT INTERFACE TOYOTA MED FORSTÆRKER OG 360° KAMERA SYSTEM (ALL INCL.)

Leveres med antenne adapter
analog SWC
CAN Bus

connector: 10 Pin / 6 Pin / 28 Pin / 24 Pin Toyota
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white
connector: OEM 360° camera system > RCA(m) yellow

vehicles with OEM amplified system

fader not supported
vehicle language only customisable with OEM HU installed

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Toyota Highlander (XU50) 2018 - 12/2019
Toyota Landcruiser (J15) 10/2013 - 12/2017
Toyota Landcruiser (J15) 01/2018 - 07/2019
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system supported
OEM 360° camera system supported
