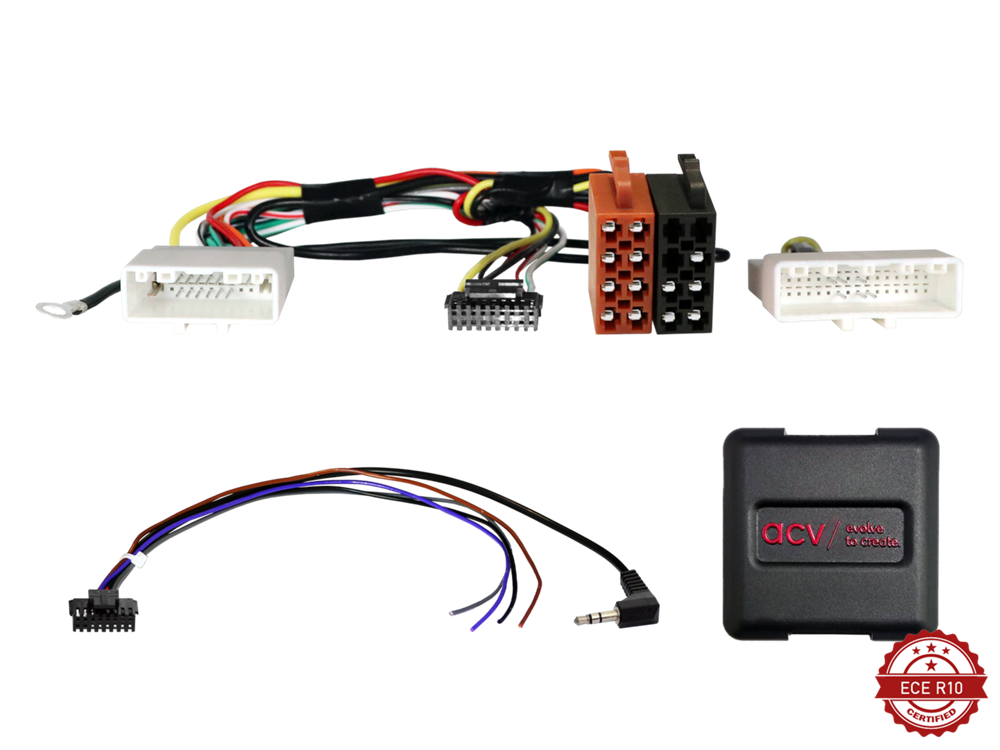

RAT INTERFACE TIL NISSAN 2009 > UDEN SAT NAV (ALL INCL)

Note:

analog

connector: 20 Pin Nissan
connector: 32 Pin telephone module

vehicles with Blaupunkt / Bosch / Clarion OEM HU
vehicles with external OEM telefone modul**
vehicles with OEM amplified system*

vehicles without OEM Sat Nav

black: GND clamp 31

Vehicle application:

Nissan 370Z (Z34) 07/2009 - 03/2013
Nissan Cube (Z12) 01/2010 - 03/2011
Nissan Juke (F15) 10/2010 - 06/2014
Nissan Micra (K13) 03/2011 - 07/2013
Nissan Navara (D40) 04/2010 - 08/2015
Nissan Note (E11) 01/2009 - 08/2013
Nissan NV 200 (M20) 2013 - 09/2016
Nissan Pathfinder (R51) 09/2013 - 05/2015

The following signals are provided:

SWC

*+12V Amp remote Pin 2 next to +12V continious current check with OEM HU
*Active system adapter different vehicles ISO>ISO: 13-1190-50
**telefon modul location: connector: BT-OEM Modul / cover pannel passenger side cargo trunk /behind/above glove box /center console / unter front seats
