Varenr.: 42xns024
På lager hos vores leverandør
Download manual

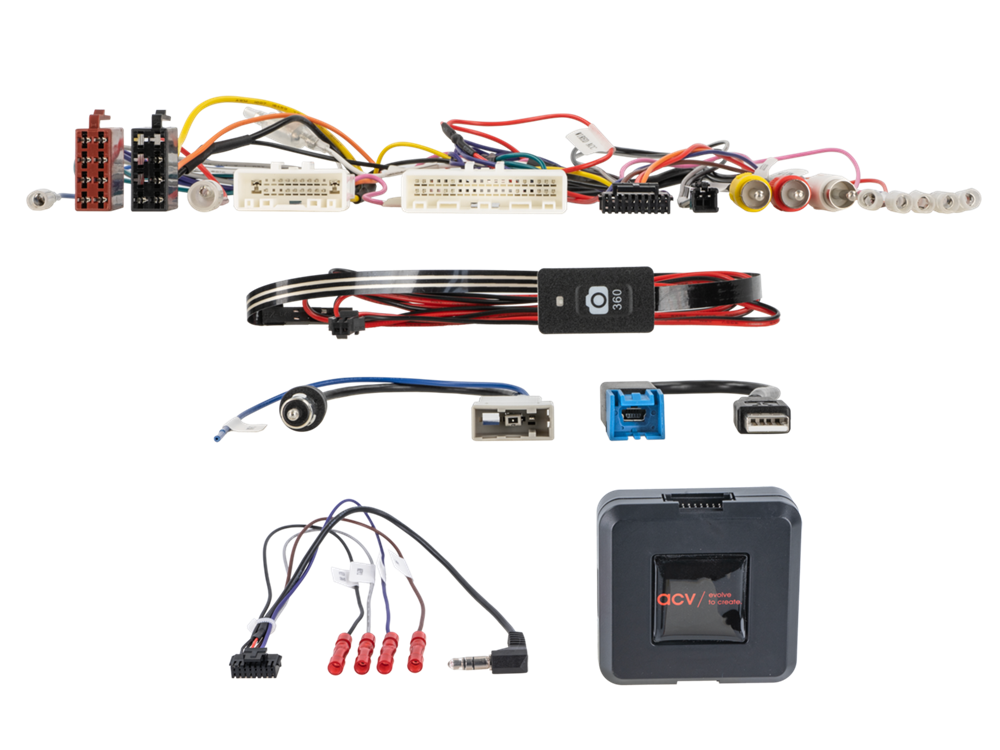

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.
Passer til følgende modeller: Beholder OEM kamera, aux og usb i bilen. Leveres med antenne adapter.
CAN Bus
connector: 20 Pin / 40 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow
vehicles with OEM Navigation
vehicles with OEM 360° camera system
vehicles with model equipment N-Connecta
vehicles with model equipment N-Vision
vehicles with model equipment Tekna > Nissan Savety Shield not supported:
motion detection
parking assistant
drowsiness detection
blind spot assist
date/time setting > BC display in AUX position
BC reset factory settings and reconfiguration required if AUX menu is missing
track forward / track back > function can be swapped
AUX:
check for correct assignment by measuring with OEM HUbefore installation
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Nissan Altima (L33) 06/2012 - 08/2018
Nissan Murano (Z52) 10/2014 - 04/2017
Nissan X-Trail (T32) 07/2014 - 07/2017
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
date/time setting supported
360° OEM camera system supported
