RAT INTERFACE TIL OPEL 2001 > (ALL INCL)

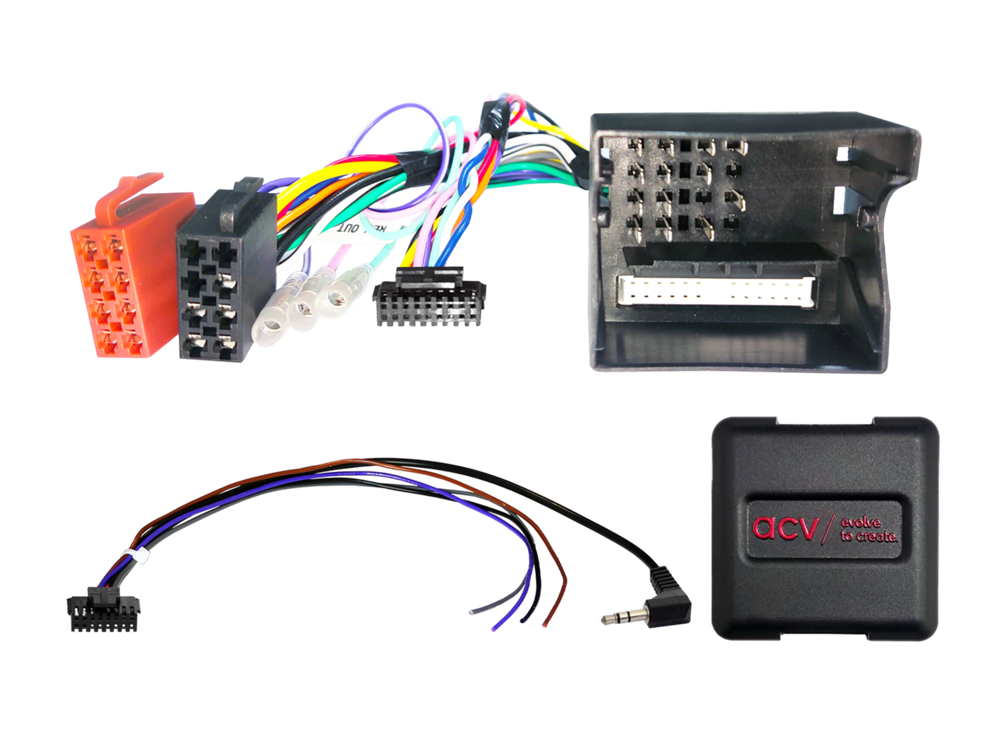

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

CAN Bus

connector: 40 Pin Quadlock Opel
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with CD30 / CD30MP / CDC40 / CD50 / CD70 / DVD 90 OEM HU
vehicles with Blaupunkt / Delphi / Siemens VDO OEM HU

vehicles Opel Corsa D from year of construction 2008:
SWC Opel Corsa D 2008-2014 40Pin Quadlock Multilead > item:42xvx003

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan
Nissan Primastar (X83) 09/2006 - 01/2011*

Opel
Opel Agila A (H00) 06/2003 - 10/2007
Opel Antara (L-A) 11/2006 - 11/2010
Opel Astra H (A-H) 03/2004 - 02/2007
Opel Astra H (A-H) 02/2007 - 11/2010
Opel Combo (C) 10/2004 - 09/2011
Opel Corsa C (X01) 07/2003 - 10/2006
Opel Corsa D (S07) 10/2006 - 11/2008
Opel Meriva A (X01) 11/2005 - 03/2010
Opel Signum I (Z03) 09/2005 - 08/2008
Opel Tigra Twin Top (X-C) 07/2004 - 11/2009
Opel Vectra C (Z02) 09/2005 - 09/2008
Opel Vivaro A (X83) 09/2006 - 01/2011*
Opel Zafira B (A-H) 07/2005 - 06/2010
Opel Zafira B (A-H) 02/2008 - 12/2014

Renault
Renault Trafic II (L/jL) 10/2006 - 01/2011*

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

vehicle settings supported

*vehicles with trapezoid OEM HU
