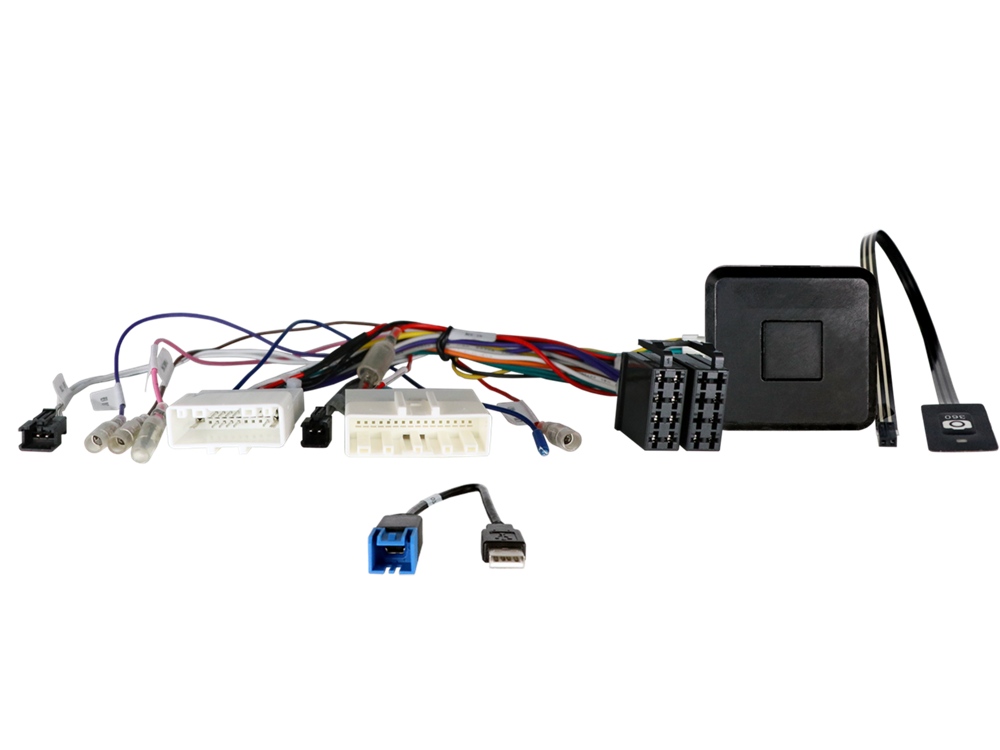

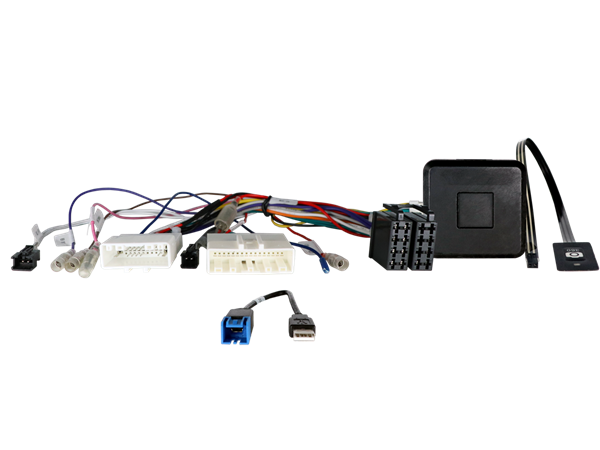

RAT INTERFACE TIL NISSAN ALTIMA/MURANO/X-TRAIL 2013 > AUX,USB OG 360° KAMERA BIBEHOLDELSE (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller: Beholder OEM kamera, aux og usb i bilen.
Note:

analog

connector: 20 Pin / 32 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white
onnector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow

vehicles with OEM Navigation
vehicles with OEM 360° camera system
vehicles with model equipment N-Connecta
vehicles with model equipment N-Vision

vehicles with model equipment Tekna > Nissan Savety Shield not supported:
motion detection
parking assistant
drowsiness detection
blind spot assist

date/time setting > BC display in AUX position

BC reset factory settings and reconfiguration required if AUX menu is missing
track forward / track back > function can be swapped

OEM AUX: before installation check for correct assignment by measuring

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan Kicks 05/2017 - 08/2020
Nissan Qashqai (J11) 03/2014 - 10/2018
Nissan Rogue II 2014 - 2019
Nissan X-Trail (T32) 07/2017 - 08/2018

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

date/time setting supported
360° OEM camera system supported
