RAT INTERFACE TIL MAZDA 3/5/6 2009 > 2015 MED BOSE (ALL INCL)

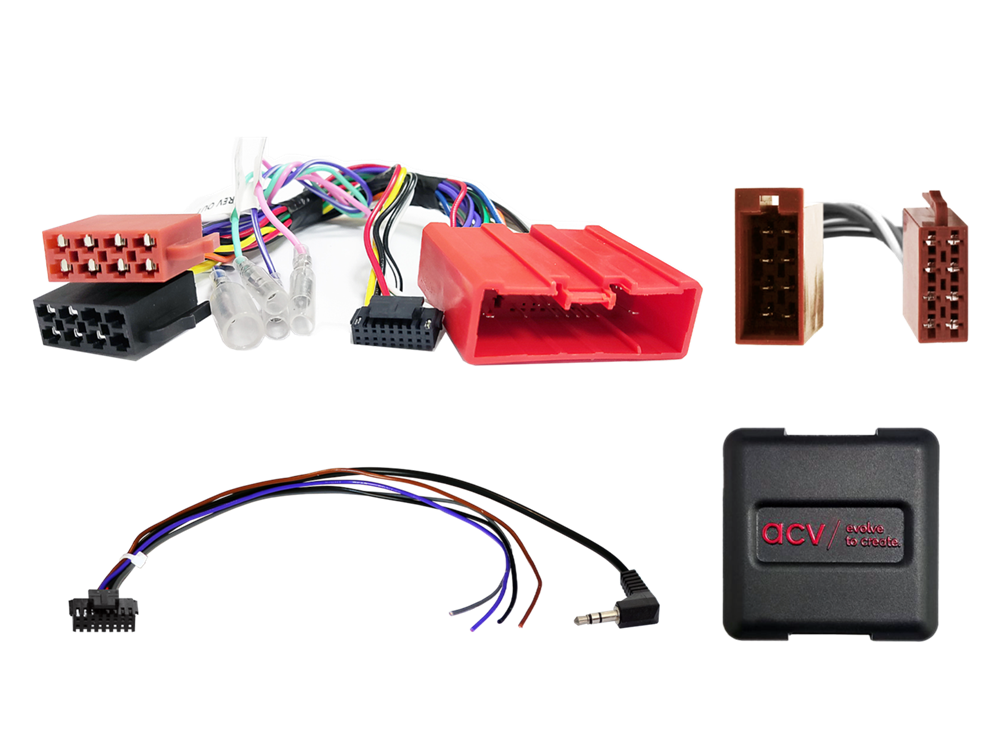

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:

Note:

CAN Bus SWC

connector: 24 Pin Mazda
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amplified system ISO(m) > ISO(f)

vehicles with Panasonic OEM HU
vehicles with BOSE OEM amplified system

vehicles Mazda 3 / Mazda 6 with Sanyo Tom Tom OEM Sat Nav:
connector Mazda > Sanyo connection behind the OEM HU

vehicles Mazda 5 with Sanyo Tom Tom OEM Sat Nav:
connector Mazda > Sanyo connection behind the glove box

vehicles without BOSE OEM amplified system:
installation without OEM amplified system ISO(m) > ISO(f) connector

blue/white: +12V amp remote

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mazda 3 (BL) 05/2009 - 09/2011
Mazda 3 (BL) 09/2011 - 09/2013
Mazda 5 (CW) 10/2010 - 02/2013
Mazda 5 (CW) 02/2013 - 08/2015
Mazda 6 (GH) 05/2010 - 02/2013

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.
