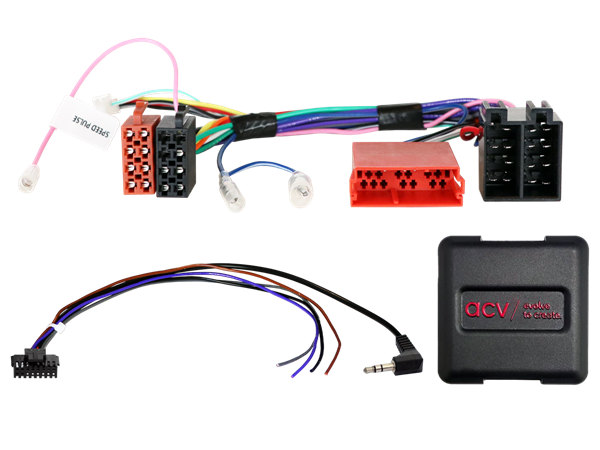

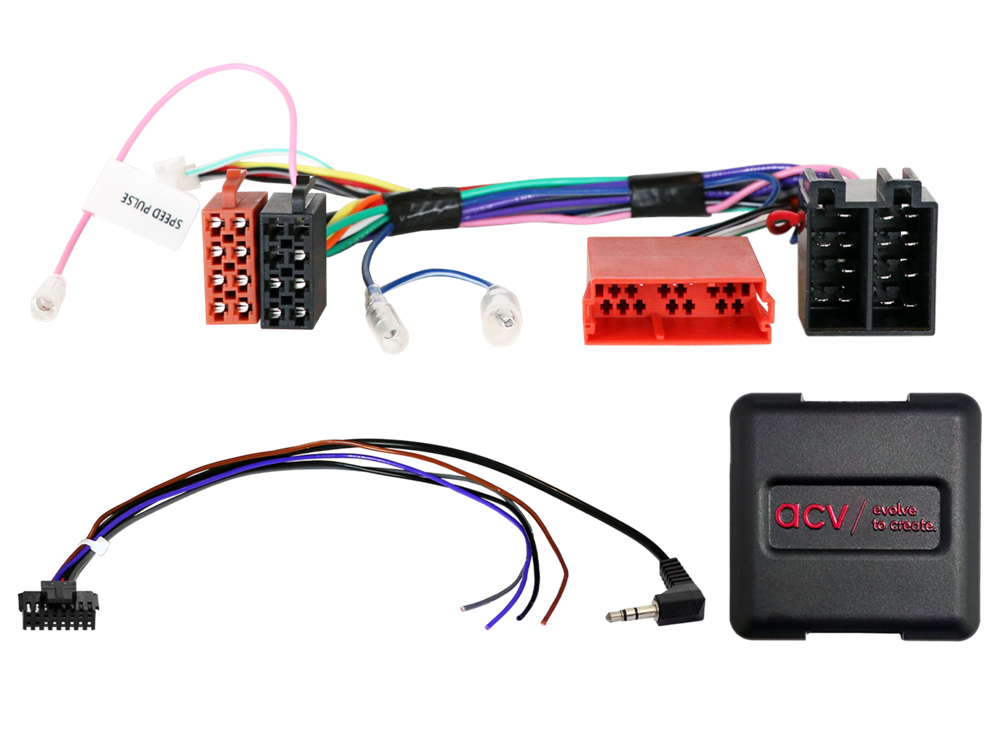

RAT INTERFACE TIL HYUNDAI/KIA 2008> (ALT INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller:
Note:
analog

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with OEM amplified system analog:
blue/white: +12V Amp remote

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Hyundai
Hyundai i20 (PB) 04/2009 - 06/2012
Hyundai i20 (PB) 07/2012 - 11/2014
Hyundai i30 (FD/FDH) 09/2007 - 07/2010
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai Santa Fé (CM) 01/2010 - 09/2012
Hyundai Sonata (NF) 08/2008 - 03/2010

Kia
Kia Carens (BK) 10/2006 - 03/2013
Kia Cerato 2009 - 2013
Kia Carnival (VQ) 06/2006 - 12/2009
Kia Sorento (JC) 07/2006 - 09/2009
Kia Sorento (XM) 10/2009 - 10/2012
Kia Soul (AM) 02/2009 - 09/2011
Kia Venga (YN) 02/2010 - 01/2015

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

General installation instructions:

Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.

Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle

Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
