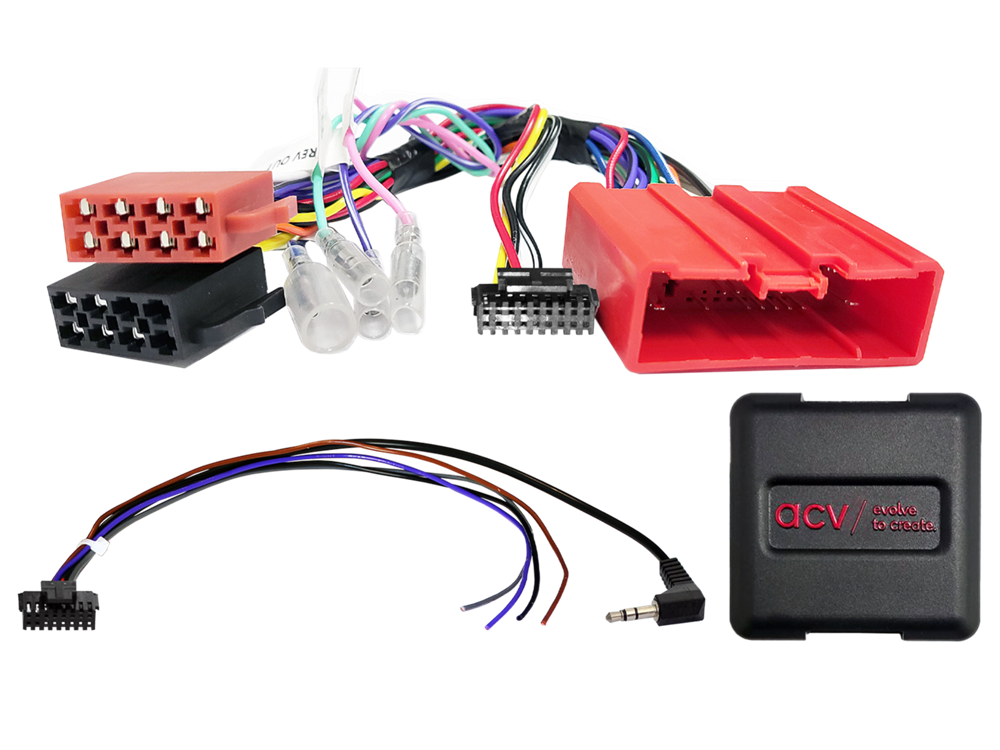

RAT INTERFACE TIL MAZDA DIV 1997 (ALL INCL) Forside » BILSTEREO TILBEHØR » RATBETJENINGS INTERFACE » MAZDA Varenr.: 42xmz002 DKKSEK PRIS ER PR. Stk Pris ved køb af 1 Stk,449,95 DKK På lager hos vores leverandør Download manual Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening. Det gør det muligt at styre primær funktioner på radioen. Passer til følgende modeller: Note: analog connector: 24 Pin Mazda connector: OEM SWC > 3,5mm Jack / loose wire vehicles with / without BOSE OEM amplified system* temperature display not supported date/time settings not supported fader setting vehicles with CAN Bus not supported blue/white: +12V amp remote dip switch settings for the retrofit device manufacturer (look into the manual) Vehicle application: Mazda 2 (DY) 04/2003 - 10/2007 Mazda 2 (DE) 10/2007 - 05/2015** Mazda 3 (BK) 01/2004 - 03/2009** Mazda 3 (BL) 05/2009 - 09/2013 Mazda 5 (CR) 06/2005 - 10/2010** Mazda 5 (CW) 10/2010 - 08/2015** Mazda 6 (GG/GY) 06/2002 - 02/2008 Mazda 6 (GJ) 02/2013 - 02/2015 Mazda 626 (GF/GW) 06/1997 - 07/2002 Mazda B-Serie II Pickup 07/1999 - 11/2006 Mazda BT-50 01/2007 - 07/2012 Mazda CX-5 (GH) 04/2012 - 02/2015 Mazda CX7 (ER) 10/2007 - 09/2009 Mazda CX7 (ER) 10/2009 - 09/2013 Mazda Demio (DW) 08/1998 - 08/2003 Mazda MPV (LW) 12/2000 - 11/2005 Mazda MX-5 (NB) 04/1998 - 08/2005** Mazda MX-5 (NC) 10/2005 - 02/2009** Mazda MX-5 (NC) 02/2009 - 07/2015** Mazda Premacy (CP) 06/1999 - 05/2005 Mazda RX-8 (SE) 04/2003 - 10/2010 Mazda Tribute (EP) 09/2000 - 11/2005 Following signals are provided: Reimported vehicles or vehicles with different software may be incompatible in functions. SWC *vehicles with BOSE OEM amplified system > item: 13-1190-50 **vehicles with Panasonic OEM HU General installation instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM HU. 2: Disconnect the OEM HU voltage-free. 3: Check all interface connections for correctness voltage-free. Connection and connection sequence: 1: Check settings and hardware configuration of the interface voltage-free. 2: Check configuration of the HU connection cable voltage-free. 3: Connect the HU connection cable according to the operating instructions of the retrofit HU. 4: Connect all other connections according to the operating instructions of the retrofit HU. 5: Connect the entire installation to the vehicle with the main connection last. 6: Software configuration of the interface according to the instructions in the item text and in the manual. 7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others. 8: Function test of steering wheel remote control and vehicle Changes to the configuration of the interface and the HU connection cable: 1: Change configuration voltage-free 2: Reconnection see above 5 to 8 In case of malfunction of the interface or the vehicle: 1: Reinstall the OEM HU 2: Operate the OEM HU 3: Establish CAN bus shut down 4: Check the hardware configuration of the interface 5: Reconnection after CAN Bus shut down see above 5 and 6 More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer. More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions: 1: Connections and changes are to be carried out exclusively by trained specialist installer. 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection. 4: Connections and modifications are made on the user's own responsibility without guarantee of function. 5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface. 6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty. Måske er du også interesseret i følgende produkter ACV AKTIV SYSTEM ADAPTER ISO TIL ISO DKK 349,00
