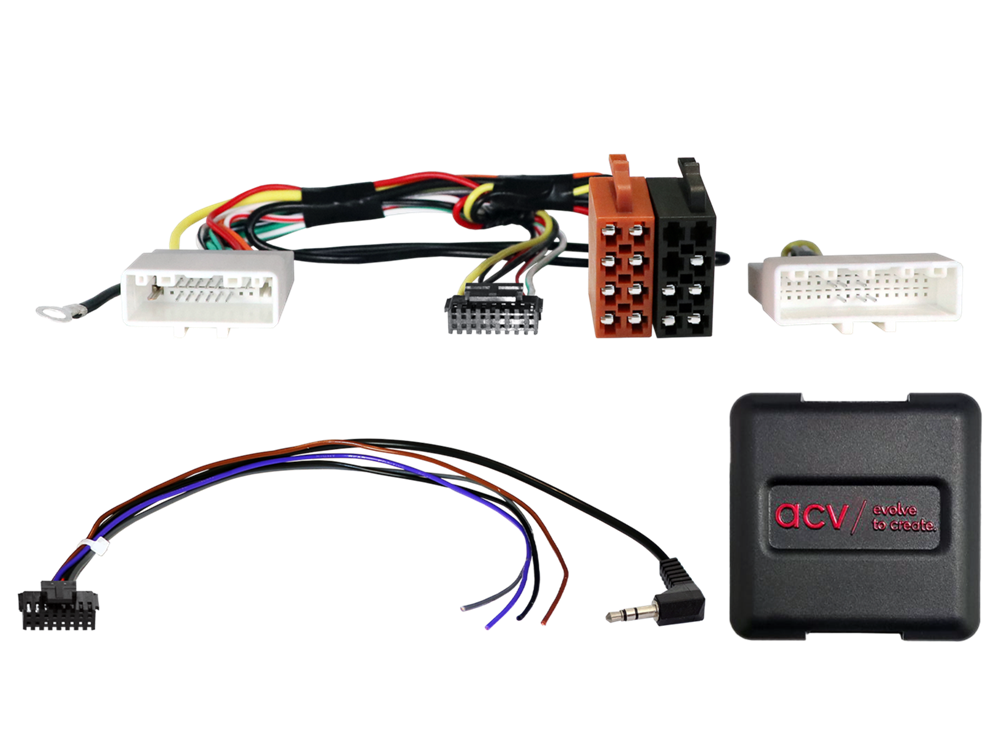

RAT INTERFACE TIL NISSAN DIV 2008> (ALL INCL)

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:
Note:

analog

connector: 20 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire

black: GND clamp 31

vehicles with Blaupunkt / Bosch / Clarion OEM HU
vehicles with OEM amplified system*

vehicles without OEM amplified systems
vehicles without OEM Sat Nav

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan 370Z (Z34) 07/2009 - 03/2013
Nissan Cube (Z12) 01/2010 - 03/2011
Nissan Juke (F15) 10/2010 - 06/2014
Nissan Micra (K13) 03/2011 - 07/2013
Nissan Navara (D40) 04/2010 - 08/2015
Nissan Note (E11) 01/2009 - 08/2013
Nissan NV 200 (M20) 2013 - 09/2016
Nissan Pathfinder (R51) 09/2013 - 05/2015

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*+12V Amp remote Pin 2 next to +12V continious current > check with OEM HU by measuring
*Active system adapter different vehicles ISO>ISO: 13-1190-50

General installation instructions:

Verification:
1: Check all operating functions and vehicle setting functions of the OEM HU.
2: Disconnect the OEM HU voltage-free.
3: Check all interface connections for correctness voltage-free.

Connection and connection sequence:
1: Check settings and hardware configuration of the interface voltage-free.
2: Check configuration of the HU connection cable voltage-free.
3: Connect the HU connection cable according to the operating instructions of the retrofit HU.
4: Connect all other connections according to the operating instructions of the retrofit HU.
5: Connect the entire installation to the vehicle with the main connection last.
6: Software configuration of the interface according to the instructions in the item text and in the manual.
7: Configure the retrofit HU according to the operating instructions of the retrofit device steering wheel remote control/camera/handsfree kit/antenna phantom powering and others.
8: Function test of steering wheel remote control and vehicle

Changes to the configuration of the interface and the HU connection cable:
1: Change configuration voltage-free
2: Reconnection see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Establish CAN bus shut down
4: Check the hardware configuration of the interface
5: Reconnection after CAN Bus shut down see above 5 and 6

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist installer.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
