RAT INTERFACE TIL ISUZU D-MAX 2020 > MED OEM TOUCH SKÆRM

Interface der muliggøre tilslutning af eftermarkedsradio til bilens originale ratbetjening.
Det gør det muligt at styre primær funktioner på radioen.

Passer til følgende modeller:

Stalk adapter Isuzu

Retain your steering wheel control functions, when exchanging your OEM head unit against an aftermarket Radio.

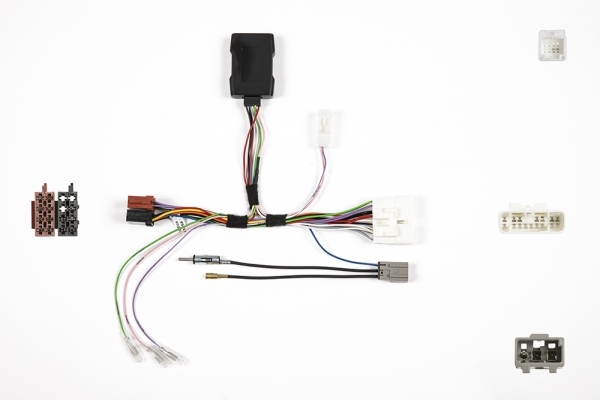

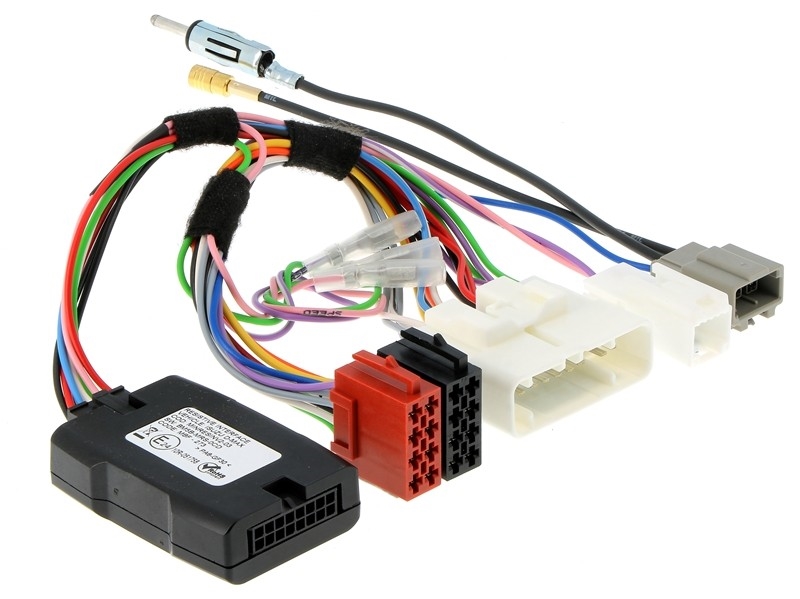

Please compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Note:

analog

connector: 16 Pin Isuzu
connector: OEM AM/FM antenna > DIN(m)
connector: OEM DAB antenna > SMB(f)

connector SWC > unilead (look manual)
vehicles with touch screen OEM Gerät

connection loose wires foot pannel driver side (look manual):
speed OEM purple
reverse OEM red

Vehicle application:

Isuzu D-Max 3.Generation 11/2020 - 2021

Following signals are provided:

SWC
Sættet leveres med universal radiokabel varenr. 40825 RAT INTERFACE KABEL UNIVERSAL TIL 16 PIN MOLEX MICROFIT
