RAT INTERFACE TIL HYUNDAI - KIA 2016> CAN-BUS

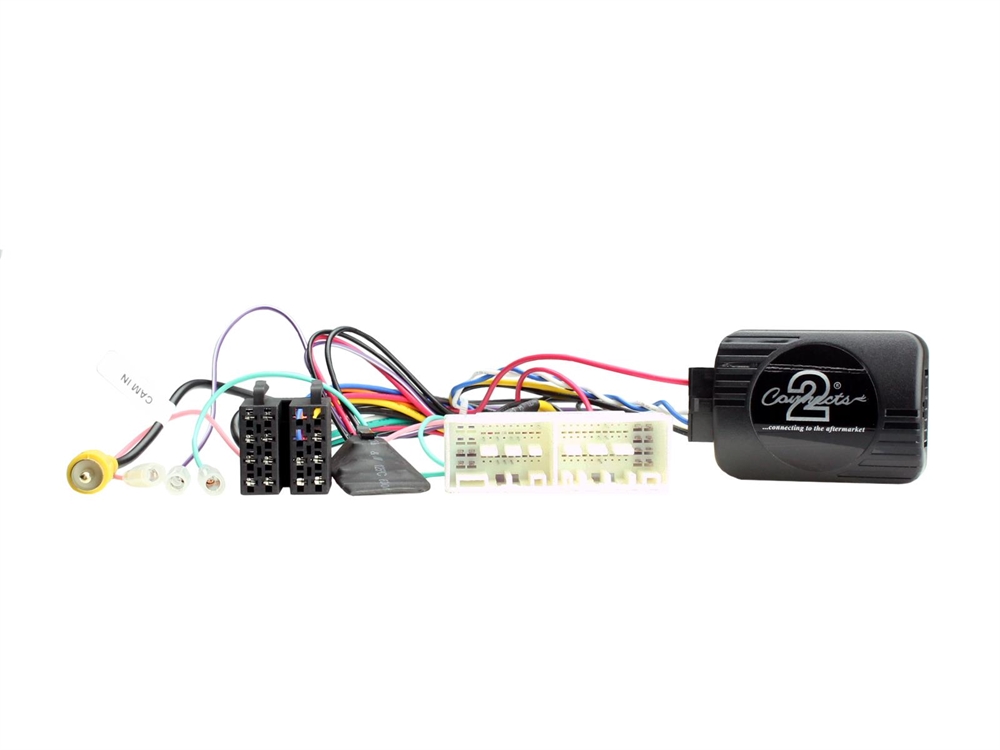

Ratbetjeningsinterface til diverse Hyundai og KIA med standard lydsystem. Beholder det originale bakkamera også. CAN-BUS. Hyundai nyt stik. CTSHY017.2 og CTSKI013.2 er identiske.
Husk at kigge på stikben da de forskellige biler har andre pin adresser så dem skal man selv finde ud af.
CAN Bus

connector: 24 Pin / 18 Pin Hyundai
connector: OEM camera > RCA(m) yellow

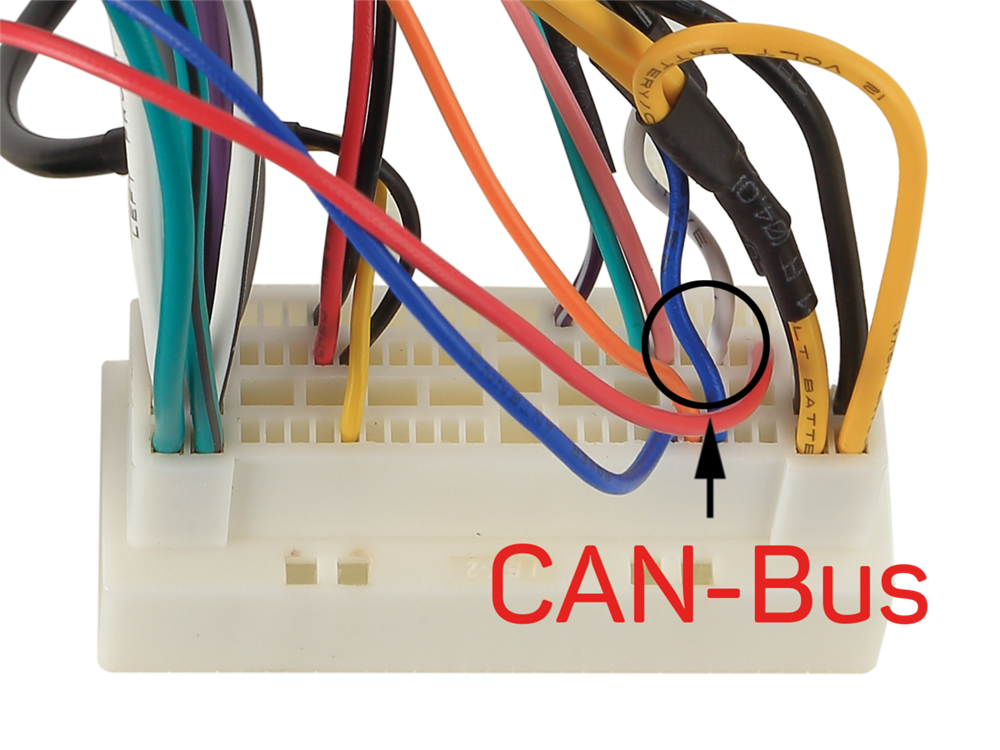

vehicles with CAN Bus (look item picture 4)

OEM camera supply voltage: +6V

vehicles with different pin assignments and vehicles with OEM Sat Nav:

check the pin assignment before connecting to avoid faults or defects on the vehicle or the retrofit device

camera +6V power supply > check for correct pin assignment with OEM HU before installation
Video +/- > check for correct pin assignment with OEM HU before installation

vehicle settings not supported
Hyundai ix35 2017->
Hyundai i30 2017->
Hyundai Tucson 2017->
Hyundai Sonata 2017->
Hyundai kona 2017>
Kia Cee'd 2017->
Kia Rio 2017->
Kia Soul 2017->
Kia Sorento 2017->
Kia Sportage 2017->
Kia Venga 2017->

Der skal bruges en af nedenstående kabler.
