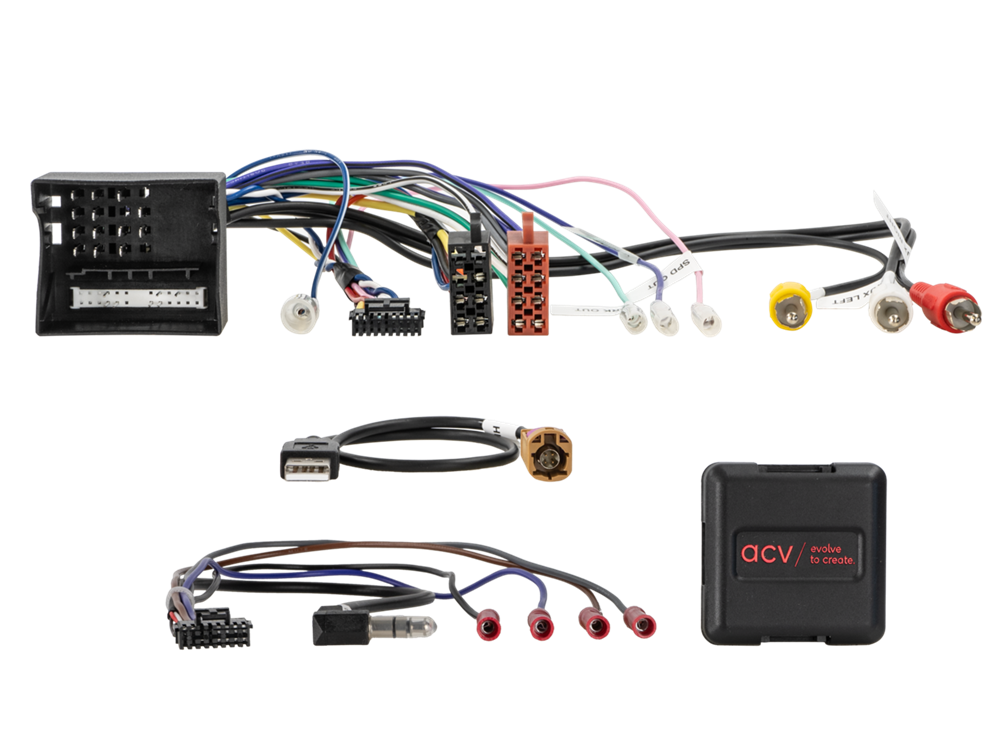

Varenr.: 42xpo008
På lager hos vores leverandør
Download manual
Note:
CAN Bus
connector: 40 Pin Quadlock Porsche
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM AUX > RCA(m) red/white
connector: OEM USB LVDS > USB-A
connector: OEM rear view camera > RCA(m) yellow
vehicles with PCM 3.1 OEM HU
vehicles without OEM 360° camera system
vehicles without MOST OEM amplified system
vehicles with MOST OEM amplified system:
SWC Porsche different vehicles 40Pin Multilead Amp MOST > item: 42xpo007
PDC supported
vehicle settings not supported
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Porsche 911 (991) 11/2011 - 01/2017
Porsche Cayenne (92A/958) 05/2010 - 12/2017
Porsche Macan (95B) 04/2014 - 08/2018
Porsche Panamera (970) 09/2009 - 07/2016
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
