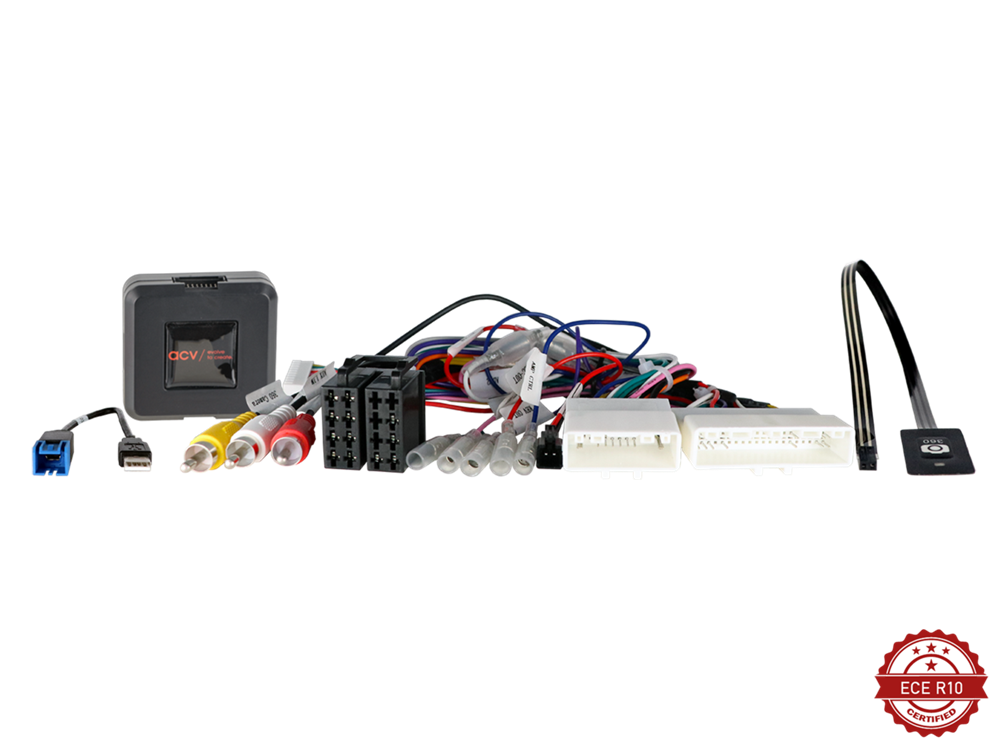

RAT INTERFACE NISSAN ALTIMA/QASHQAI 2018-2022 (ALL INCL) KAMERA/USB/AUX/ANT BIBEHOLDELSE

Note:

CAN Bus

connector: 20 Pin / 40 Pin Nissan
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM antenna: DIN(m) / blue +12V antenna remote
connector: OEM AUX > RCA(m) red/white
connector: OEM USB > USB-A
connector: OEM 360° camera system > RCA(m) yellow

vehicles with/without OEM 360° camera system
vehicles with OEM Navigation
vehicles with model equipment Visia
vehicles with model equipment Acenta
vehicles with model equipment N-Way
vehicles with model equipment N-Connecta

vehicles with model equipment N-Connecta / N-Tec / Tekna / Tekna+ > Nissan Savety Shield not supported:
motion detection
parking assistant
drowsiness detection
blind spot assist

date/time setting > BC display in AUX position
BC reset factory settings and reconfiguration required if AUX menu is missing

track forward / track back > function can be swapped

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Nissan Altima (L34) 09/2018 - 06/2022
Nissan Qashqai (J11) 10/2018 - 06/2021

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

date/time setting supported
360° OEM camera system supported
