RAT INTERFACE MULTI SEAT/SKODA VW MED 40/52 PIN QUADLOCK (ALL INCL)

Stalk Adapter Seat / Skoda / VW

Keep the original steering wheel remote control functions when replacing the factory radio with a retrofit HU.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit HU, individual operating functions may be omitted or replaced by other functions.

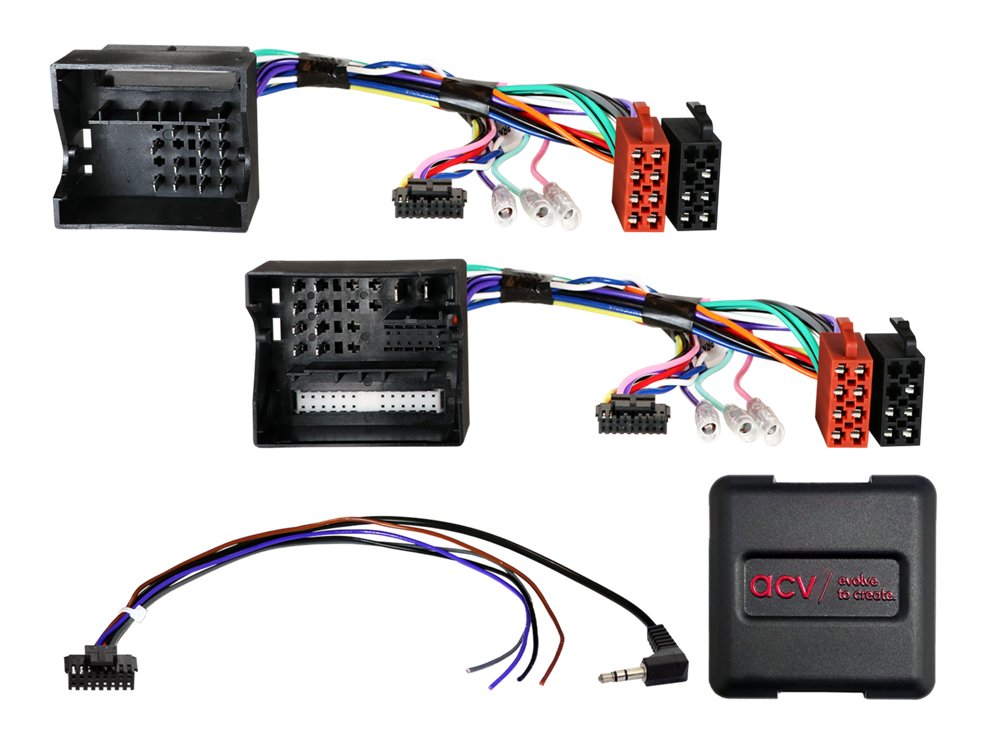

Compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.

Check if one of the listed OEM head units were installed originally.

Also check vehicle functionality, vehicle settings and SWC functionality before final assembly.
Note:

CAN Bus

connector: 40 Pin Quadlock VAG
connector: 52 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles without OEM amplified system

vehicles Seat with/without MIB-PQ system

vehicles Seat without Seat Exeo (3R) 03/2009 - 05/2013

vehicles Skoda with Bolero / Stream OEM HU
vehicles Skoda with Amundson / Columbus OEM Sat Nav
vehicles Skoda with MIB-PQ system

vehicles Skoda without Technisat OEM HU

vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM HU
vehicles with RNS315 / RNS510 OEM Sat Nav
vehicles with VW with MIB-PQ system

vehicles without RCD320 OEM HU with ISO connector
vehicles without OEM amplified system

vehicles with 40 Pin Quadlock OEM amplified system:
SWC Audi/Seat/Skoda/VW diverse Fahrzeuge Quadlock > item: LFB 42a-1324-001

vehicles with 52 Pin Quadlock:
vehicle settings not supported
E-Call not supported

vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02

vehicles with rear view camera:
Rear view camera adapter OEM VW different vehicles MIB-PQ > item: 771324-1037

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Seat
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Alhambra (7N) 06/2016 - 08/2019
Seat Altea (5P) 06/2004 - 03/2009
Seat Altea (5P) 04/2009 - 07/2015
Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04-2009 - 11/2012
Seat Mii (AA) 12/2011 - 06/2019*
Seat Mii (AA) 05/2017 - 06/2019*
Seat Mii (AA) 01/2020 - 02/2021*
Seat Toledo (5P) 01/2005 - 10/2009
Seat Toledo (NH) 03/2013 - 05/2015

Skoda
Skoda Citigo (AA) 06/2012 - 05/2017*
Skoda Citigo (AA) 05/2017 - 06/2019*
Skoda Citigo iv (AA) 01/2020 - 08/2021*
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Superb (3T) 06/2013 - 05/2015
Skoda Yeti (5L) 08/2009 - 10/2013

VW
VW Amarok (2H) 03/2010 - 08/2016
VW Amarok (2H) 09/2016 - 07/2020
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caddy IV (DU) 06/2015 - 09/2020
VW CC (3C/35) 06/2008 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Fox (5Z) 04/2005 - 08/2011
VW Fusca (Brazil) 2005 - 2011
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Grand California (SY/SZ) 03/2019 - 06/2024
VW Jetta III (1K5/1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Magotan (Asia) 2005 - 2011
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo IV (9N) 03/2005 - 03/2009
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sagitar (China) 2005 - 2011
VW Sharan II (7N) 08/2010 - 04/2015
VW Sharan II (7N) 07/2015 - 10/2021
VW Suran 2009 - 2015
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Tiguan II (5N) 05/2016 - 05/2021
VW Touareg I (7L) 11/2006 - 02/2010
VW Touran (1T) 01/2003 - 09/2006
VW Touran (1T) 11/2006 - 04/2010
VW Touran (1T) 08/2010 - 04/2015
VW T6 (7HC) 07/2015 - 08/2019
VW T6.1 (7HC) 10/2019 - 04/2024
VW UP! (AA) 12/2011 - 06/2016*
VW UP! (AA) 07/2016 - 12/2020*
VW Vento (Mexico) 2005 - 2011

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

*vehicles without OEM amplified system
