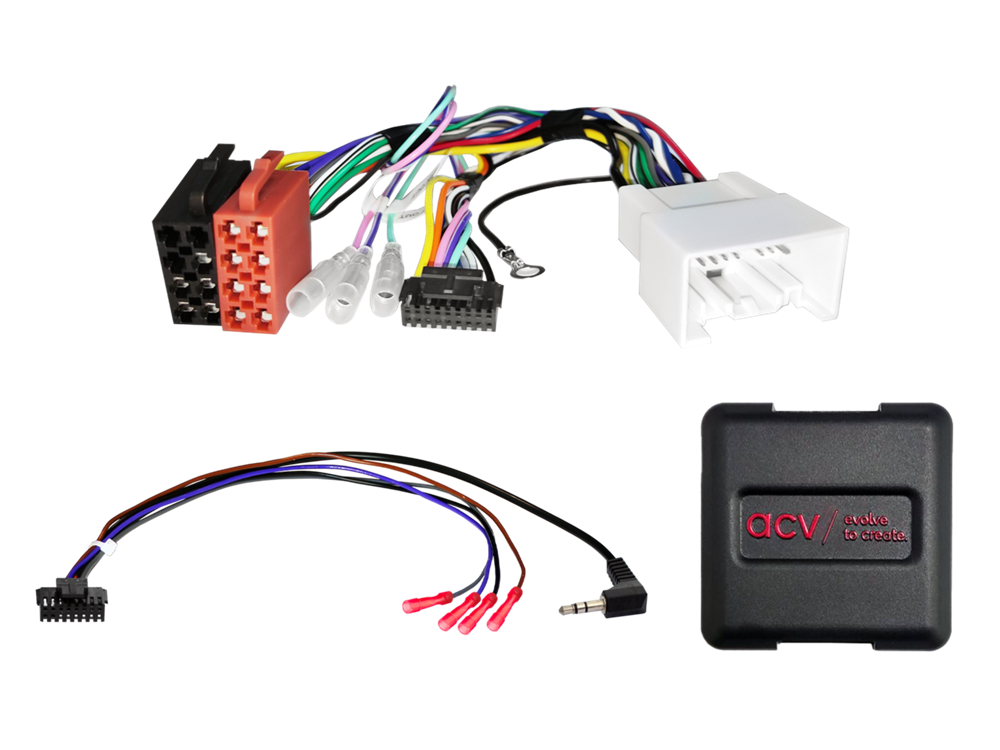

RAT INTERFACE MITSUBISHI OUTLANDER 2012 - 2022 (ALL INCL)

Note:

CAN Bus

connector: 20 Pin Mitsubishi
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles without Rockford Fosgate OEM amplified system*

black: GND clamp 31

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mitsubishi Outlander (CW0) 10/2012 - 10/2015
Mitsubishi Outlander (CW0) 10/2015 - 08/2018
Mitsubishi Outlander (CW0) 09/2018 - 03/2022

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
