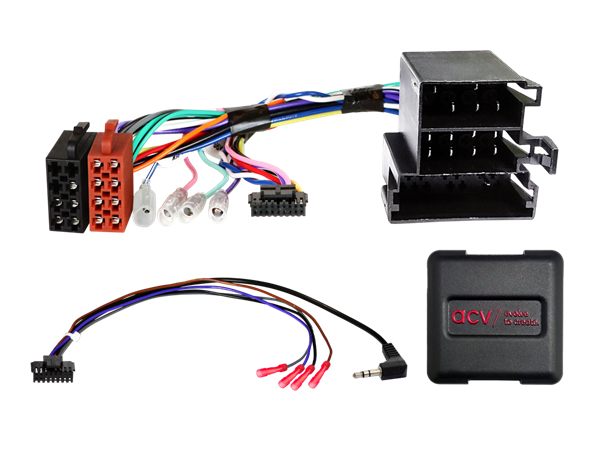

RAT INTERFACE IVECO DAILY 2014 - 2019 (ALL INCL)

Note:

CAN Bus

connector: ISO / Mini ISO
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with 2 x 4 function Fiat Ducato steering wheel / buttons on the frontside
vehicles with open dash

vehicles with 1-DIN Bosch MY2014 LDWS OEM HU:
+12V continuous current clamp 30 / +12V ignition current clamp 15 change if necessary

vehicles 2-DIN Delphi OEM HU
vehicles without Magneti Marelli OEM Sat Nav

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Iveco Daily VI 07/2014 - 2019

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC
