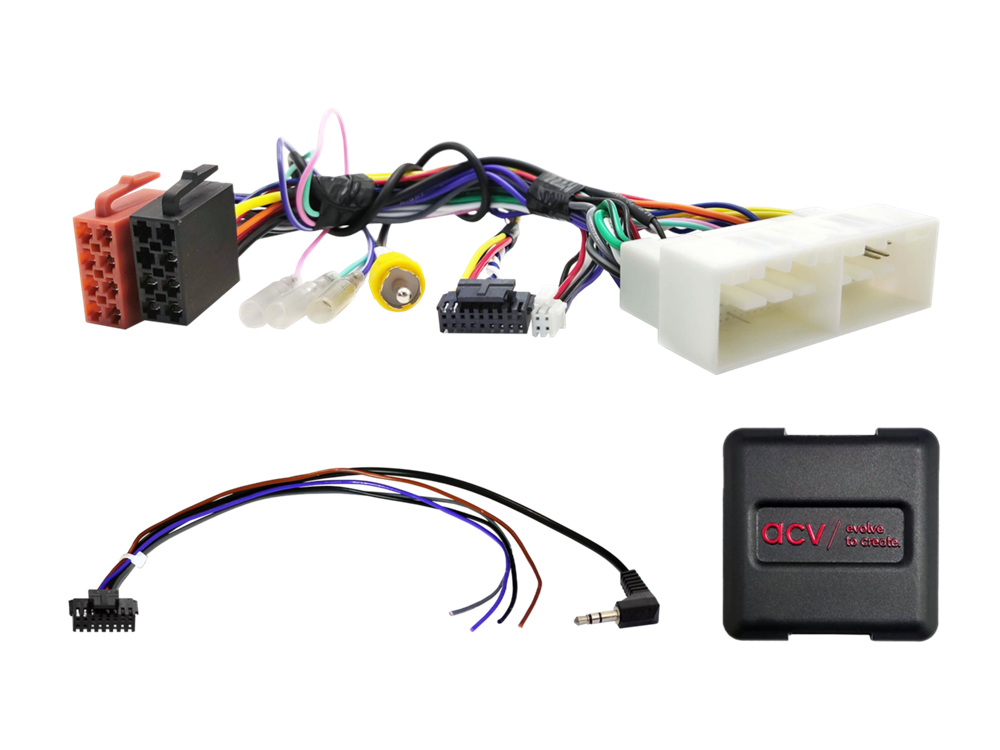

RAT INTERFACE HYUNDAI/KIA 2016> CAN-BUS MED KAMERA BIBEHOLDELSE (ALL INCL)

Note:

CAN Bus

connector: 24 Pin / 18 Pin Hyundai
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM rear view camera > RCA(m) yellow

vehicles with CAN Bus with Sat Nav:
CAN bus (see item image 2)

vehicles without CAN bus without analog Sat Nav:
LFB Hyundai/Kia 35Pin/38Pin multilead camera/analog > item: 42xki012

vehicles with different pin assignments and vehicles with OEM Sat Nav:

check the pin assignment before connecting to avoid faults or defects on the vehicle or the retrofit device

OEM rear camera supply voltage +6V:
check for correct assignment with OEM HU by measuring before installation

OEM rear camera video signal:
check Video (+/-) for correct assignment with OEM HU before installation

vehicle settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Hyundai
Hyundai i30 (PED) 12/2016 - 08/2018
Hyundai i30 (PED) 09/2018 - 12/2020
Hyundai i30 (PED) 10/2020 - 06/2024
Hyundai Tucson (TL) 07/2018 - 12/2020

Kia
Kia Cee'd (JD) 06/2018 - 09/2021
Kia ProCeed (JD) 06/2018 - 09/2021
Kia Rio (YB) 02/2017 - 02/2020
Kia Rio (YB) 08/2020 - 04/2023
Kia Sorento (UM) 10/2017 - 08/2020
Kia Soul (PS) 11/2016 - 03/2019
Kia Sportage (QL) 01/2016 - 06/2018*
Kia Sportage (QL) 07/2018 - 01/2022*

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*centre console control not supported
