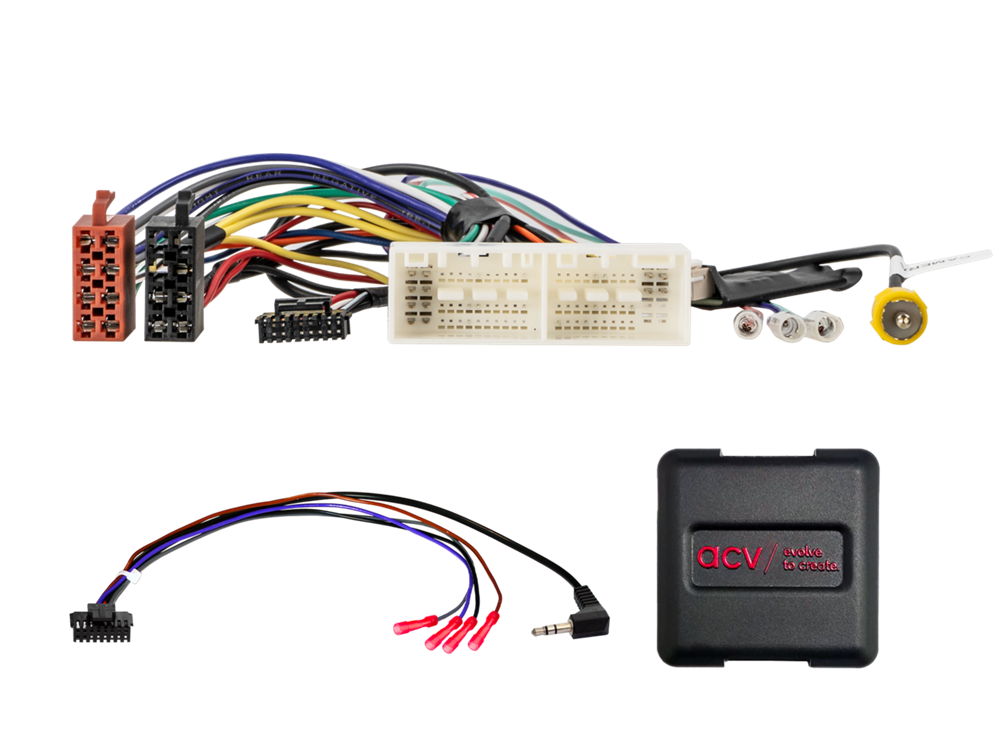

RAT INTERFACE HYUNDAI/KIA 2014> ANALOG MED KAMERA BIBEHOLDELSE (ALL INCL)

Note:

analog

connector: 24 Pin / 18 Pin Hyundai
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM rear view camera > RCA(m) yellow

vehicles without CAN Bus

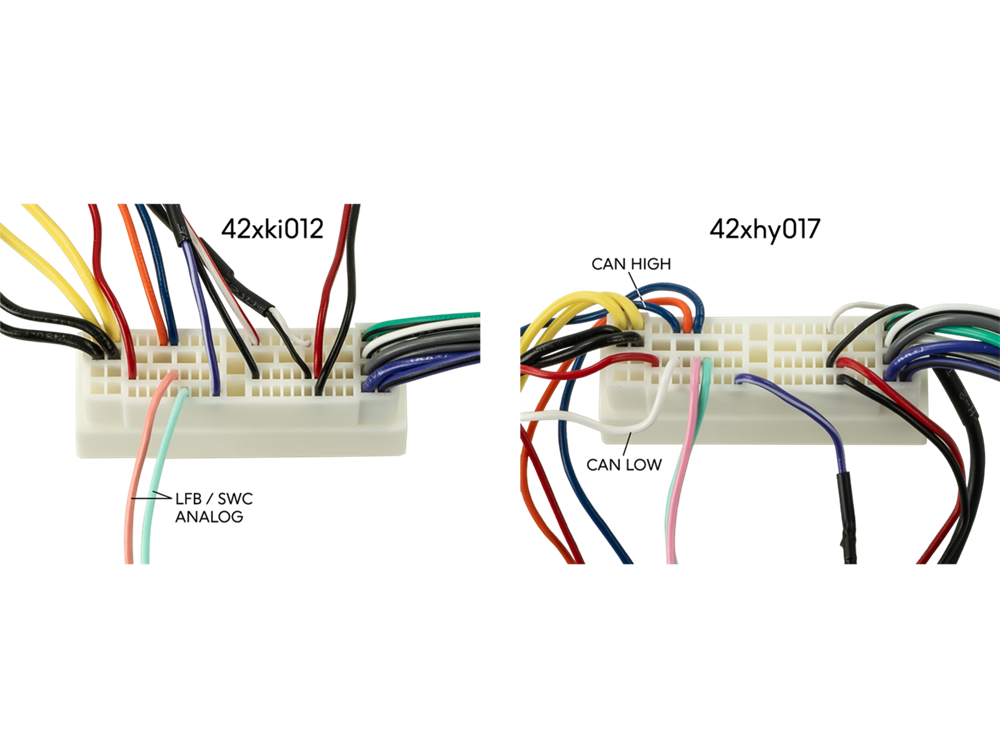

vehicles with CAN Bus (look item picture 2)
SWC Hyundai/Kia 35Pin/38Pin Multilead camera/CAN Bus > item: 42xhy017

vehicles with different pin assignments and vehicles with OEM Sat Nav:

check the pin assignment before connecting to avoid faults or defects on the vehicle or the retrofit device

OEM rear camera supply voltage +6V:
check for correct assignment with OEM HU by measuring before installation

OEM rear camera video signal:
check Video (+/-) for correct assignment with OEM HU before installation

vehicle settings not supported

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Hyundai
Hyundai H350 Bus 06/2016 - 12/2019*
Hyundai H350 Cargo 06/2015 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018
Hyundai i20 (GB) 07/2018 - 08/2020
Hyundai i30 (PED) 12/2016 - 08/2018
Hyundai i30 (PED) 09/2018 - 12/2020
Hyundai i30 (PED) 10/2020 - 2023
Hyundai i40 (VF) 05/2015 - 08/2018
Hyundai Kona (OS) 11/2017 - 01/2021
Hyundai Tucson (TL) 07/2018 - 12/2020

Kia
Kia Cee'd (JD) 09/2015 - 06/2018
Kia Forte 2016 - 2018
Kia Picanto (JA) 04/2017 - 07/2020
Kia Picanto (JA) 07/2020 - 2023
Kia ProCeed (JD) 09/2015 - 06/2018
Kia Rio (YB) 02/2017 - 02/2020
Kia Rio (YB) 08/2020 - 04/2023
Kia Soul (PS) 11/2016 - 03/2019
Kia Sportage (QL) 01/2016 - 06/2018**
Kia Sportage (QL) 07/2018 - 01/2022**

The following signals are provided:

reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles with OEM amplified system
**centre console control not supported
