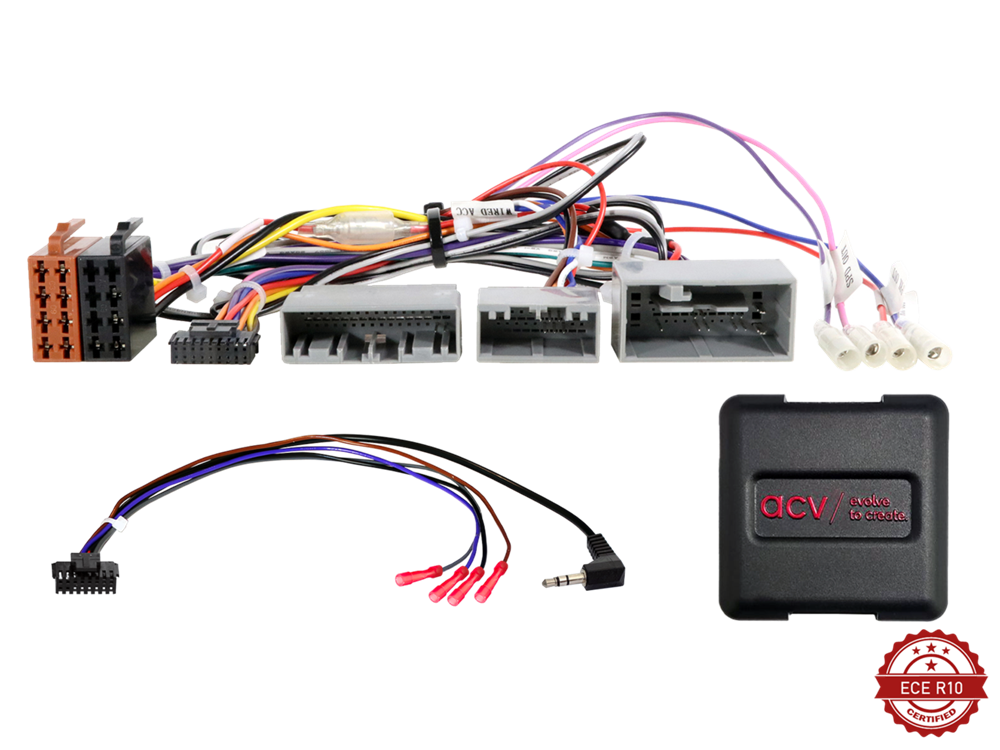

RAT INTERFACE HONDA CIVIC/CR-V 2012-2018 (ALL INCL)

Note:

CAN Bus

connector: 24 Pin / 20 Pin Honda
connector: 32 Pin Bluetooth module connector

vehicles without Premium OEM amplified system
vehicles without OEM Sat Nav
vehicles without Fujitsu Ten OEM Connect system

date/time setting supported
vehicle settings supported

vehicles with basic OEM amplified systems +12V amp remote Pin 16 (item picture 2):
Active system adapter different vehicles ISO>ISO > item: 13-1190-50

Vehicle application:

Honda Civic (FK) 02/2012 - 01/2015
Honda Civic Limousine (FK) 05/2015 - 06/2017
Honds Civic Tourer (FK) 02/2014 - 01/2015
Honda CR-V (RE5) 11/2012 - 02/2015
Honda CR-V (RE5) 03/2015 - 08/2018

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
