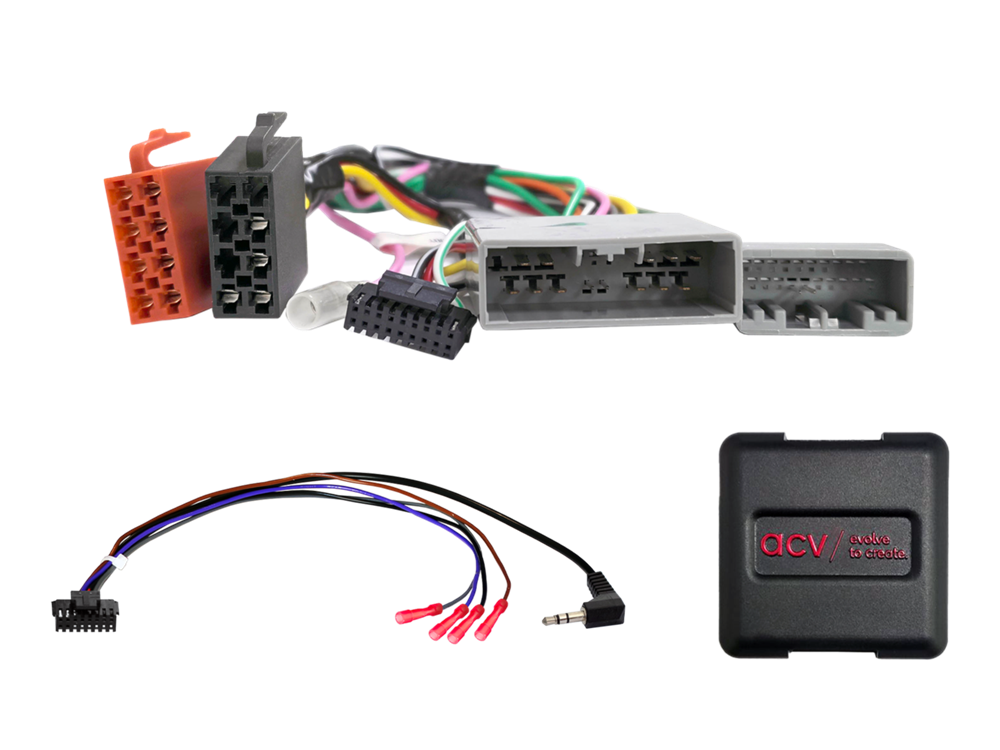

RAT INTERFACE HONDA 2004> (ALL INCL)

Note:

analog

connector: 17 Pin / 20 Pin Honda
connector: OEM SWC > 3,5mm Jack / loose wire

vehicles with OEM Pioneer HU

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Honda Civic (FN/FD/FG/FA/FK) 09/2005 - 12/2011*
Honda Civic Hybrid (FD3) 04/2006 - 02/2010*
Honda CR-V (RE5) 01/2007 - 10/2010**
Honda S2000 (AP1) 01/2004 - 06/2009

The following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

*vehicles without colour top monitor OEM Sat Nav
*vehicles with climate control / top display > item: 42xho002
**vehicles with 2VNO OEM Sat Nav SWC connection 22 Pin connector green > Pin 4 / Pin 5
