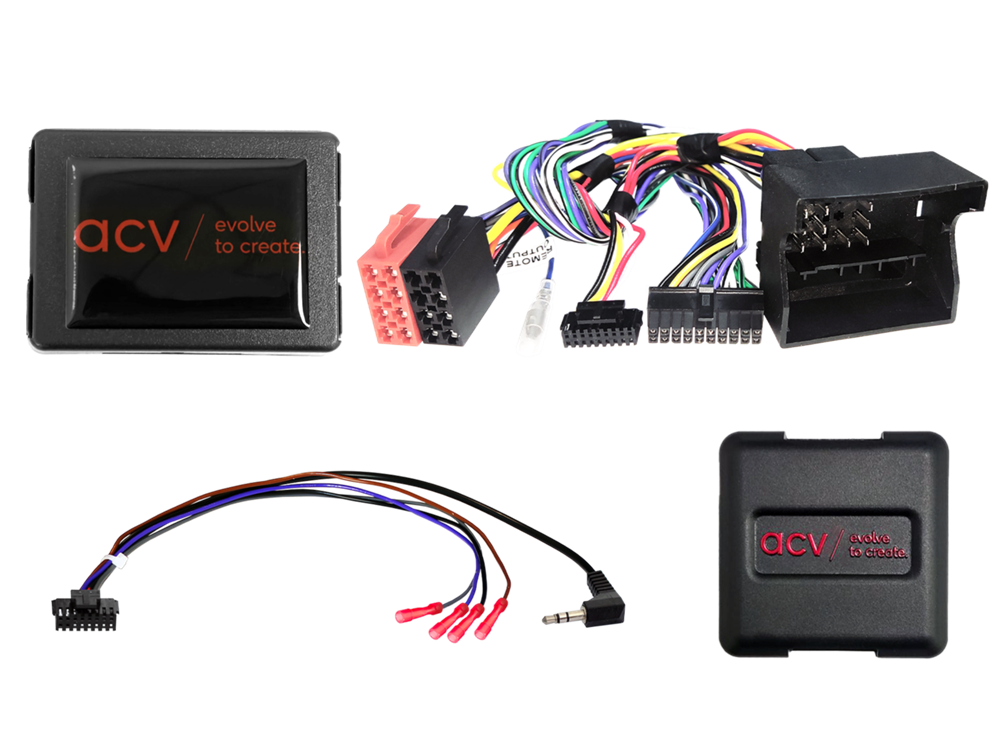

RAT INTERFACE BMW/MINI IBUS/AMP (ALL INCL)

Note:

I Bus

connector: 40 Pin Quadlock BMW
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM amplified system 4 channel > speaker output front/rear*

vehicles with Business OEM HU
vehicles with OEM amplified system

vehicles with Professional OEM Sat Nav:
BMW extension Quadlock(f) > Quadlock(m)/antenna 6.5m > item: 1020-21-6500-0

vehicles without Harman Kadon DSP OEM amplified system

OEM devices must be disconnected:
CD-Changer / TV-Tuner / Phone module

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

BMW 3er (E46) 07/1998 - 02/2007
BMW 5er (E39) 09/2000 - 05/2004
BMW X3 (E83) 02/2004 - 08/2010
BMW X5 (E53) 03/2000 - 11/2006
BMW Z4 (E85) 03/2002 - 08/2008**

BMW Mini (R50/R53) 06/2001 - 11/2006
BMW Mini (R52) 07/2004 - 08/2008

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

SWC

OEM amplified system

*level adjustment
**vehicles with soft top
