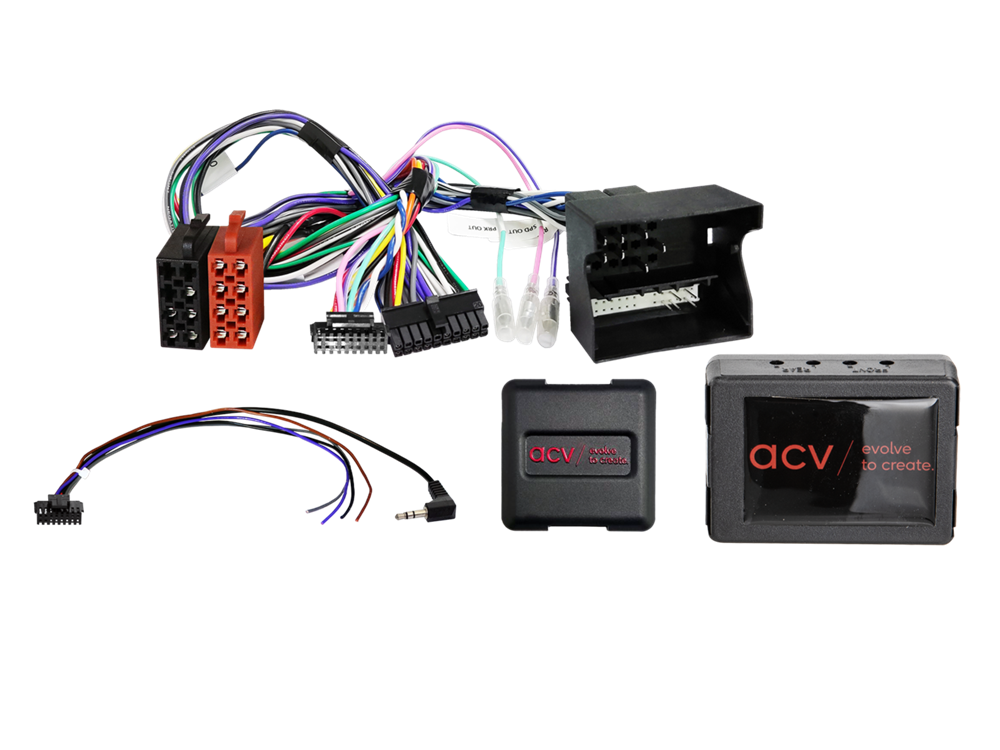

RAT INTERFACE AUDI DIV 2000 > 2018 MED OEM FORSTÆRKER (ALL INCL)

Note:

CAN Bus

connector: 40 Pin Quadlock VAG
connector: 2 channel / 4 channel OEM amplified system > speaker output front/rear level adjustnemt

blue/white: +12V amplified system remote

vehicles with Blaupunkt / Matsushita / Grundig Chorus II / Concert II / Symphony II 2 DIN OEM HU
vehicles with RNS-E 16:9 OEM Nav Sat

vehicles without BNS 5.0 monochrome OEM Sat Nav

vehicles with BNS 5.0 monochrome OEM Sat Nav:
SWC Audi/Seat/Skoda/VW different vehicles 40Pin Quadlock > item: 42a-1324-001
Active system adapter Audi/VW Quadlock MQS-housing: 13-1424-25

vehicles Audi TT 08/2010 - 04/2010 with non-functioning OEM sound system:
amplified system coding from CAN Bus activation to remote activation required if possible
Address J525 > activation 1 remote (0xxx?xx)

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Audi A1 (8X) 07/2010 - 04/2018*
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 B6 (8E) 11/2000 - 10/2005
Audi A4 B7 (8E) 11/2004 - 02/2009
Audi A6 (C5/B4) 05/2001 - 03/2006**
Audi Q3 (8U) 10/2011 - 11/2014*
Audi Q3 (8U) 02/2015 - 06/2018*
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8J) 04/2006 - 04/2010
Audi TT (8J) 08/2010 - 03/2014

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

OEM amplified system 2 channel / 4 channel

*vehicles with Chorus OEM HU with monochrome display
**vehicles with RNS-E 16:9 OEM Sat Nav
