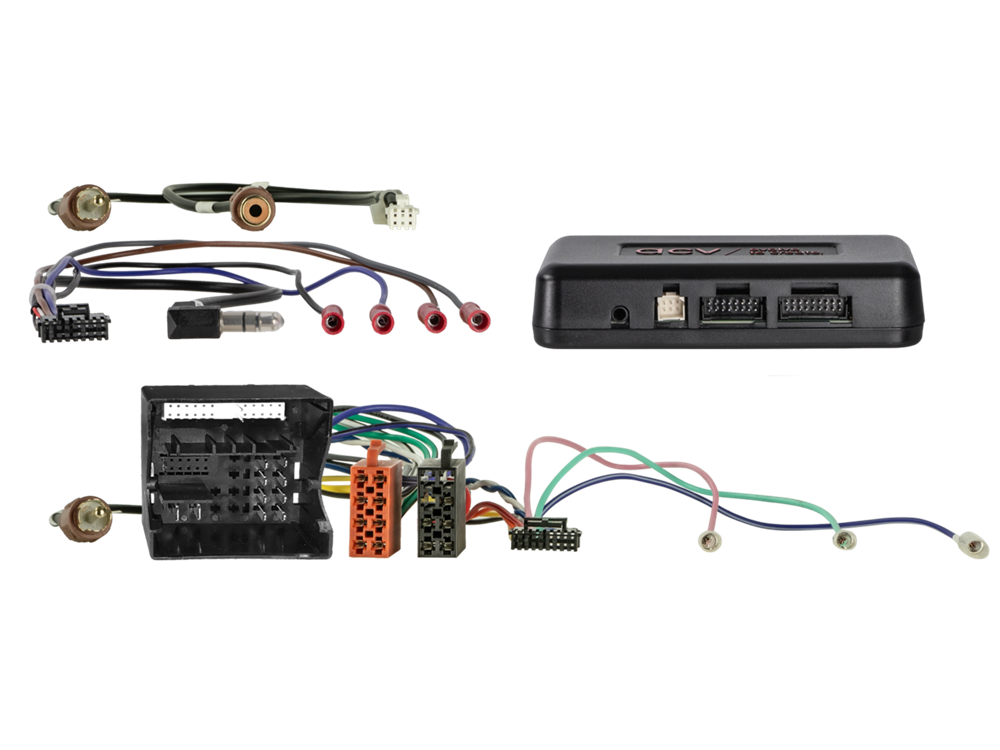

Info adapter / Ratbetjening til modeller hvor bilens informationer og ac er i original radio.
Note:
Can Bus
connector: 52 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM rear view camera > RCA(m) ochre
vehicles with MIB-II systems
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02
vehicles with/without amplified system
not for vehicles:
with OEM MOST amplified system
with open dash
without any OEM preparation > SWC / speakers / HU
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
MAN
MAN TGE 2017 - 2025*/******
Seat
Seat Arona (KJ) 11/2017 - 06/2021*/**
Seat Ateca (5FP) 08/2016 - 08/2020*/**
Seat Ateca (5FP) 08/2020 -2025*/**
Seat Ibiza (6P) 07/2015 - 04/2017*/**/***
Seat Ibiza (KJ) 07/2017 - 03/2021*/**/***
Seat Leon (5F) 11/2012 - 12/2016*/***/****
Seat Leon (5F) 11/2016 - 01/2020*/***/****
Skoda
Skoda Fabia III (5J) 11/2014 - 08/2018
Skoda Fabia III (5J) 08/2018 - 04/2022
Skoda Rapid (NH) 04/2015 - 05/2017
Skoda Rapid (NH) 05/2017 - 02/2019
VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/****
VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020*/*******
VW Golf Sportsvan (AUV) 03/2014 - 10/2017*/*******
VW Golf Sportsvan (AUV) 10/2017 - 06/2020*/*******
VW Grand California (SY/SZ) 03/2019 - 06/2024*/****
VW Polo V (6R) 04/2014 - 07/2017*/*******
VW Polo VI (AW) 11/2017 - 05/2021*/*******
VW T6.1 (7HC) 11/2019 - 04/2024*
VW Taigo (CS) 10/2021 - 2025
VW Touran (5T) 09/2015 - 2025*/****
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse signal
green: GND park brake signal
yellow/black: GND telephone mute signal
SWC
visualisation climate control
visualisation OPS
CAR vehicle settings supported
*MIB II OEM system
**5" OEM Touchscreen coulour monitor
***6,5" OEM Touchscreen coulour monitor
****8" Media Plus OEM HU / Composition Media OEM HU
*****8" Composition Media OEM HU
******8" Media Advanced OEM HU
*******Composition Media OEM HU
Optional:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-02
