Varenr.: 43xvw03
På lager hos vores leverandør
Download manual

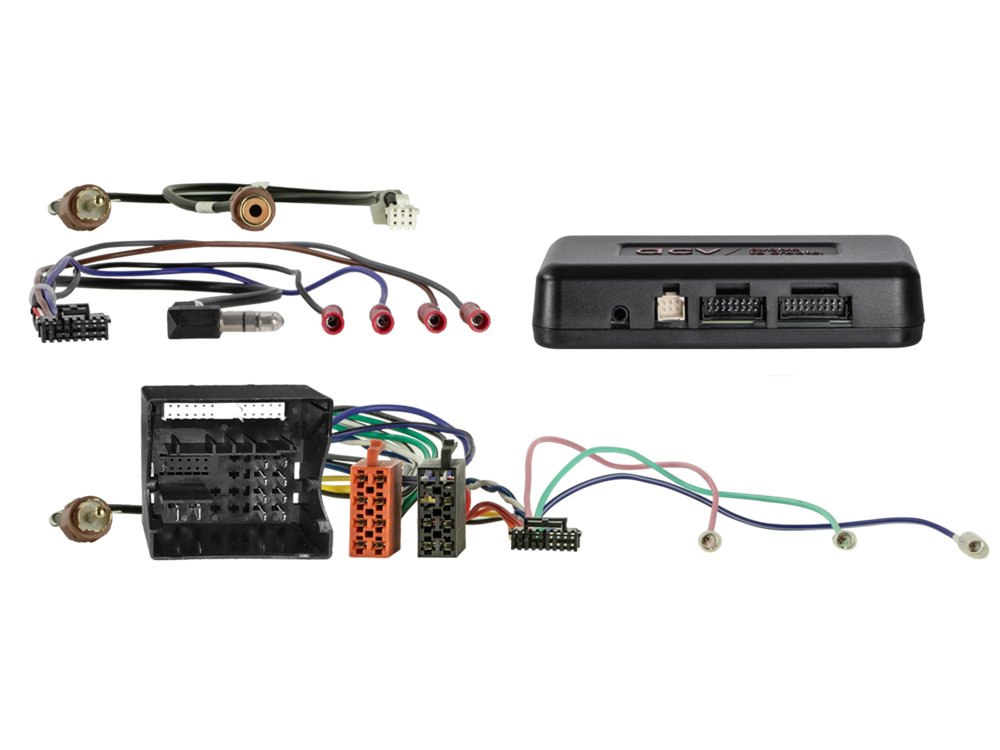

Info adapter / Ratbetjening til modeller hvor bilens informationer og ac er i original radio.
Note:
connector: 52 Pin Quadlock VAG
connector: OEM SWC > 3,5mm Jack / loose wire
connector: OEM rear view camera > RCA(m) ochre
vehicles with MIB-PQ OEM system
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

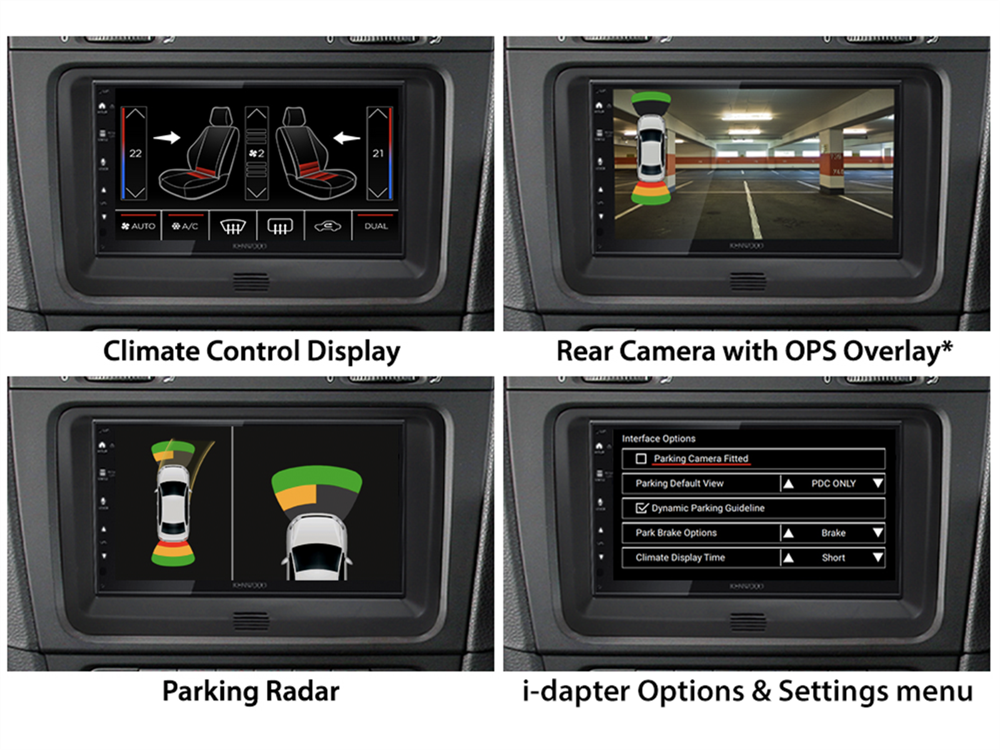

visualisation i-adapter settings > retrofit HU rear view camera input
visualisation OPS > retrofit HU rear view camera input
visualisation Klinatronik > retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control > interface settings: item: 43x-remote
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with parking assistance front PDC > front PDC is shown after ignition in display
exit the display > via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
depending on the vehicle equipment and software:
not all vehicle settings are supported
not all vehicle functions are supported
not all vehicle information is visualised
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock > item: 1424-28
vehicles without amplified system*
not for vehicles:
with OEM Most amplified system
with open dash
without any OEM preparation > SWC / speakers / HU

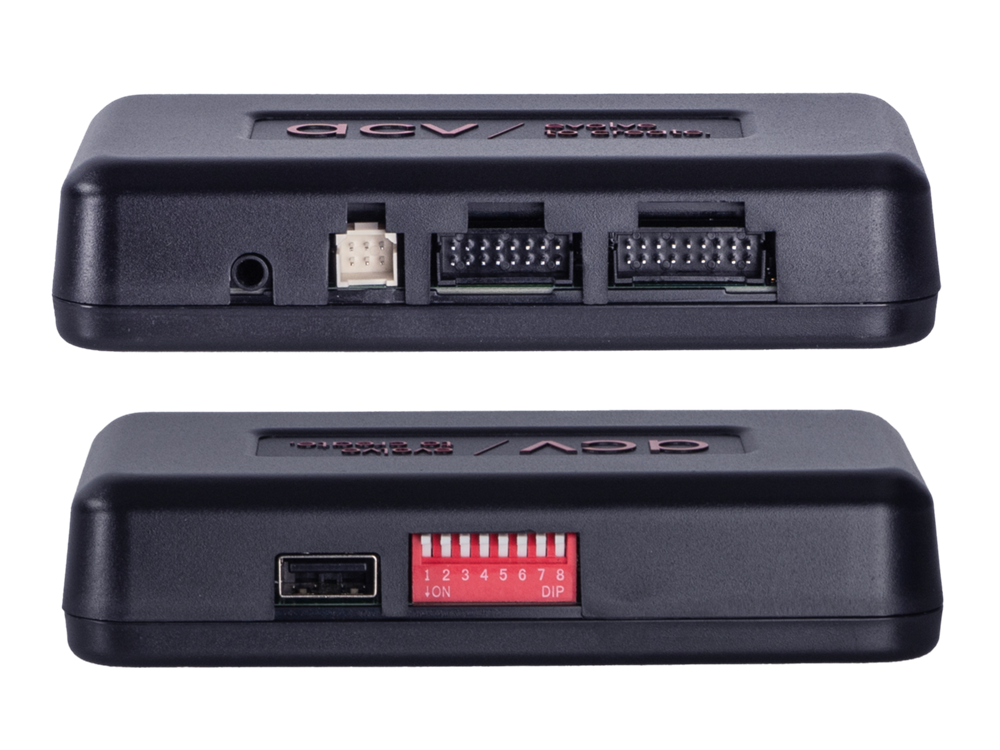

dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Skoda
Skoda Yeti (5L) 10/2013 - 07/2017*
VW
VW Beetle (16) 06/2016 - 03/2018*
VW Caddy IV (DU) 06/2015 - 09/2020
VW Jetta (16) 2015 - 2018
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019
VW Tiguan II (5N) 05/2016 - 05/2021
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC
visualisation climate control supported
visualisation OPS supported
CAR vehicle settings supported
*Skoda Yeti Active Sound OEM amplified system supported
*VW Beetle Composition Media OEM HU Dynaudio OEM amplified system supported
*VW Beetle Fender OEM amplified system not supported
