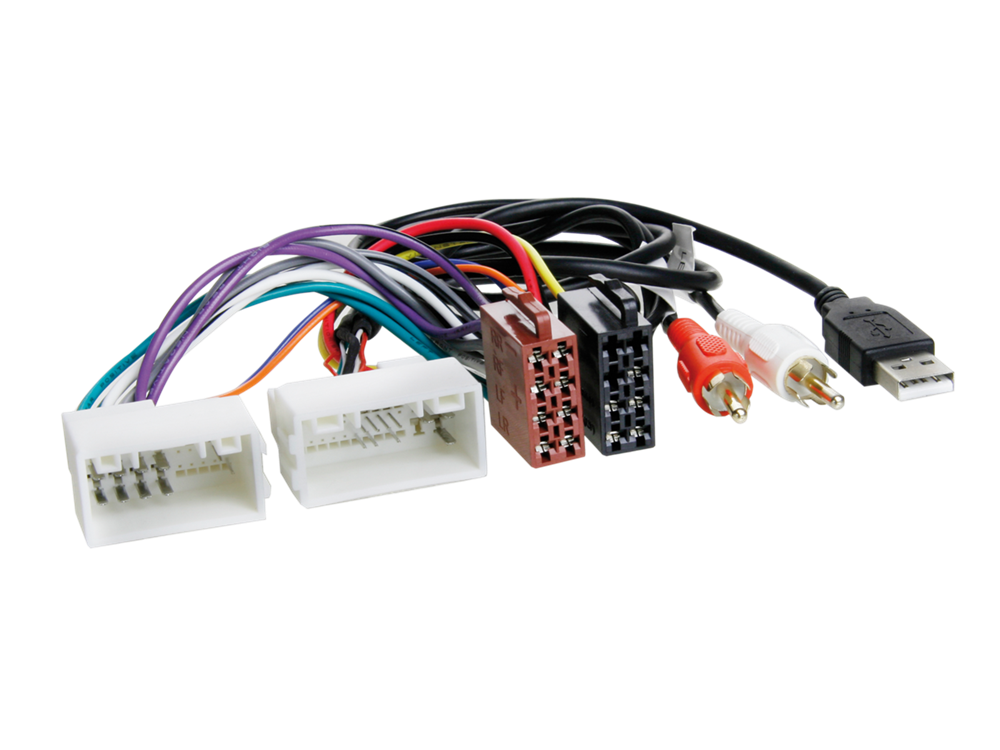

ISO STIK M/USB-AUX BIBEHOLDELSE HYUNDAI/KIA 2008 >

connector: 24 Pin / 18 Pin Hyundai / Kia
connector: OEM AUX > RCA red/white
connector: OEM USB > USB-A

vehicles without OEM amplified system

vehicles 2016> +12V ignition current clamp 15 fuse box fused if necessary
vehicles 2016> without OEM Sat Nav

vehicles with different pin assignments and vehicles with OEM navigation:

check the pin assignment before connecting to avoid faults or defects on the vehicle or the aftermarket device

AUX check pin assignment with OEM HU before connection
USB check pin assignment with OEM HU befor connection

USB Apple Car Play / Android Car not supported in all vehicles

Use case:

HU connector power/speaker

Vehicle application:

Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H1 (TQ) 07/2008 - 08/2018*
Hyundai H1 (TQ) 09/2019 - 07/2020*
Hyundai H350 2015 - 2016
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018
Hyundai i20 (GB) 07/2018 -09/2020*
Hyundai i30 (GD/GDH) 07/2012 - 04/2015
Hyundai i40 (VF) 09/2011 - 05/2015**
Hyundai i40 (VF) 05/2015 - 08/2018**
Hyundai i40 (VF) 08/2018 - 07/2019**
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021*
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018
Hyundai Santa-Fe (DM) 10/2012 - 11/2015
Hyundai Santa-Fe (DM) 12/2015 - 08/2018*
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Hyundai Tucson (TL) 07/2015 - 07/2018*
Hyundai Tucson (TL) 07/2018 - 12/2020*

Kia
Kia Carnival (VQ) 2015 - 2021*
Kia Cee'd (JD) 06/2012 - 09/2015
Kia Forte 2012 - 2016
Kia Optima (TF) 06/2012 - 09/2015
Kia Picanto (TA) 09/2011 - 03/2017
Kia Pro-Cee'd (JD) 07/2013 - 09/2015
Kia Rio (UB) 09/2011 - 03/2015
Kia Rio (UB) 01/2015 - 01/2017
Kia Rio (YB) 02/2017 - 02/2020***
Kia Rio (YB) 08/2020 - 04/2023***
Kia Sedona 2015 - 2021*
Kia Sorento (XM) 10/2012 - 03/2015
Kia Sorento (UM) 04/2015 - 08/2020*
Kia Soul (AM) 09/2011 - 03/2014
Kia Soul (PS) 03/2014 - 11/2016
Kia Sportage (SL) 08/2010 - 03/2014
Kia Sportage (SL) 03/2014 - 01/2016

*vehicles 2016> without OEM Sat Nav
**vehicles with Continental OEM Sat Nav
***vehicles with Basic OEM HU with 4 radio station buttons / 1 x FAV / 1 x BACK
