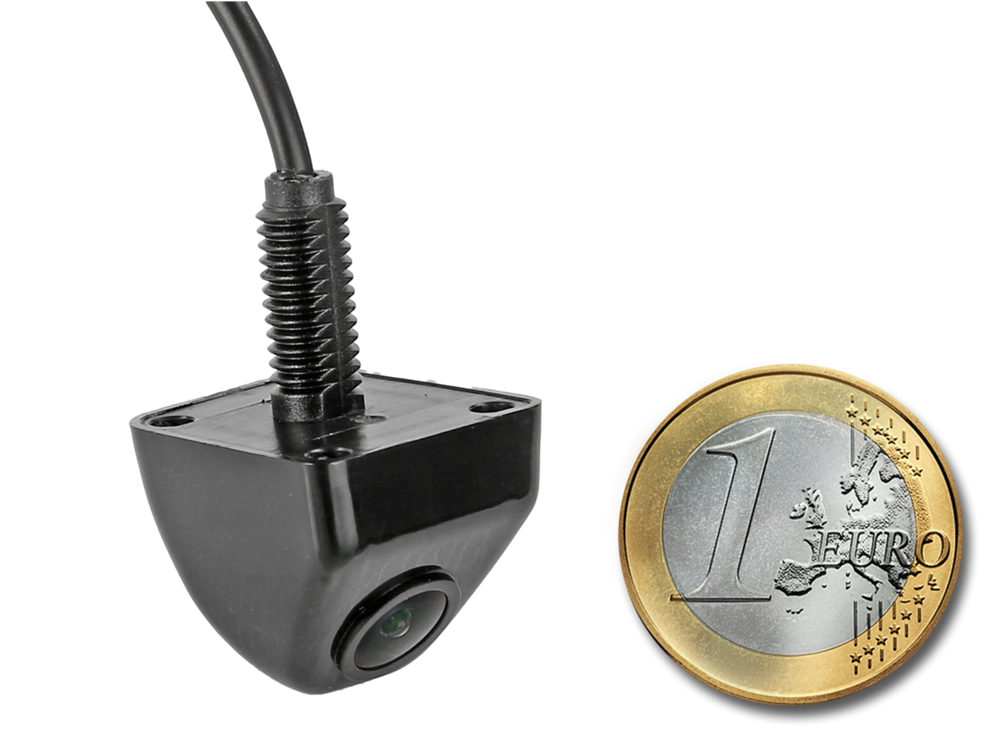

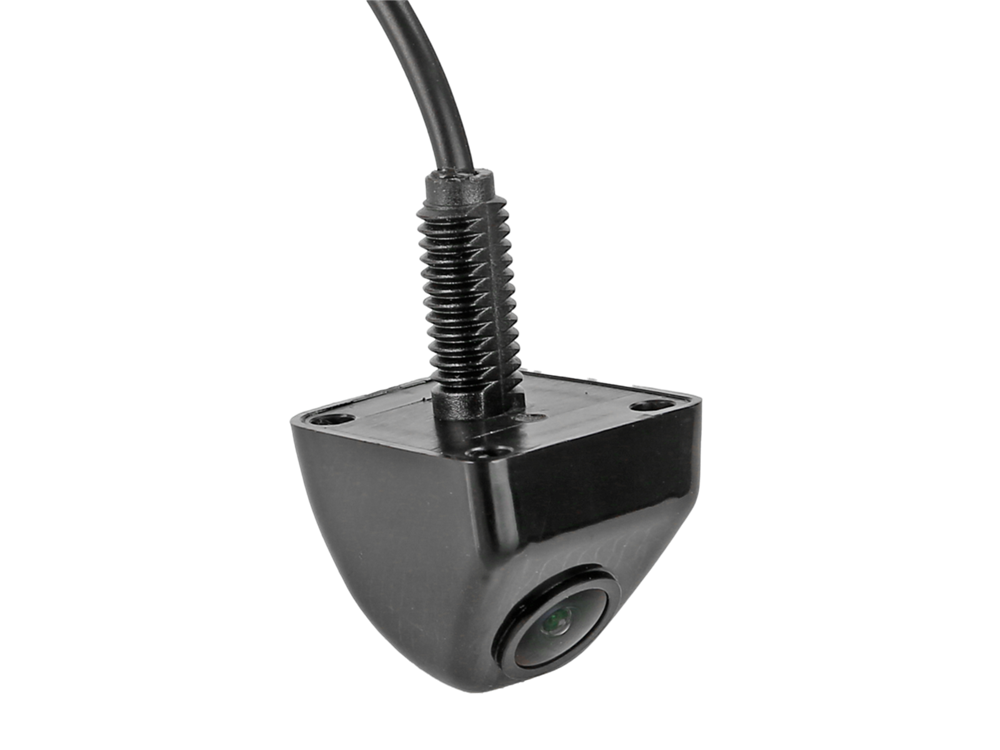

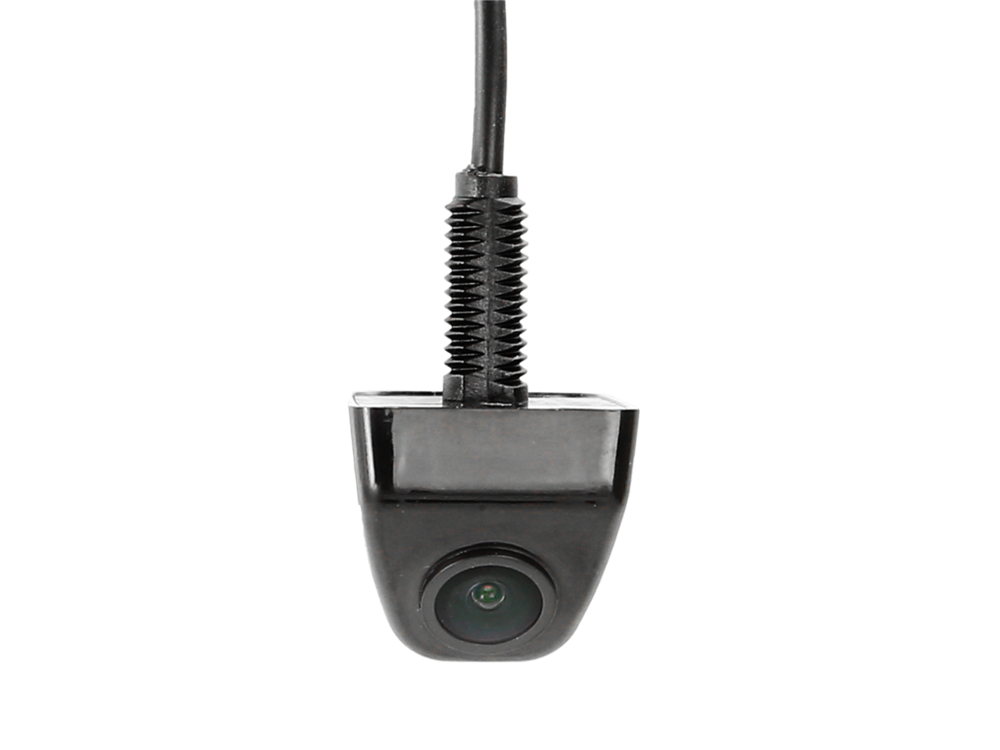

ACV UNIVERSAL MINI BAK KAMERA TIL UNDERBYGNING

Rear view camera universal

Design: foursquared
Installation: sub-construction

extremely small design

Note:

all acv cameras are suitable for +12V continuous operation

camera operating voltage: +3V
connection without voltage converter damages the camera

connection:
red +12V switched load-stable fused
black ground car body direct

Product characteristic camera:

Design: plastic
Color: black
Extras: small design
Image sensor: 1/4" CMOS
TV system: NTSC
Lens: 1,9mm / F 2.0
Min.Lux: 0.1 Lux
Resolution: 980 x 480 TV lines
Lens angle: diagonal 170°
View angle: horizontal 120° vertical 85° + 5°
IP Rating: IP 68
Terminal: 4-pin mini-plug ( male ) 5,2 mm
Power supply: +12Volt DC + 10%
Current consumption: 60mA
Operating temperature: -20°C - 70°C
Storage temperature: -40°C - 80°C
Measurements: L / B / H / 25,5mm / 28mm / 23,5mm

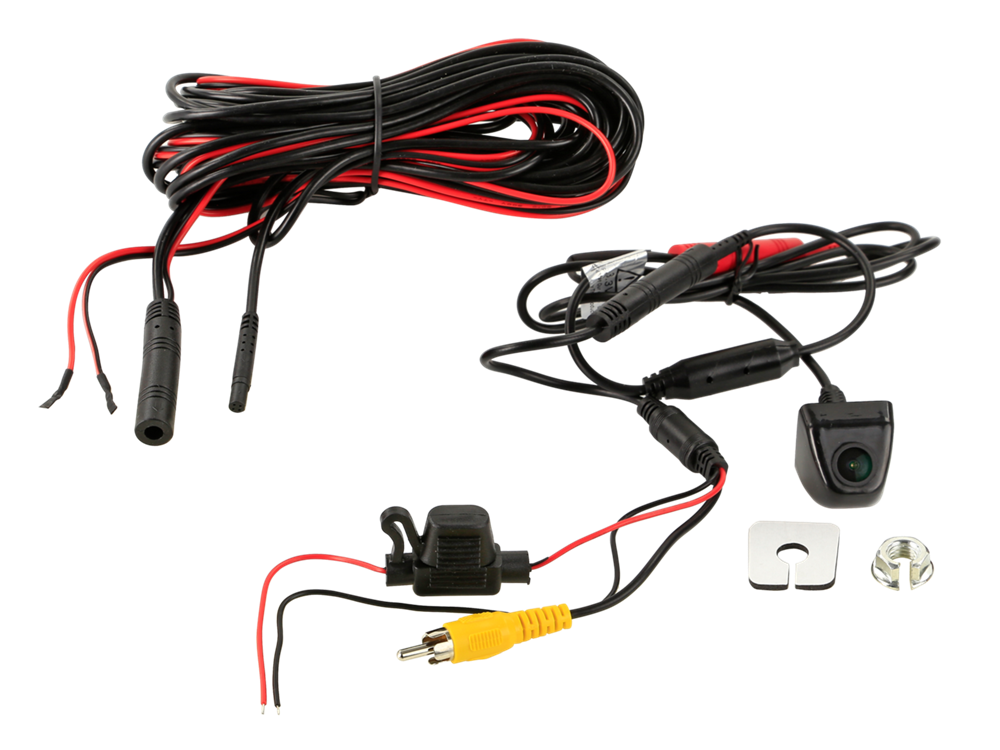

Pigtail at the camera:

1 Meter cable with 4-pin mini plug (male) 5,2 mm incl. 1 jumper

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light and inlay cable to connect at the power from the device

4-pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
