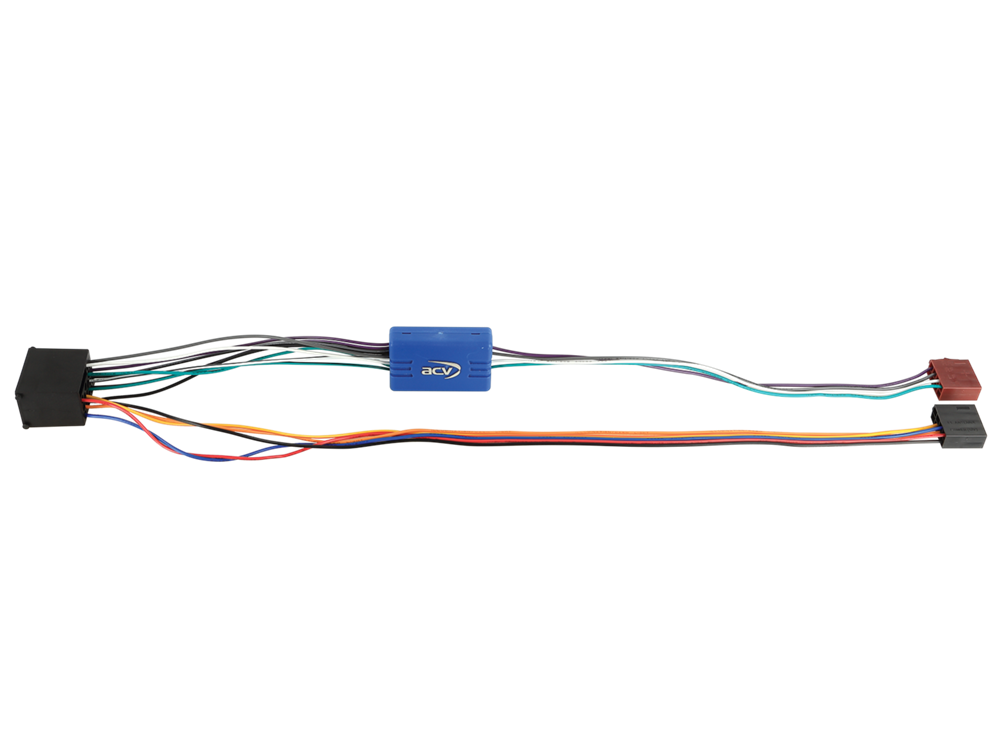

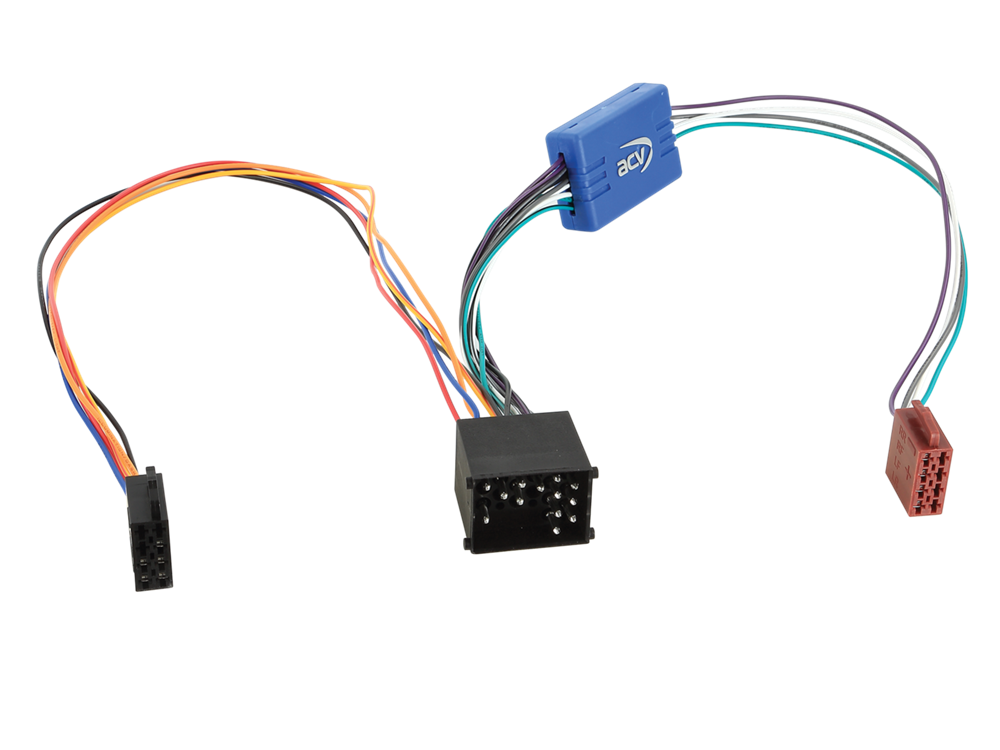

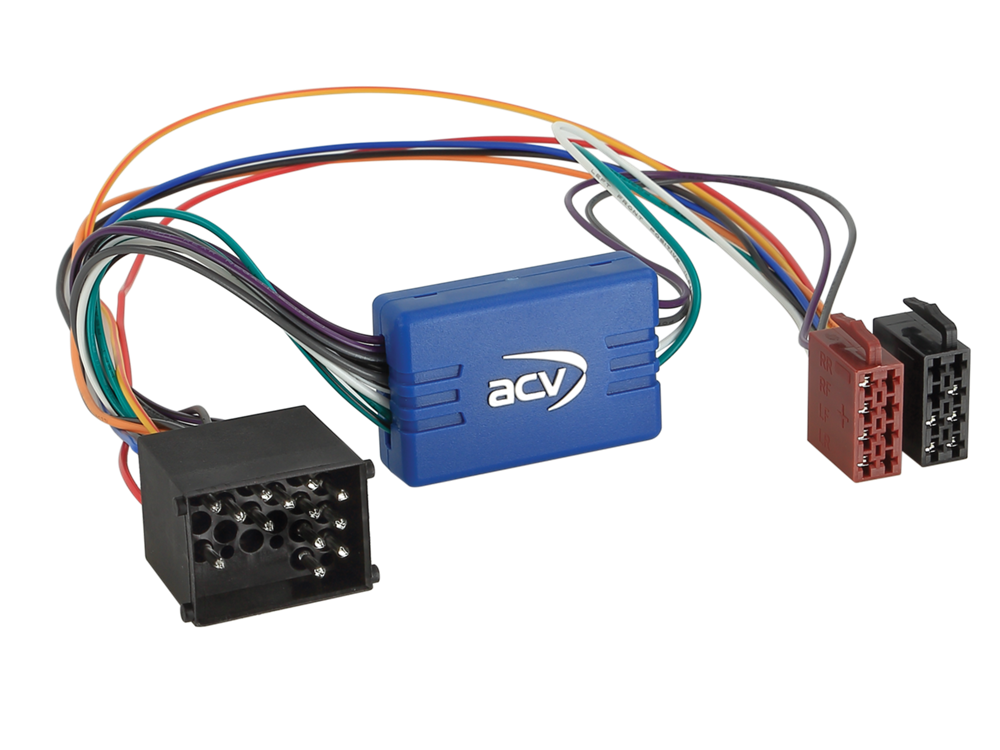

AKTIV SYSTEM INTERFACE BMW/LAND ROVER/ ROVER 17 PIN

Active system adapter BMW / Landrover / Rover

Active system adapters maintain the function of an OEM amplified system.

This allows the connection of an aftermarket HU to an OEM amplified system while retaining the OEM amplifier and connected speakers by adapting, matching or converting the output signals of the signal source to the signal input of the OEM amplifier.

Depending on the vehicle and the installed OEM amplified system, various functions such as fader, sound or subwoofer settings might be lost.

In individual cases, depending on the OEM system and the retrofit radio, increased noise or a switch-on or switch-off noise may occur.

Check functionality before final assembly.

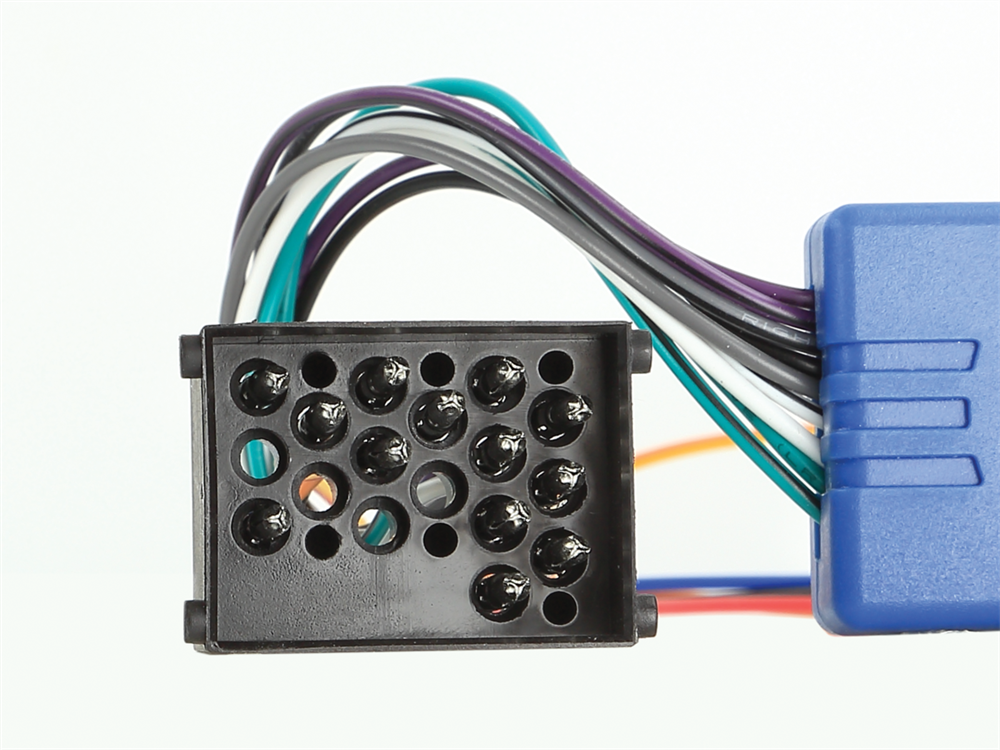

connector: 17 Pin BMW round plug > ISO plug

input power 4 x 20 Watt max.

Vehicle applictation:

BMW*
BMW 3er (E36) 09/1990 - 08/2000
BMW 3er (E46) 07/1998 - 02/2007
BMW 5er (E39) 01/1996 - 05/2004
BMW 7er (E38) 09/1994 - 09/2001
BMW X5 (E53) 03/2000 - 10/2003
BMW Z3 (E36/7) 01/1996 - 10/2000
BMW Z3 (E36/7) 10/2000 - 12/2002
BMW Z3 (E36/7C) 09/1998 - 10/2000
BMW Z3 (E36/7C) 10/2000 - 12/2002
BMW Z8 (E52) 04/2000 - 07/2003

Landrover**
Landrover Defender I (LD) 11/2002 - 05/2007
Landrover Discovery II (LT) 10/1998 - 07/2002
Landrover Discovery II (LT) 06/2002 - 07/2004
Landrover Freelander I (LN/LNJ) 07/1998 - 01/2003

Rover***
Rover 25 1999 - 2005
Rover 45 1999 - 2005
Rover 75 1998 - 2005

*vehicles without DSP OEM amplified system I Bus controlled
*vehicles with 40Pin Quadlock connector and OEM amplified system > item: 13-1024-50
**vehicles with BMW OEM cassette player / Visteon OEM CD HU
**vehicles with Alpine OEM cassette player Becker OEM Sat Nav > Item: 13-1190-50
***vehicles with ISO plug and OEM amplified system > item: 13-1190-50
